Manufacturer: TLC Electronic
Mfr. Part #: TRC025-5
Part Number: C506894
Package: Plugin,P=5.1mm,L=3.5mm

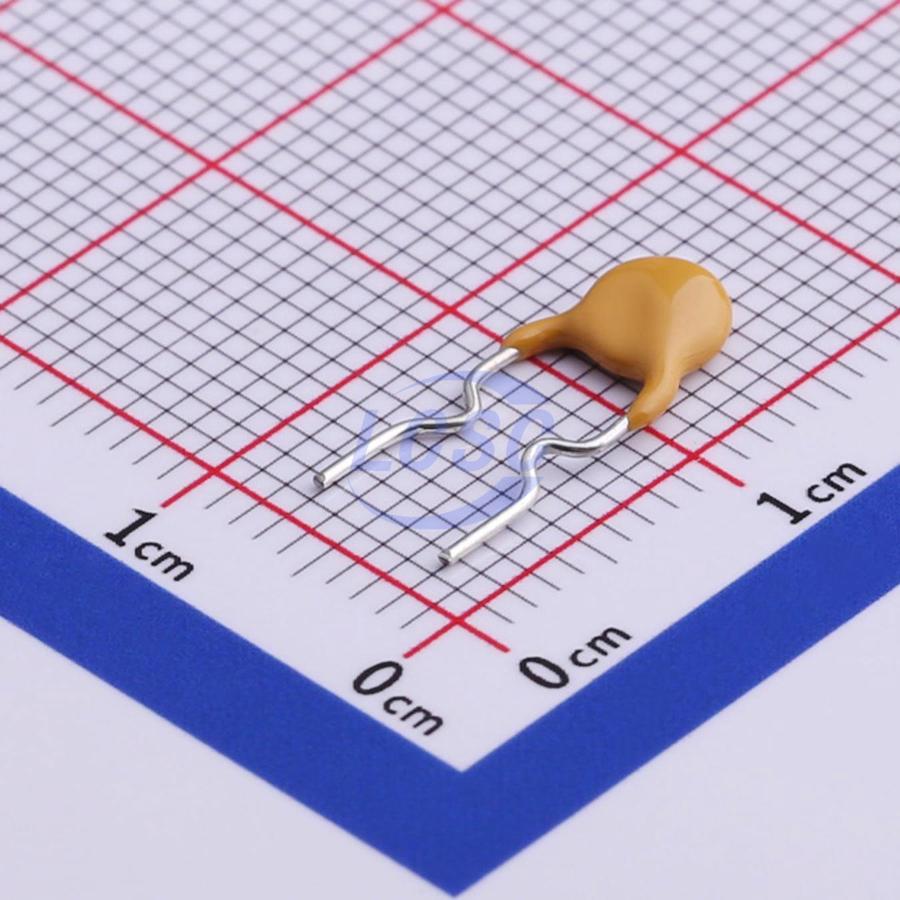

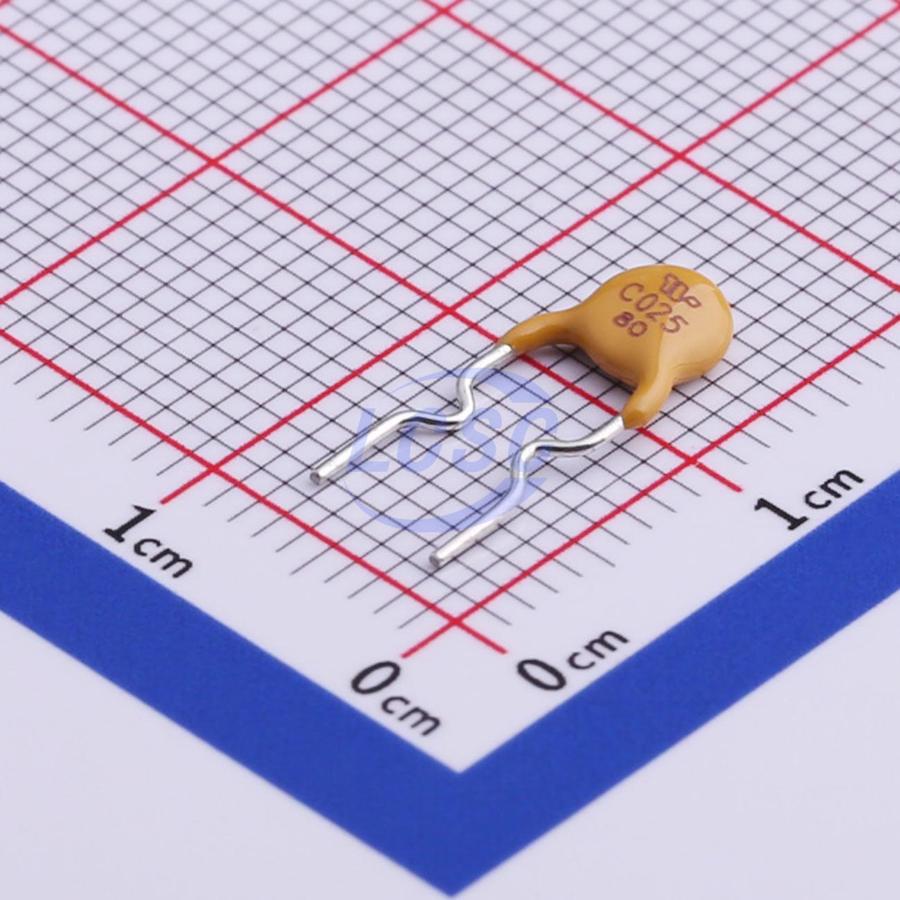

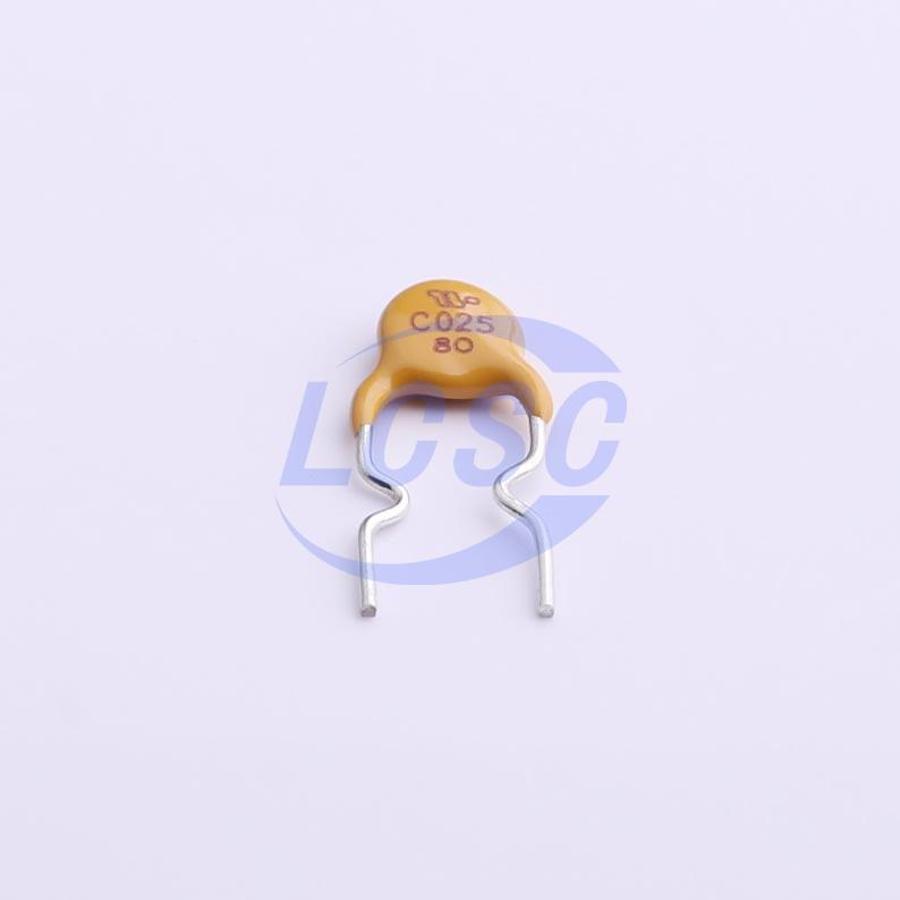

Description: 60V 250mA 40A 500mA Plugin,P=5.1mm,L=3.5mm Resettable Fuses ROHS
Delivers By: Thursday, March 19, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
TLC Electronic
Package
Plugin,P=5.1mm,L=3.5mm
Category
Circuit Protection/Resettable Fuses
Voltage - Max
60V
Hold Current
250mA
Current - Max
40A
Power Dissipation
450mW
Operating Temperature
-40℃~+85℃
Trip Current
500mA
Resistance - Initial (Ri) (Min)
900mΩ
Time to Trip(Max)
2.5s
Resistance - Post Trip (R1) (Max)
1.95Ω
Additional Information
Minimum Qty: 10
Multiple : 10
Standard Packaging: 1000/Piece
Related Resources
- Datasheet
- EasyEDA Model
Better price for more quantity?
