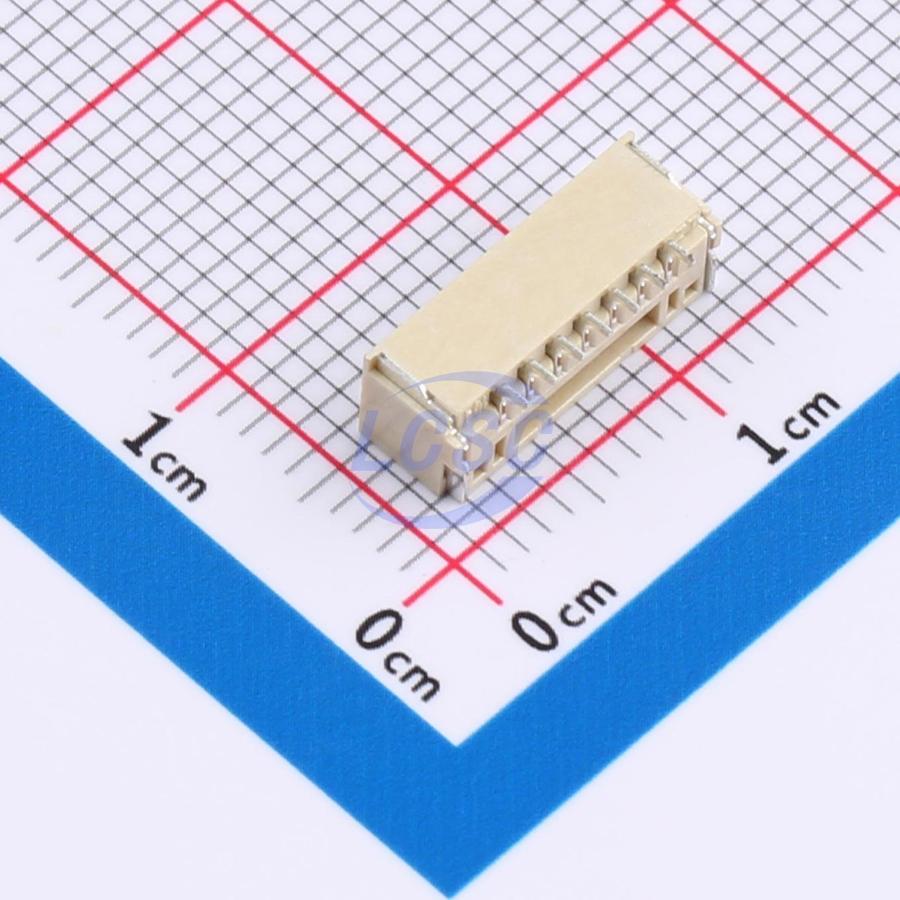

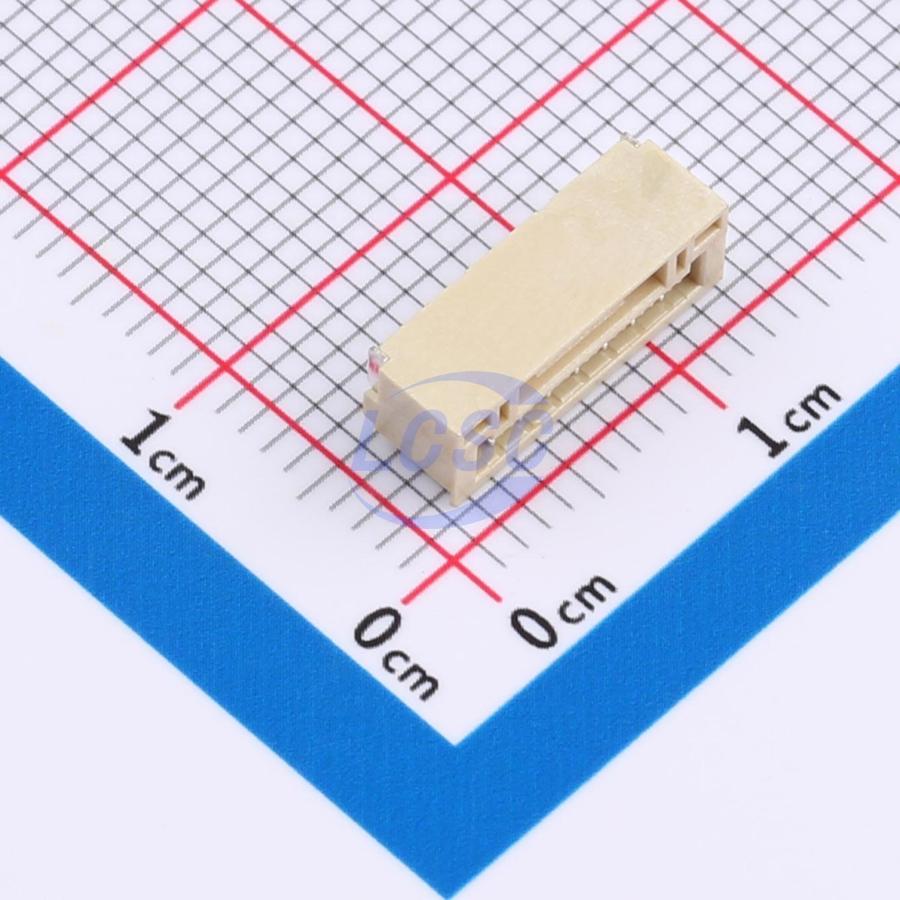

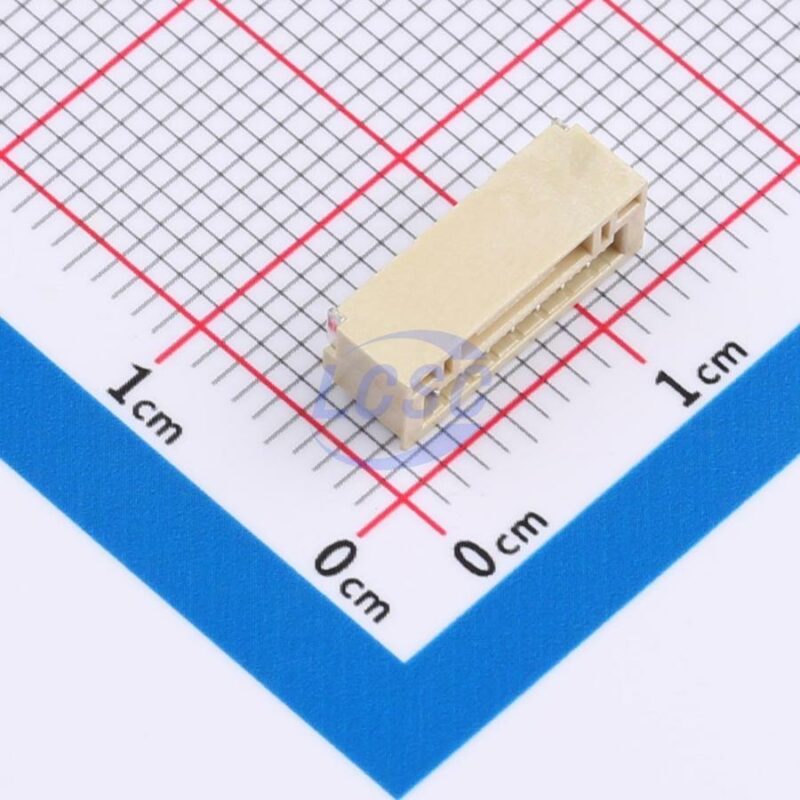

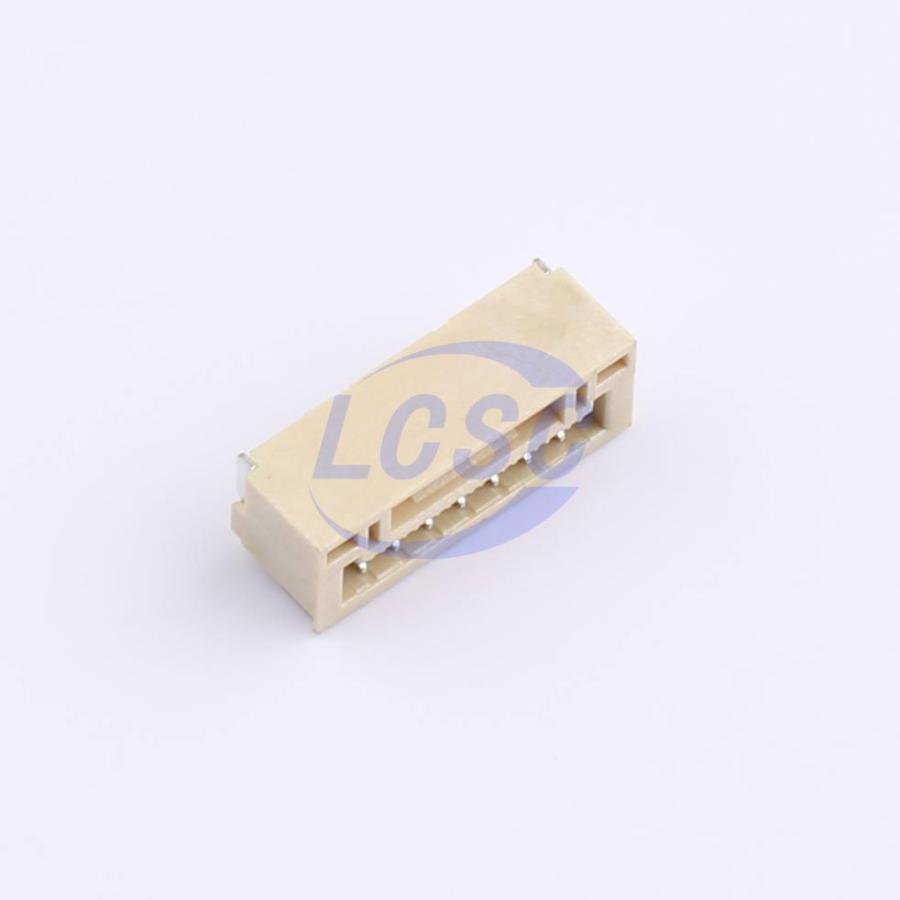

Manufacturer: Bossie
Mfr. Part #: BX-GH1.25-7PWT
Part Number: C18077723
Package: SMD,P=1.25mm,Surface Mount,Right Angle
Description: 1x7P 7P GH Tin 7 -25℃~+85℃ 1A 1 1.25mm Phosphor Bronze Surface Mount, Right Angle SMD,P=1.25mm,Surface Mount,Right Angle Wire To Board Connector ROHS
📦 6375 in stock
Delivers By: Tuesday, November 4, 2025 *
6375 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹10.90
5 - 49 Pieces
₹10.90
(0% off)
50 - 149 Pieces
₹9.92
(8% off)
150 - 999 Pieces
₹9.43
(13% off)
1,000 - 1,999 Pieces
₹9.06
(16% off)
2,000 - 4,999 Pieces
₹8.76
(19% off)
5,000+ Pieces
₹8.62
(20% off)
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=1.25mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5mm
Pins Structure
1x7P
Number of Pins
7P
Reference Series
GH
Contact Plating
Tin
Number of PINs Per Row
7
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1.25mm
Voltage Rating
125V
Contact Material
Phosphor Bronze
X-Length of Bottom Edge on Board (Spacing Line)
12mm
Z-Height of the Board
4.35mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
