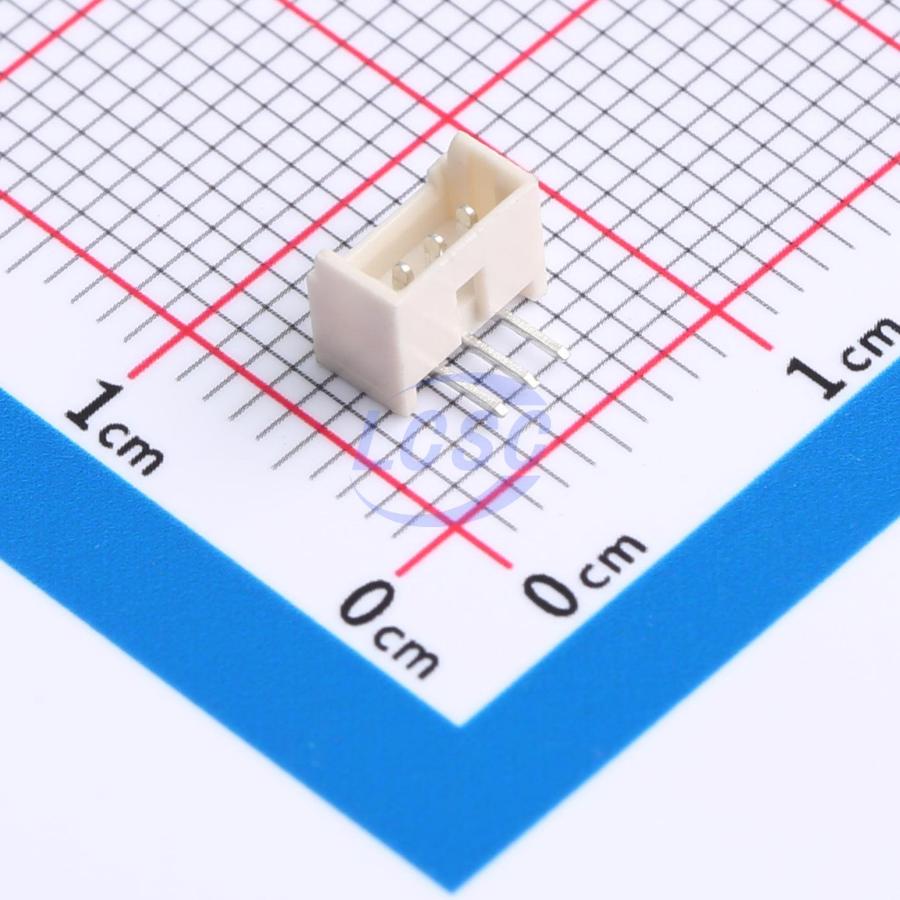

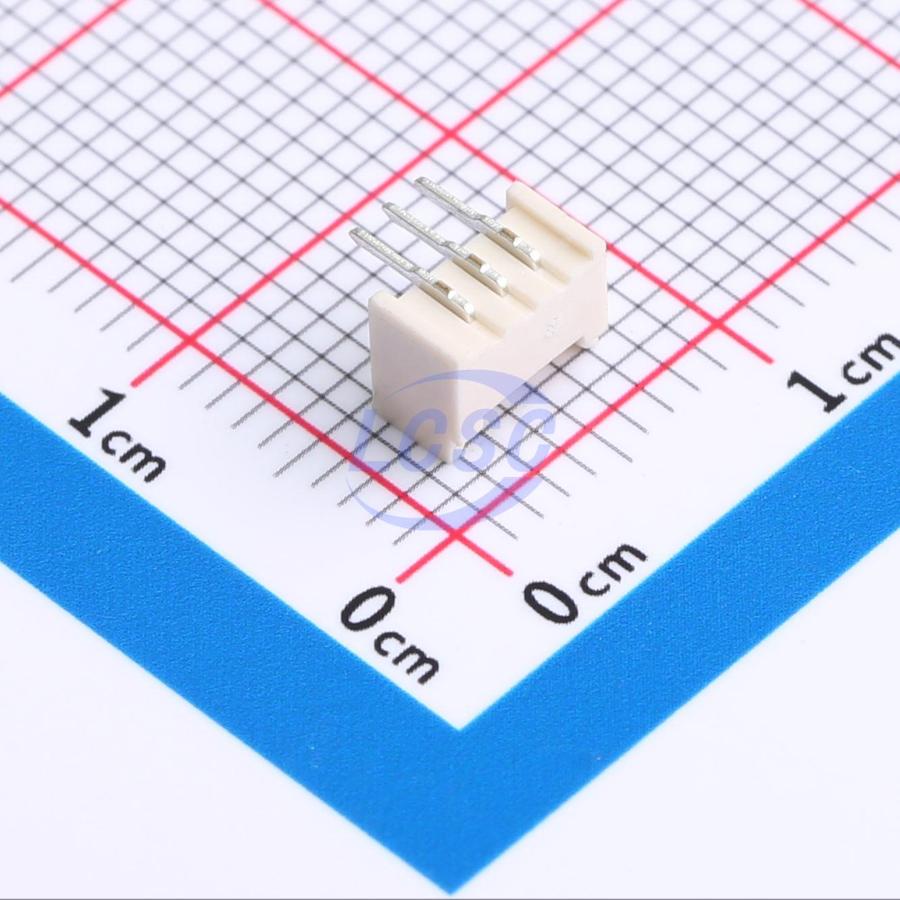

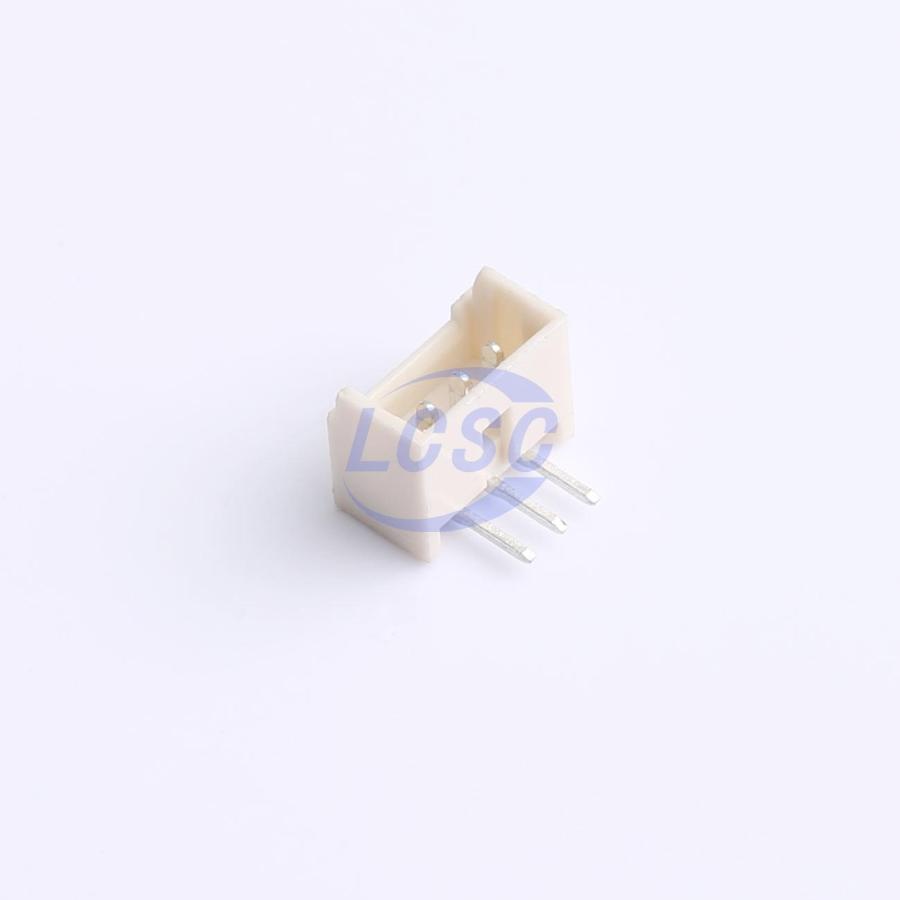

Manufacturer: Bossie
Mfr. Part #: BX-MX1.25-3PWZ
Part Number: C18077928
Package: Through Hole,Right Angle,P=1.25mm
Description: 1x3P 3P PicoBlade(MX 1.25) Tin 3 -25℃~+85℃ 1A 1 1.25mm Brass Right Angle Through Hole,Right Angle,P=1.25mm Wire To Board Connector ROHS
📦 18160 in stock
Delivers By: Wednesday, November 5, 2025 *
18160 in stock
×
Total:
Bulk Pricing
1 - 19
Pieces
₹2.82
20 - 199 Pieces
₹2.82
(0% off)
200 - 599 Pieces
₹2.32
(17% off)
600 - 1,999 Pieces
₹2.04
(27% off)
2,000 - 9,999 Pieces
₹1.87
(33% off)
10,000 - 19,999 Pieces
₹1.73
(38% off)
20,000+ Pieces
₹1.65
(41% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
Through Hole,Right Angle,P=1.25mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
4.6mm
Pins Structure
1x3P
Number of Pins
3P
Reference Series
PicoBlade(MX 1.25)
Contact Plating
Tin
Number of PINs Per Row
3
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
PA
Color
White
Number of Rows
1
Pitch
1.25mm
Voltage Rating
125V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
5.65mm
Z-Height of the Board
3.3mm
Mounting Type
Right Angle
Additional Information
Minimum Qty: 20
Multiple : 20
Standard Packaging: 2000/Piece
