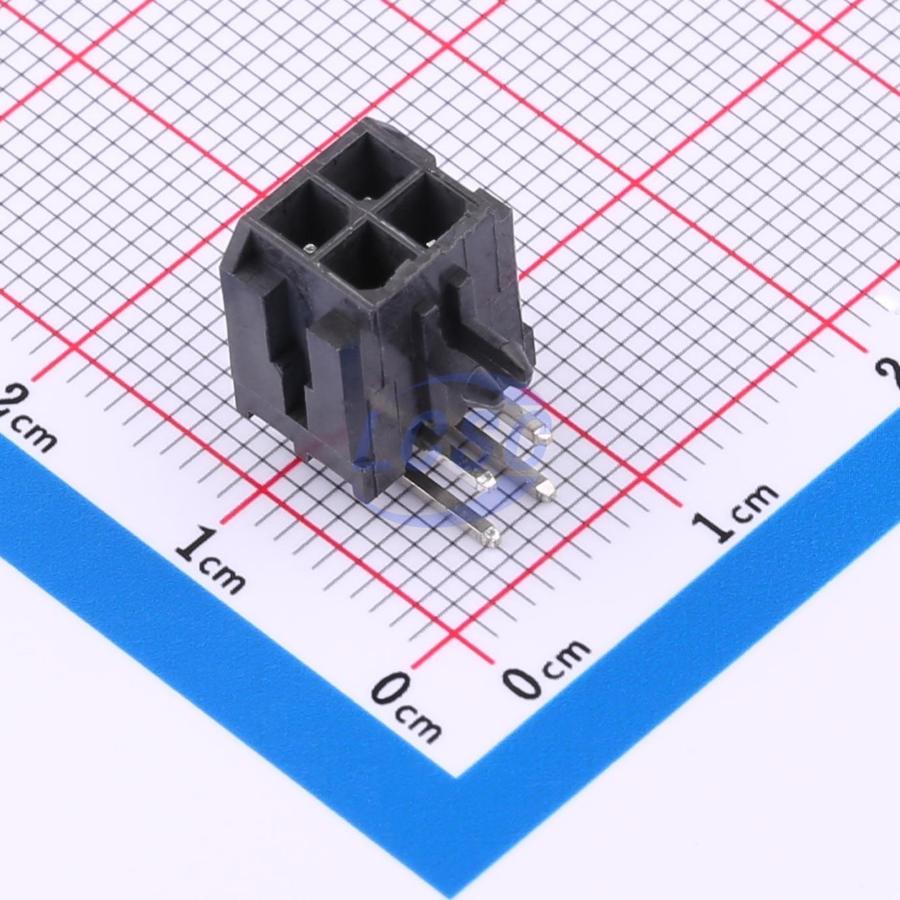

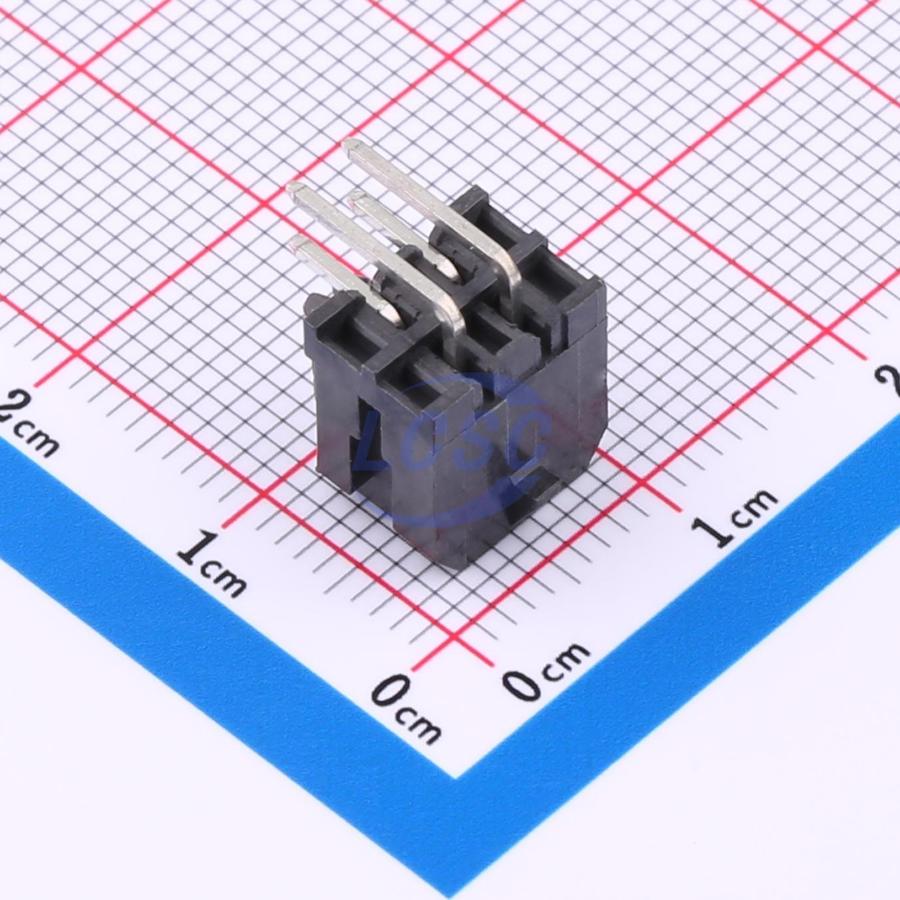

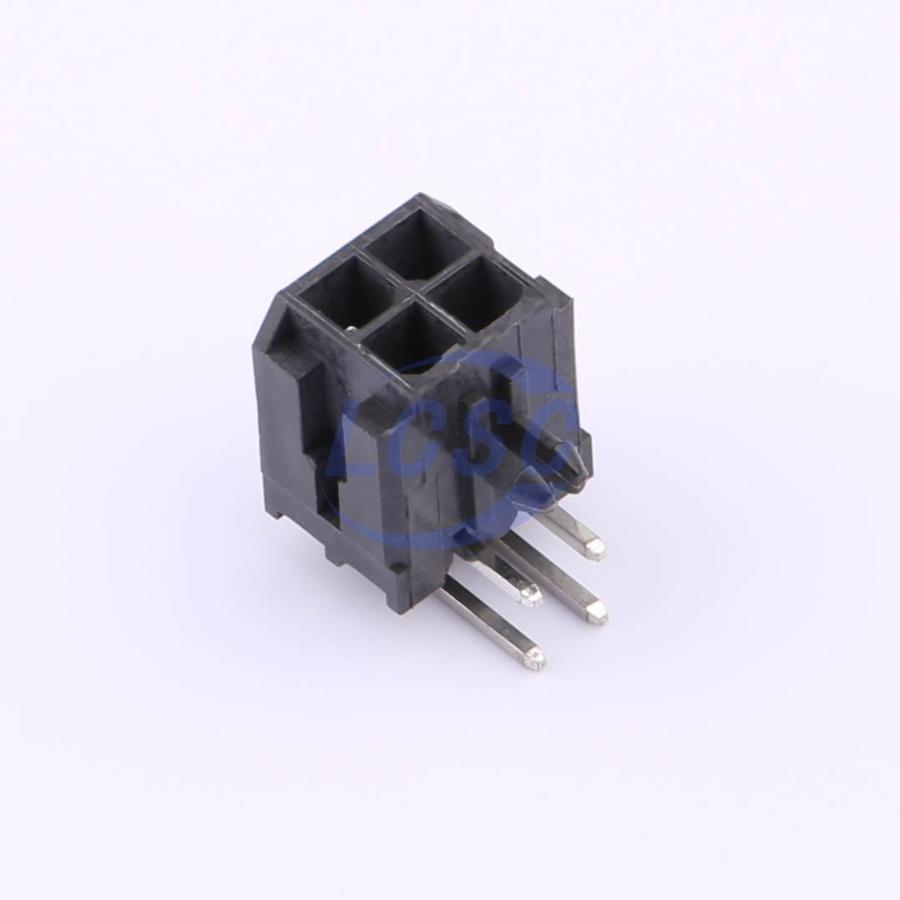

Manufacturer: Bossie
Mfr. Part #: BX-MX3.0-2-2PWZ
Part Number: C18078294
Package: Through Hole,Right Angle,P=3mm
Description: 2x2P 4P Micro-Fit(MX 3.0) Tin 3mm 2 -25℃~+85℃ 5A 2 3mm Copper Alloy Right Angle Through Hole,Right Angle,P=3mm Wire To Board Connector ROHS
📦 2590 in stock
Delivers By: Wednesday, November 5, 2025 *
2590 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹17.98
5 - 49 Pieces
₹17.98
(0% off)
50 - 149 Pieces
₹15.39
(14% off)
150 - 999 Pieces
₹14.13
(21% off)
1,000 - 1,999 Pieces
₹11.64
(35% off)
2,000 - 4,999 Pieces
₹10.88
(39% off)
5,000+ Pieces
₹10.48
(41% off)
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Bossie
Package
Through Hole,Right Angle,P=3mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
11.8mm
Pins Structure
2x2P
Number of Pins
4P
Reference Series
Micro-Fit(MX 3.0)
Contact Plating
Tin
Row Spacing
3mm
Number of PINs Per Row
2
Operating Temperature
-25℃~+85℃
Current Rating
5A
Plastic Material
PA66
Color
Black
Supplementary Features
Harpoon Contact (Plastic)
Number of Rows
2
Flame Retardant Rating
UL94V-0
Pitch
3mm
Voltage Rating
600V
Contact Material
Copper Alloy
X-Length of Bottom Edge on Board (Spacing Line)
9mm
Z-Height of the Board
8.8mm
Mounting Type
Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
