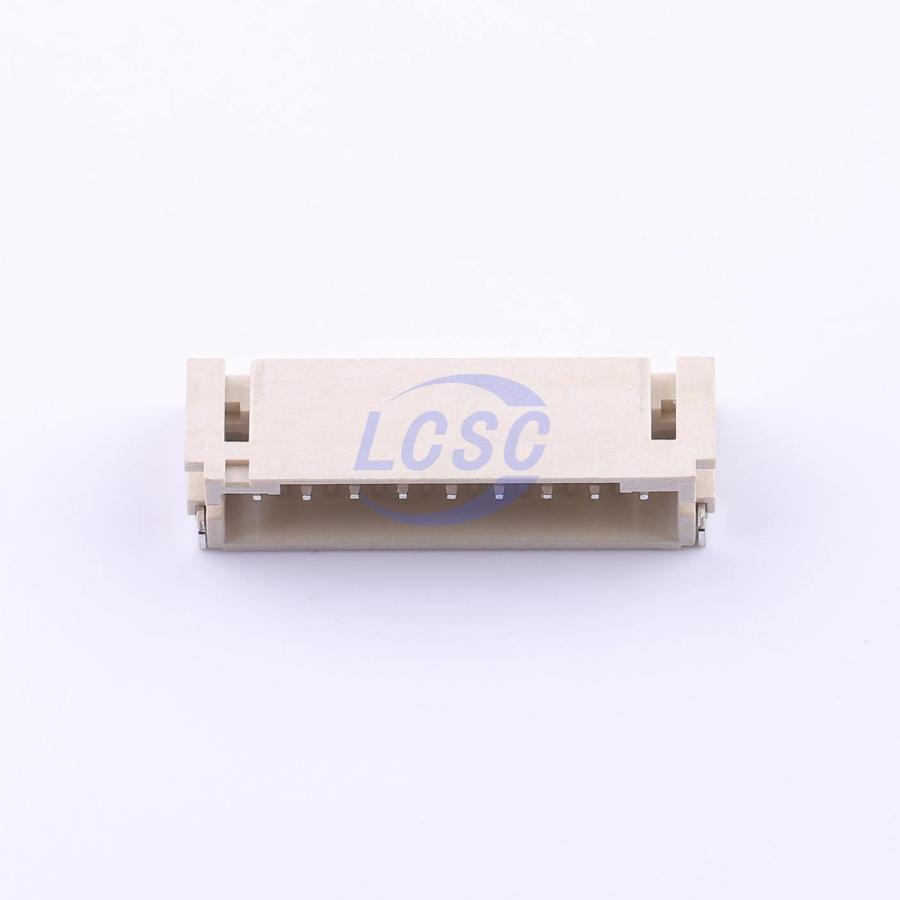

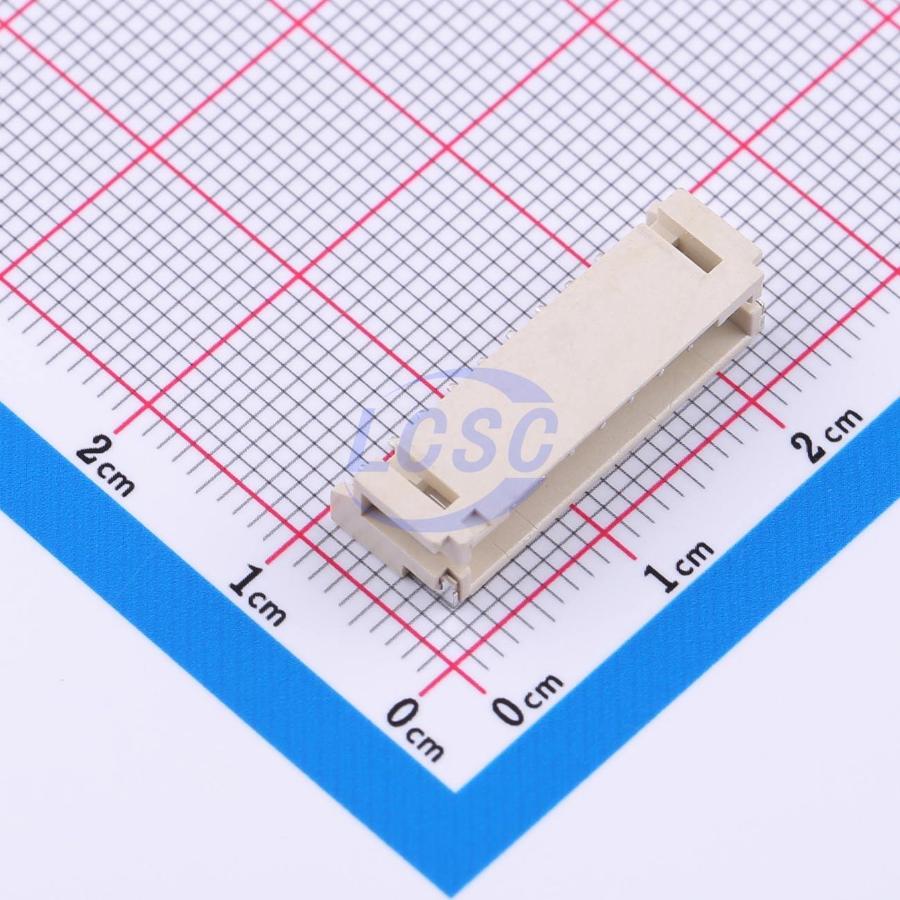

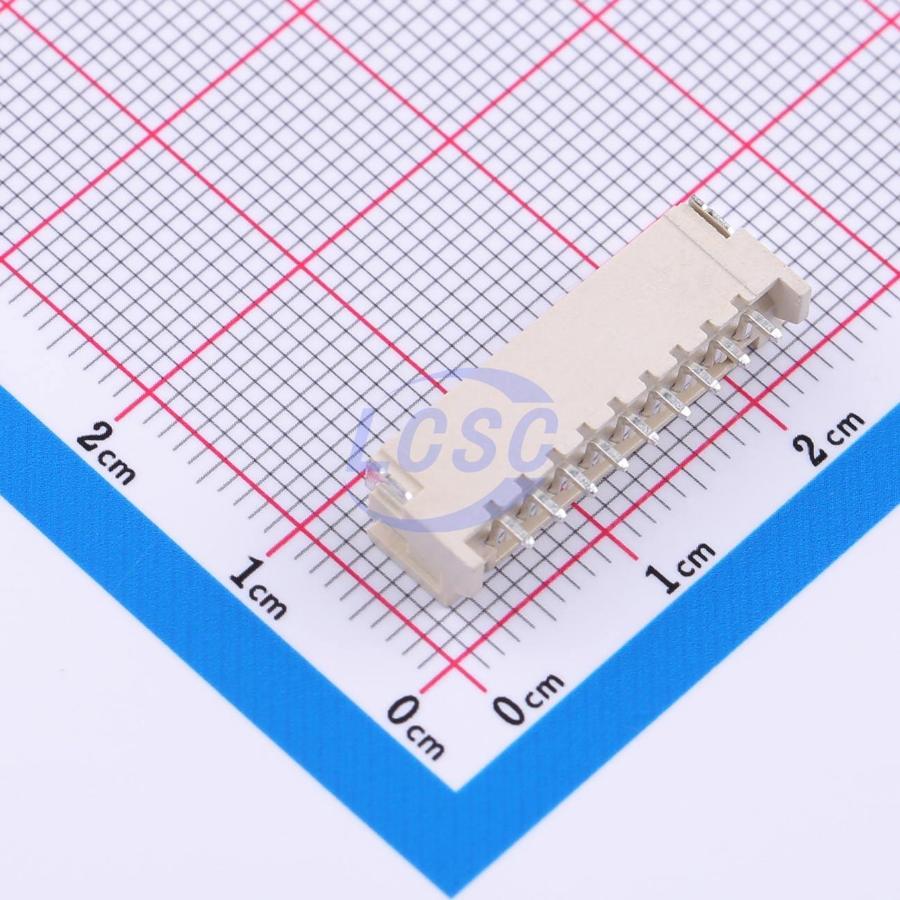

Manufacturer: Bossie
Mfr. Part #: BX-PH2.0-9PWT
Part Number: C18077897
Package: SMD,P=2mm,Surface Mount,Right Angle
Description: 1x9P 9P PH Tin 9 -25℃~+85℃ 2A 1 2mm Brass Surface Mount, Right Angle SMD,P=2mm,Surface Mount,Right Angle Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=2mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
8.5mm
Pins Structure
1x9P
Number of Pins
9P
Reference Series
PH
Contact Plating
Tin
Number of PINs Per Row
9
Operating Temperature
-25℃~+85℃
Current Rating
2A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
2mm
Voltage Rating
250V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
22mm
Z-Height of the Board
5.6mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
