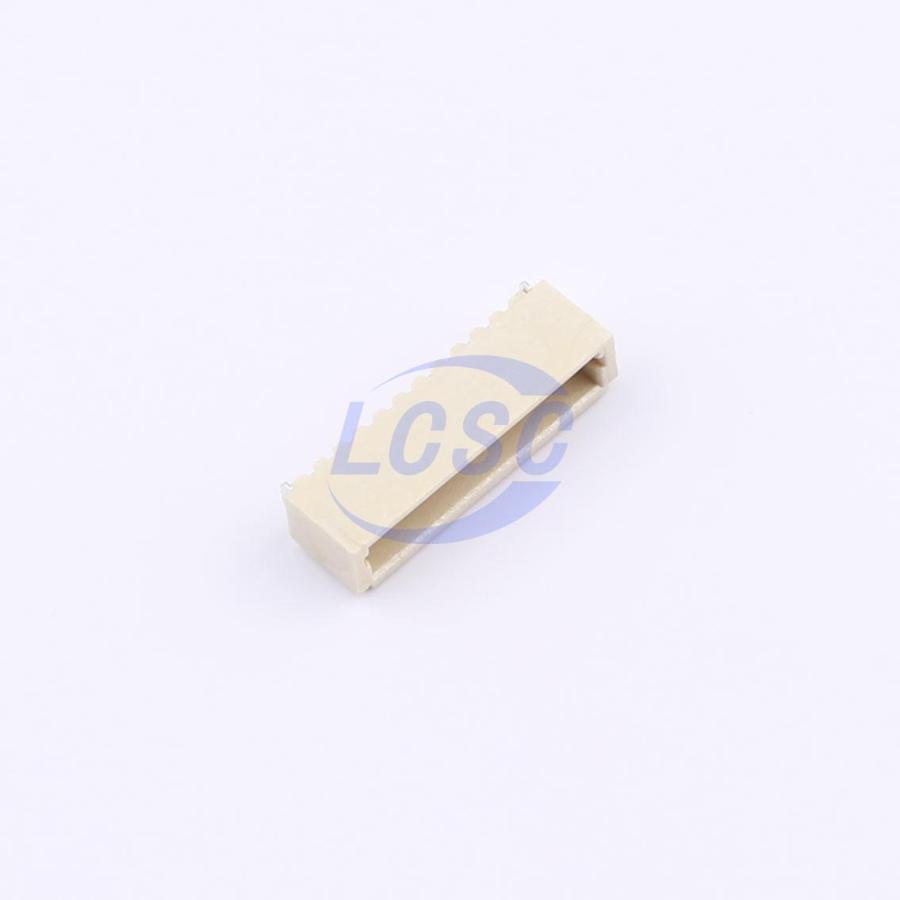

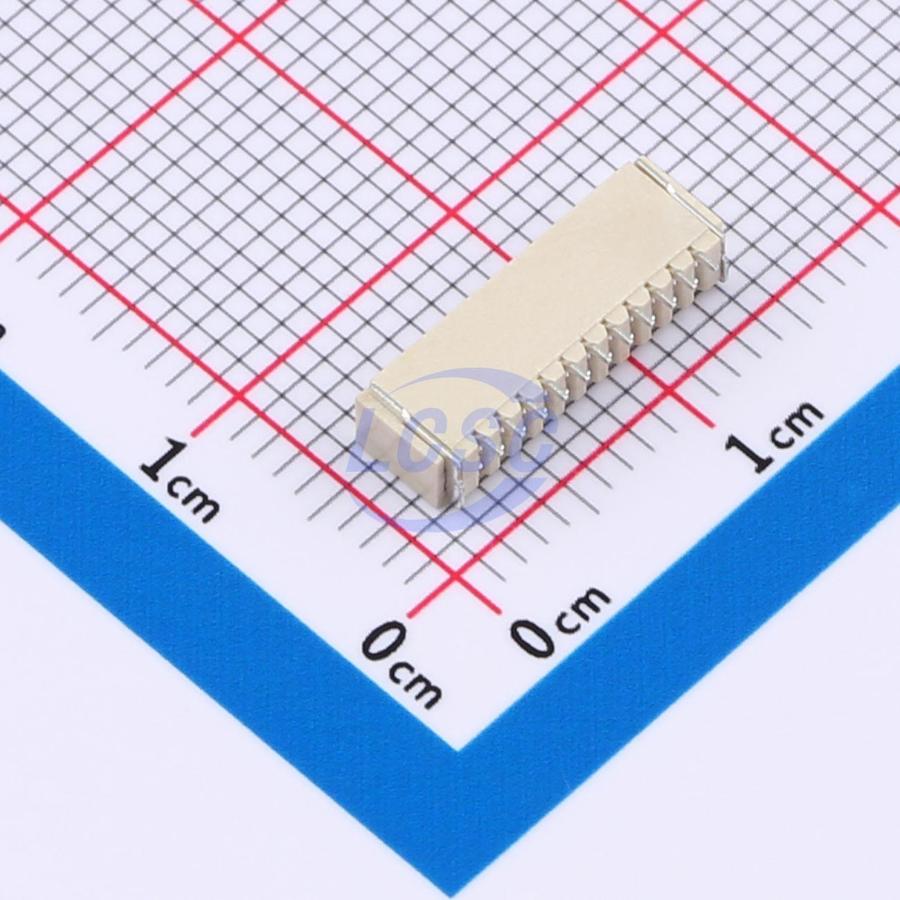

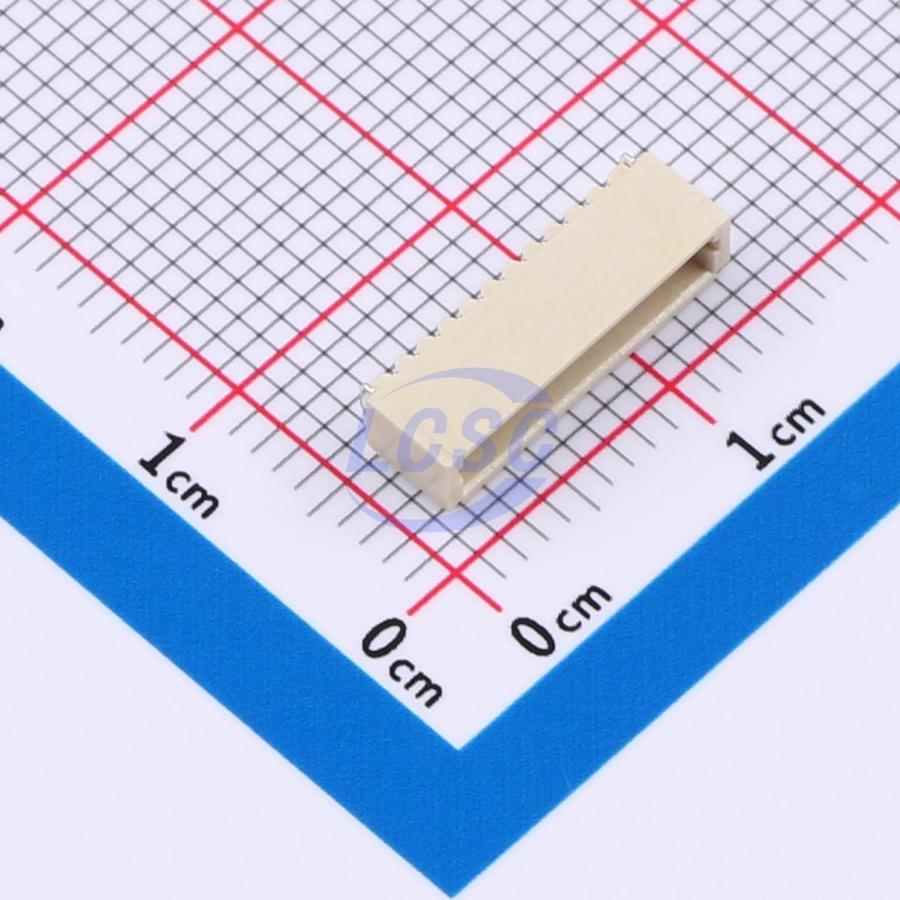

Manufacturer: Bossie
Mfr. Part #: BX-SH1.0-11PWT
Part Number: C22368075
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x11P SH 11P Tin 11 -25℃~+85℃ 1A 1 1mm Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.05mm
Pins Structure
1x11P
Reference Series
SH
Number of Pins
11P
Contact Plating
Tin
Number of PINs Per Row
11
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
13.35mm
Z-Height of the Board
3.15mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
