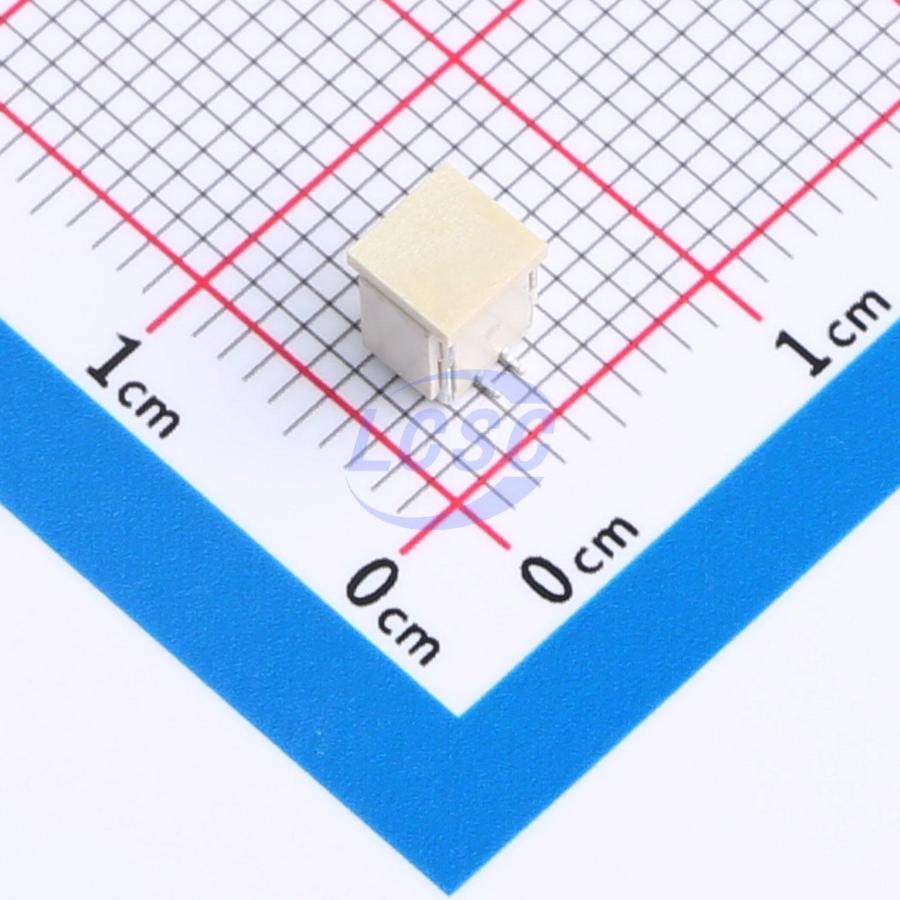

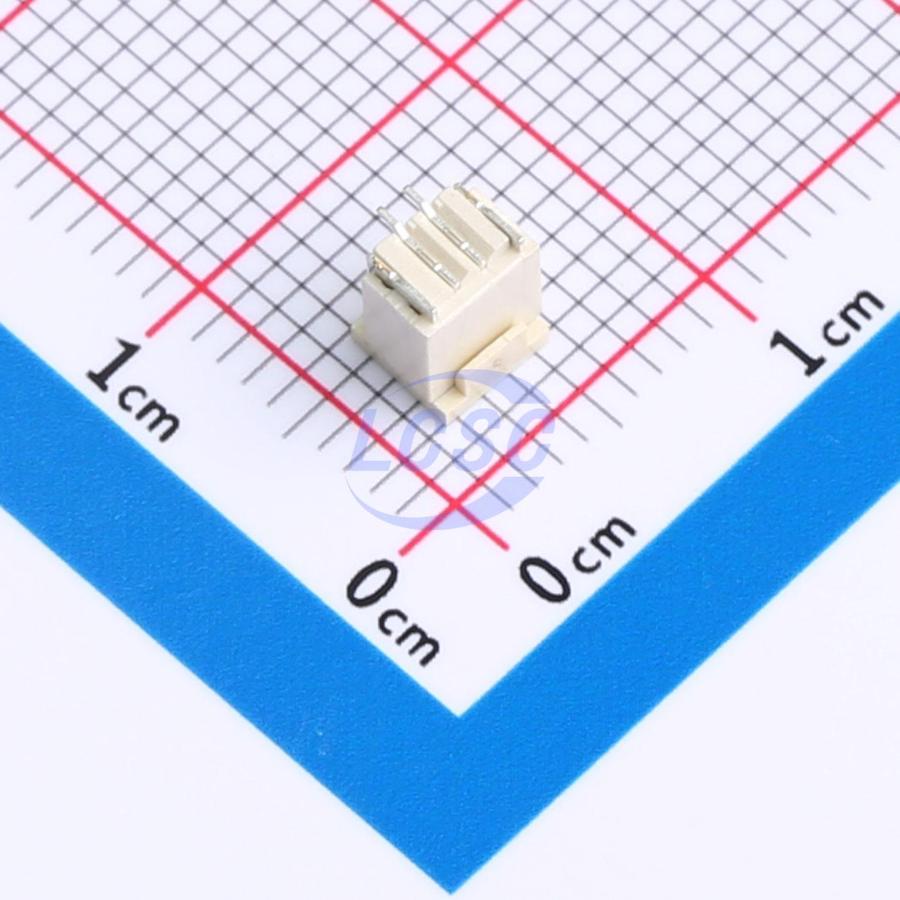

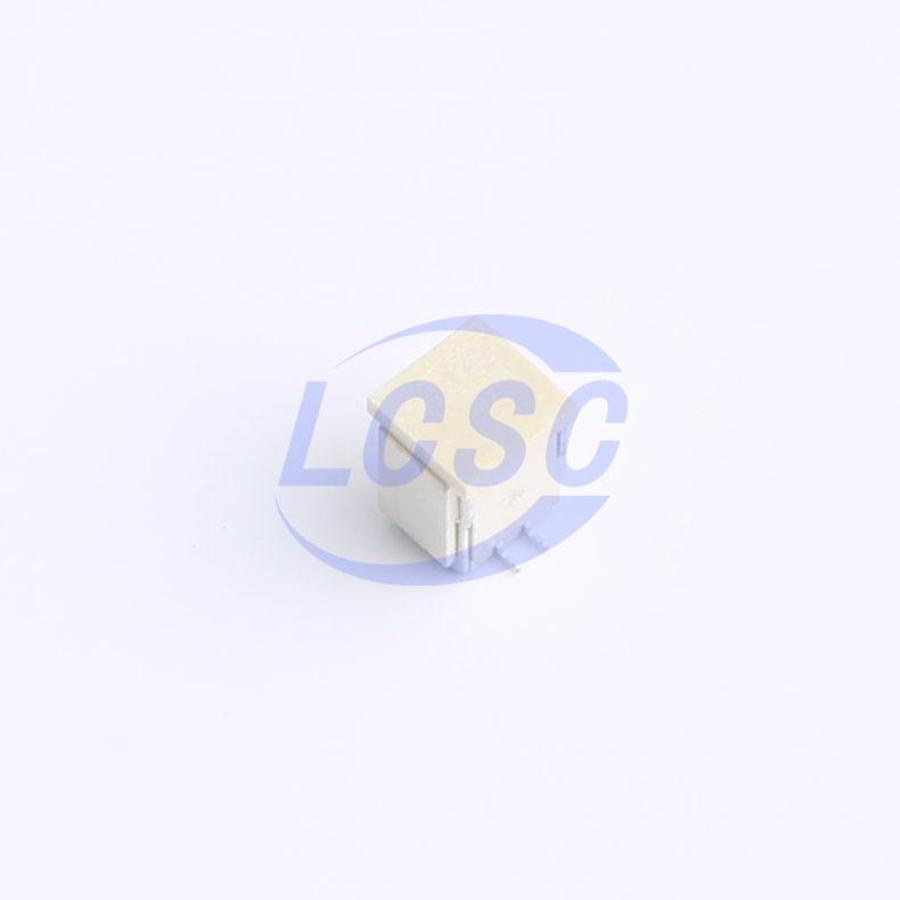

Manufacturer: Bossie
Mfr. Part #: BX-SH1.0-2PLT
Part Number: C18077915
Package: SMD,P=1mm
Description: 1x2P 2P SH Tin 2 -25℃~+85℃ 1A 1 1mm Brass Surface Mount,Vertical SMD,P=1mm Wire To Board Connector ROHS
📦 10695 in stock
Delivers By: Wednesday, November 5, 2025 *
10695 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹6.04
5 - 49 Pieces
₹6.04
(0% off)
50 - 149 Pieces
₹5.51
(8% off)
150 - 1,499 Pieces
₹5.25
(13% off)
1,500 - 2,999 Pieces
₹5.03
(16% off)
3,000 - 4,499 Pieces
₹4.87
(19% off)
4,500+ Pieces
₹4.79
(20% off)
📦 Standard Packaging: 1500/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=1mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
3.74mm
Pins Structure
1x2P
Number of Pins
2P
Reference Series
SH
Contact Plating
Tin
Number of PINs Per Row
2
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
4.35mm
Z-Height of the Board
4.4mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1500/Piece
