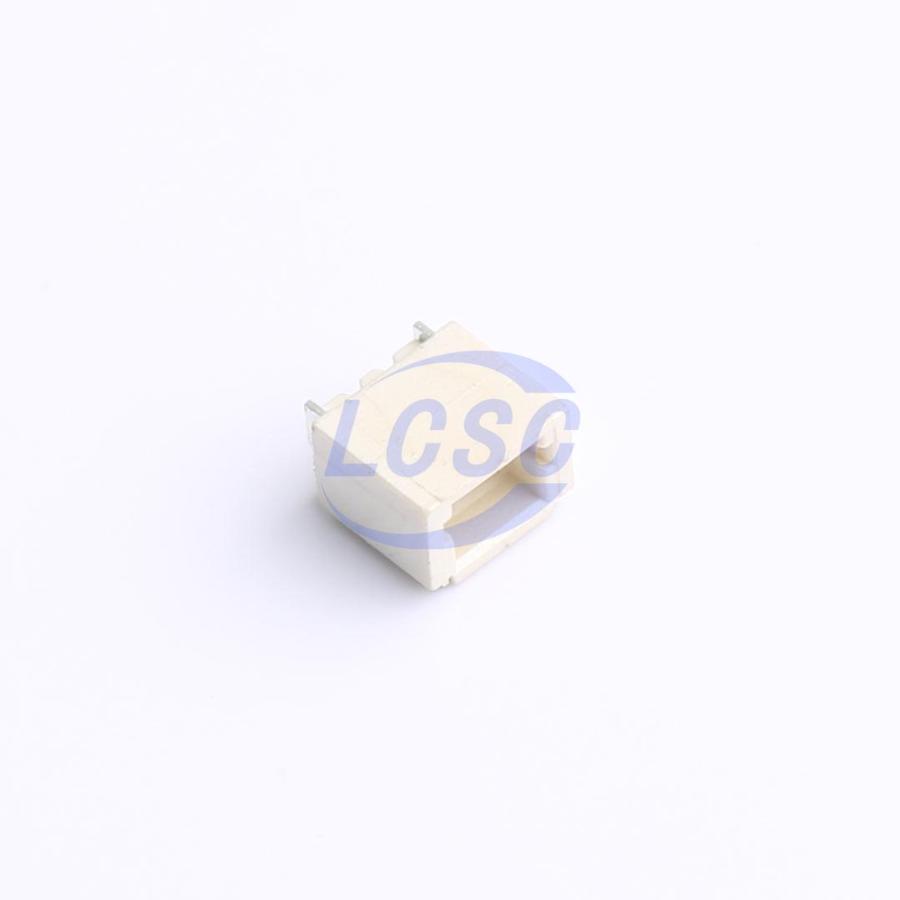

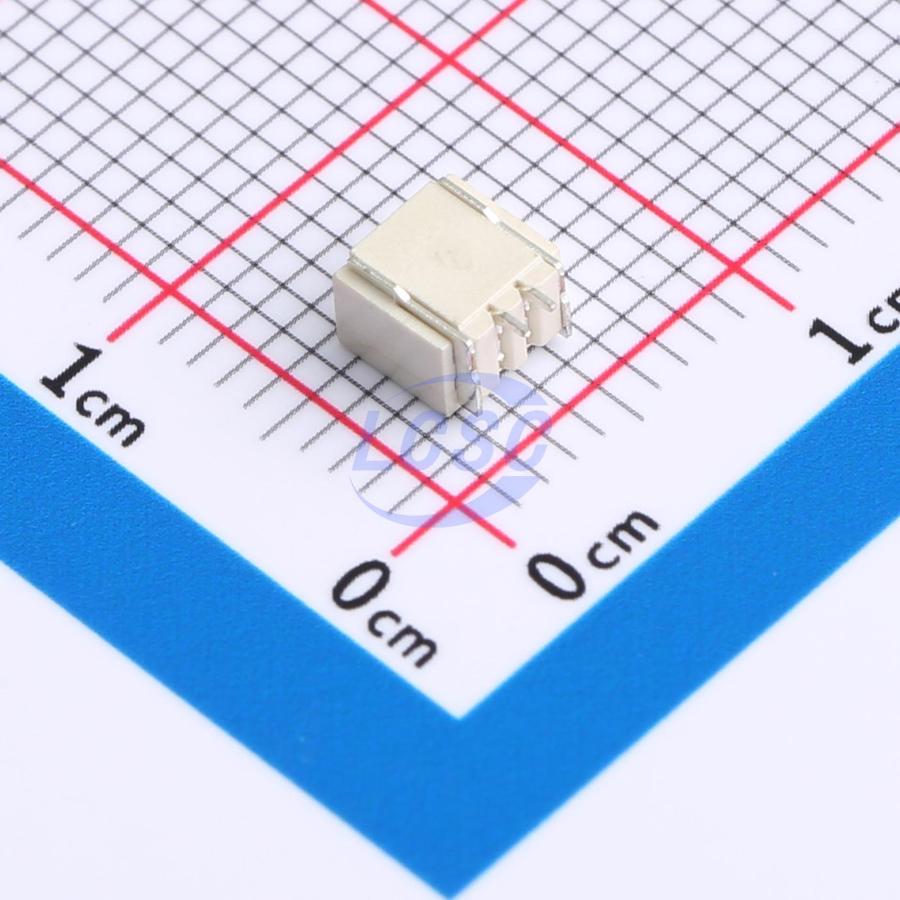

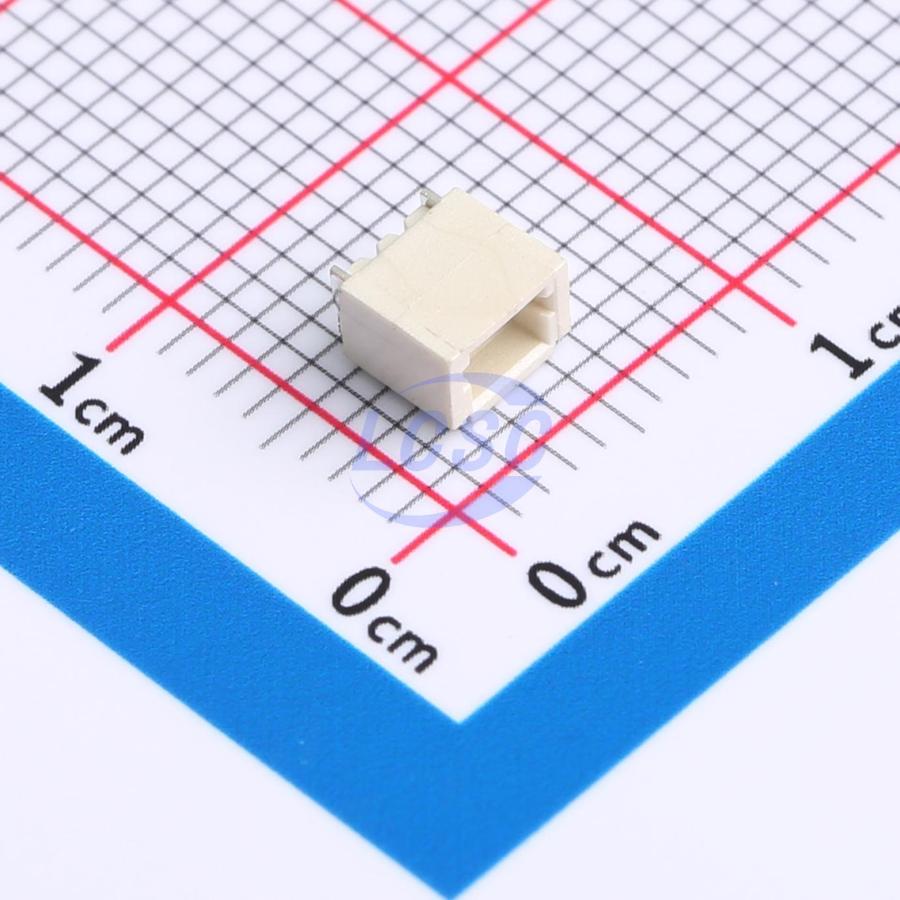

Manufacturer: Bossie
Mfr. Part #: BX-SH1.0-2PWT
Part Number: C18077908
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x2P 2P SH Tin 2 -25℃~+85℃ 1A 1 1mm Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
📦 7110 in stock
Delivers By: Thursday, November 6, 2025 *
7110 in stock
×
Total:
Bulk Pricing
1 - 9
Pieces
₹6.74
10 - 99 Pieces
₹6.74
(0% off)
100 - 299 Pieces
₹5.62
(16% off)
300 - 1,999 Pieces
₹5.04
(25% off)
2,000 - 3,999 Pieces
₹4.64
(31% off)
4,000 - 9,999 Pieces
₹4.30
(36% off)
10,000+ Pieces
₹4.14
(38% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.05mm
Pins Structure
1x2P
Number of Pins
2P
Reference Series
SH
Contact Plating
Tin
Number of PINs Per Row
2
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
4.35mm
Z-Height of the Board
3.15mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 10
Multiple : 10
Standard Packaging: 2000/Piece
