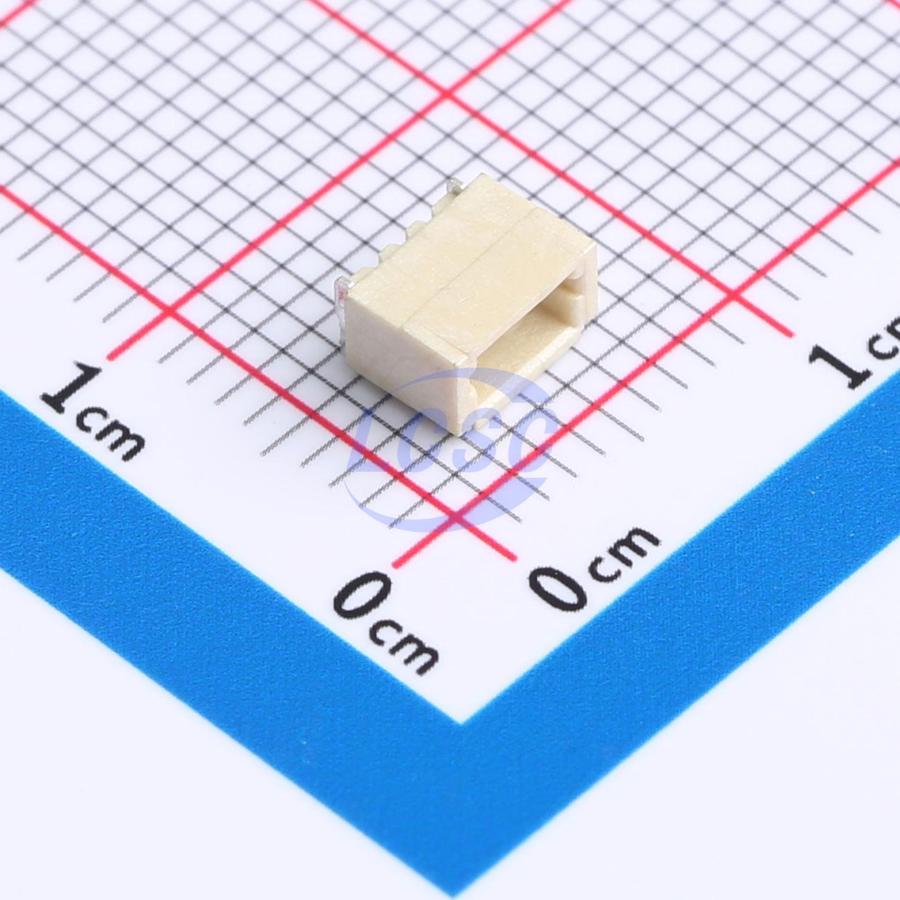

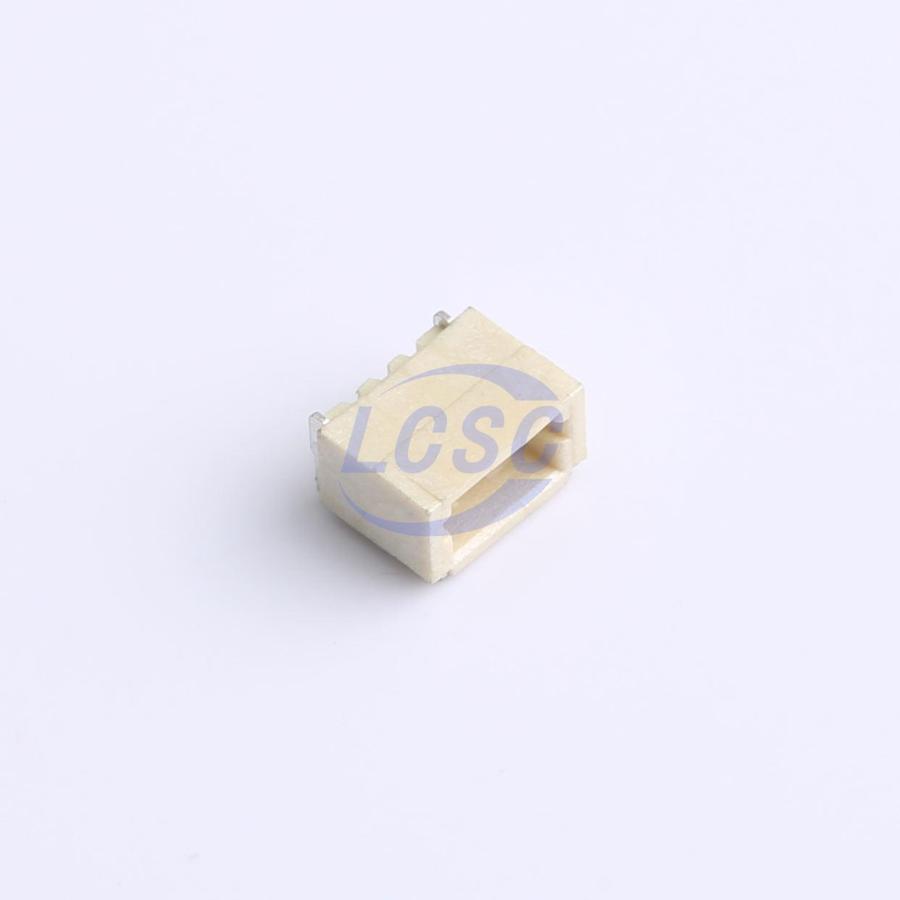

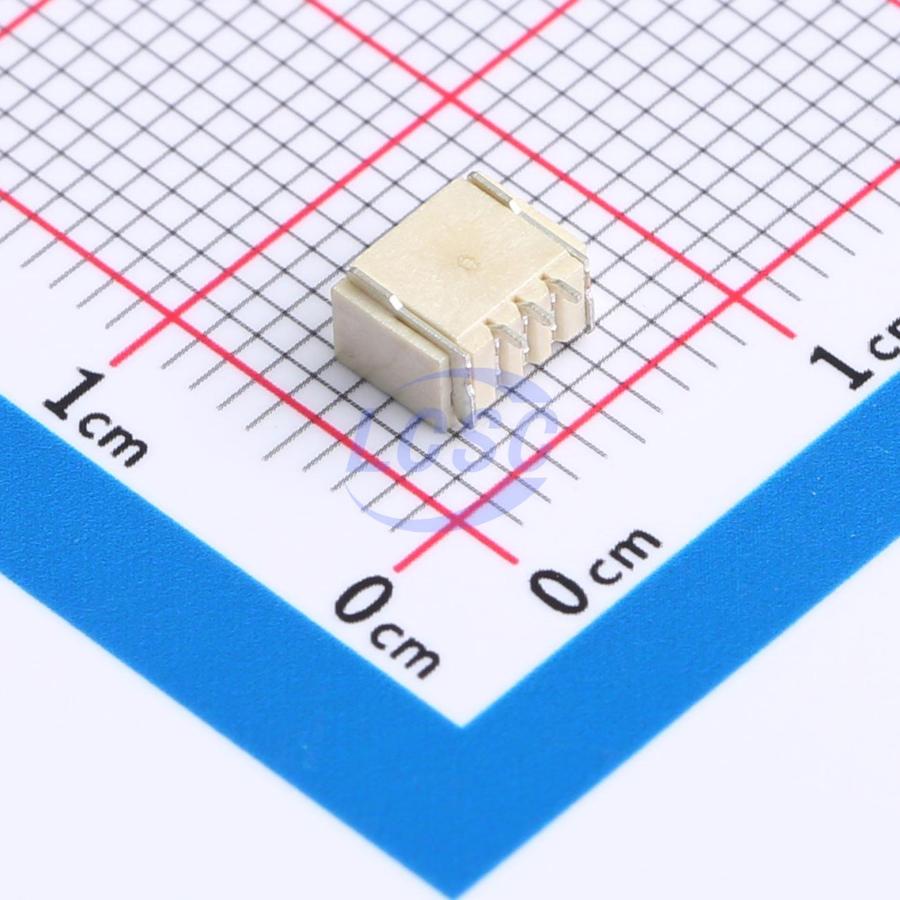

Manufacturer: Bossie
Mfr. Part #: BX-SH1.0-3PWT
Part Number: C18077909
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x3P 3P SH Tin 3 -25℃~+85℃ 1A 1 1mm Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
📦 680 in stock
Delivers By: Wednesday, November 5, 2025 *
680 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹7.95
5 - 49 Pieces
₹7.95
(0% off)
50 - 149 Pieces
₹6.62
(16% off)
150 - 499 Pieces
₹5.96
(25% off)
500 - 1,999 Pieces
₹5.46
(31% off)
2,000 - 3,999 Pieces
₹5.07
(36% off)
4,000+ Pieces
₹4.87
(38% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.05mm
Pins Structure
1x3P
Number of Pins
3P
Reference Series
SH
Contact Plating
Tin
Number of PINs Per Row
3
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
5.35mm
Z-Height of the Board
3.15mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
