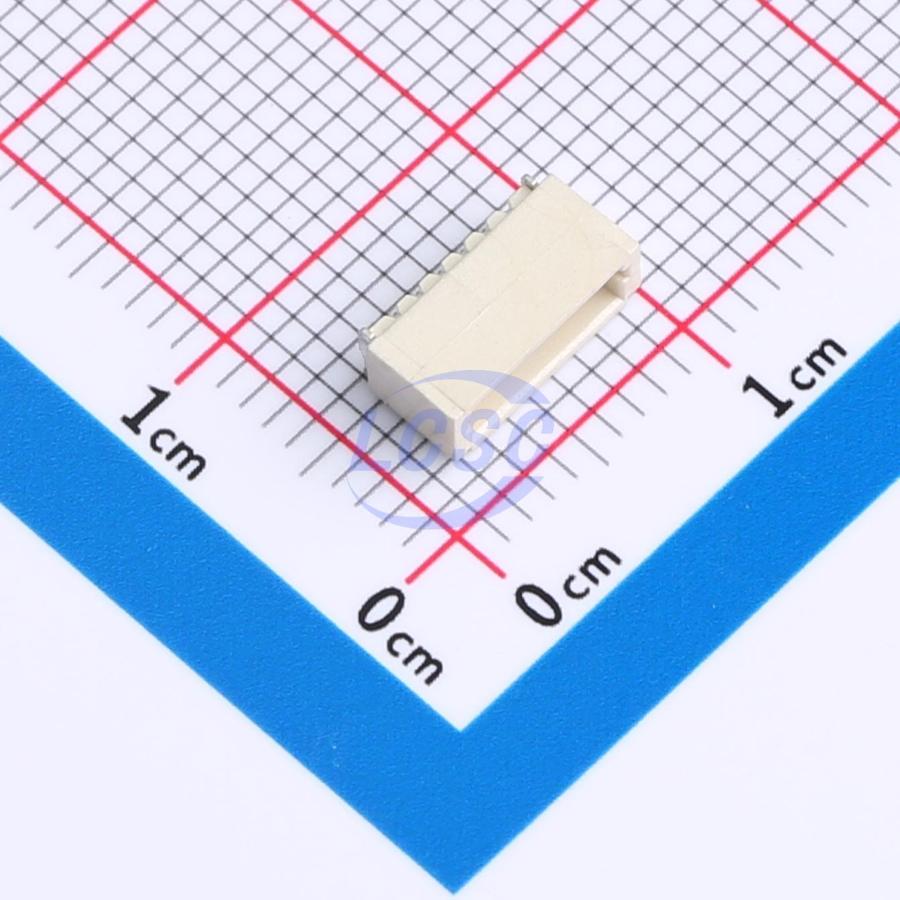

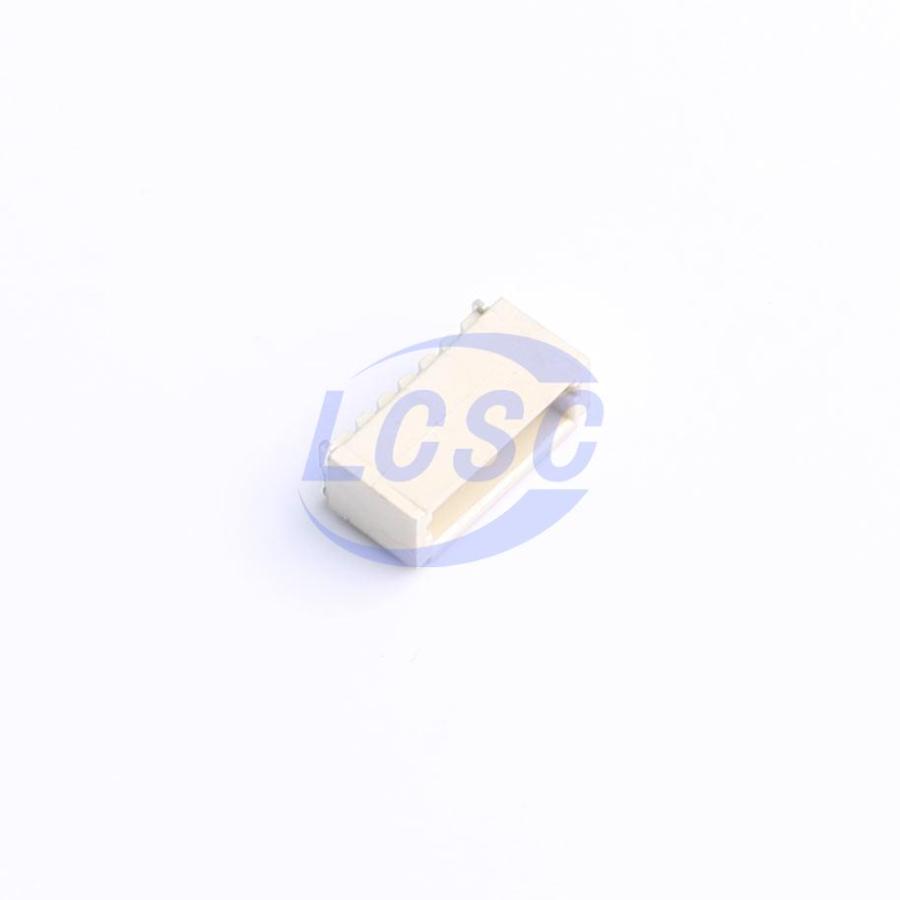

Manufacturer: Bossie
Mfr. Part #: BX-SH1.0-6PWT
Part Number: C18077912
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x6P 6P SH Tin 6 -25℃~+85℃ 1A 1 1mm Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
📦 10365 in stock
Delivers By: Wednesday, November 5, 2025 *
10365 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹8.56
5 - 49 Pieces
₹8.56
(0% off)
50 - 149 Pieces
₹7.80
(8% off)
150 - 499 Pieces
₹7.41
(13% off)
500 - 1,999 Pieces
₹7.11
(16% off)
2,000 - 3,999 Pieces
₹6.90
(19% off)
4,000+ Pieces
₹6.79
(20% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.05mm
Pins Structure
1x6P
Number of Pins
6P
Reference Series
SH
Contact Plating
Tin
Number of PINs Per Row
6
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
8.35mm
Z-Height of the Board
3.15mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
