Manufacturer: Bossie
Mfr. Part #: BX-XH2.54-3PWZ
Part Number: C18077843
Package: Through Hole,Right Angle,P=2.54mm

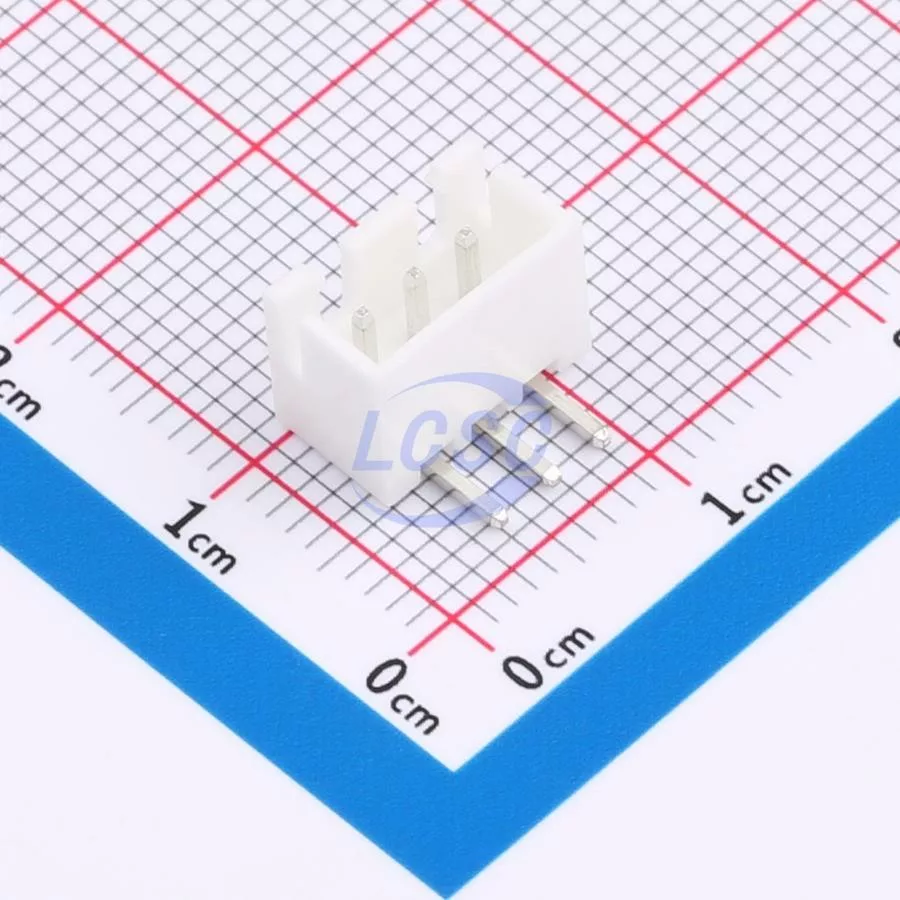

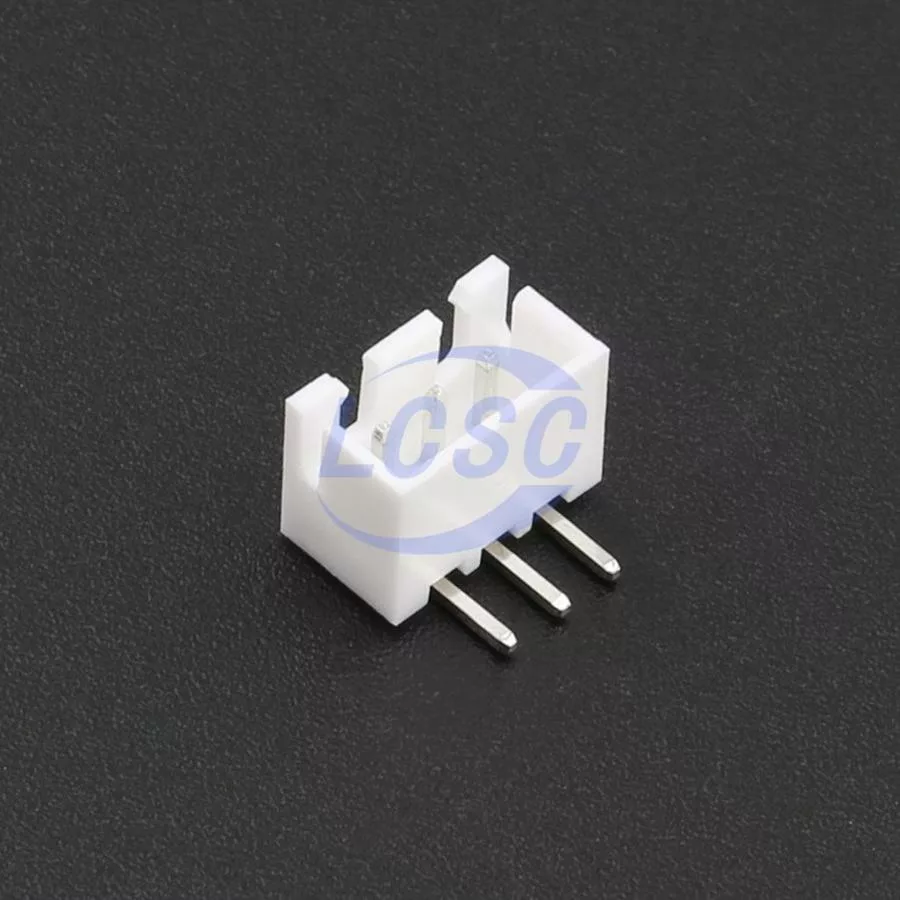

Description: 1x3P 3P XH Tin 3 -25℃~+85℃ 3A 1 2.5mm Brass Right Angle Through Hole,Right Angle,P=2.54mm Wire To Board Connector ROHS
📦 11040 in stock
Delivers By: Thursday, November 6, 2025 *
11040 in stock
×
Total:
Bulk Pricing
1 - 19
Pieces
₹2.07
20 - 199 Pieces
₹2.07
(0% off)
200 - 599 Pieces
₹1.71
(17% off)
600 - 1,999 Pieces
₹1.49
(28% off)
2,000 - 9,999 Pieces
₹1.39
(32% off)
10,000 - 19,999 Pieces
₹1.28
(38% off)
20,000+ Pieces
₹1.21
(41% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
Through Hole,Right Angle,P=2.54mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
7.32mm
Pins Structure
1x3P
Number of Pins
3P
Reference Series
XH
Contact Plating
Tin
Number of PINs Per Row
3
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
PA66
Color
White
Number of Rows
1
Flame Retardant Rating
UL94V-0
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
10mm
Z-Height of the Board
5.9mm
Mounting Type
Right Angle
Additional Information
Minimum Qty: 20
Multiple : 20
Standard Packaging: 2000/Piece
