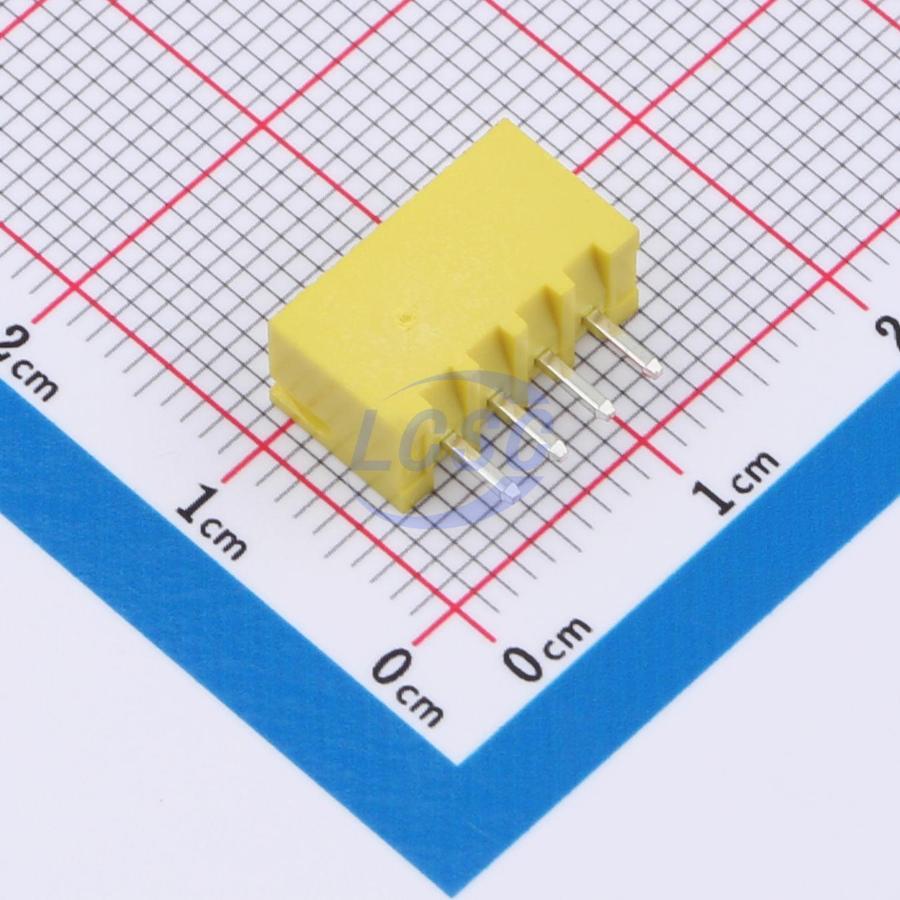

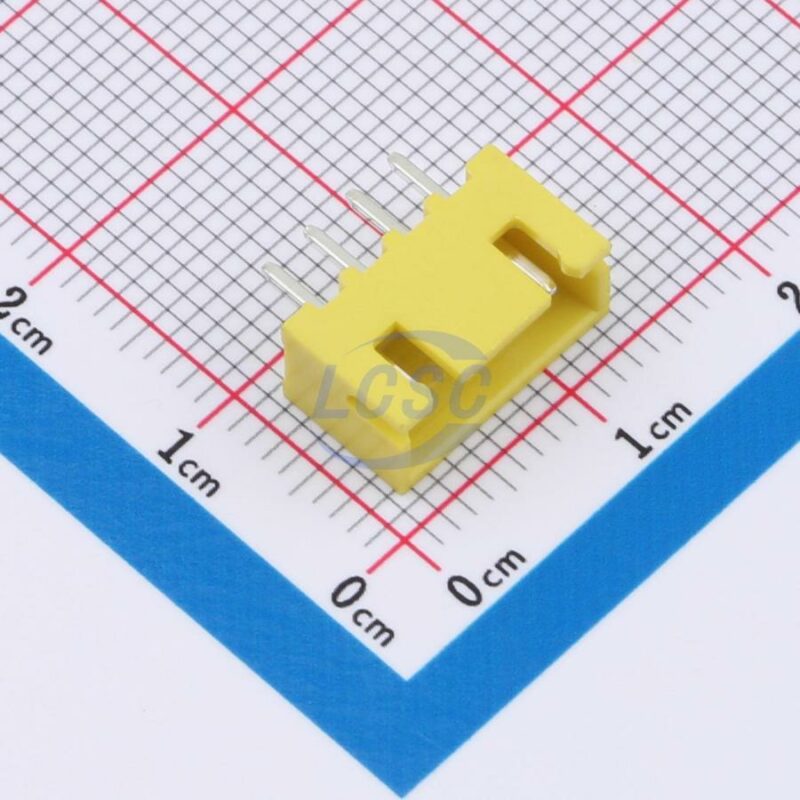

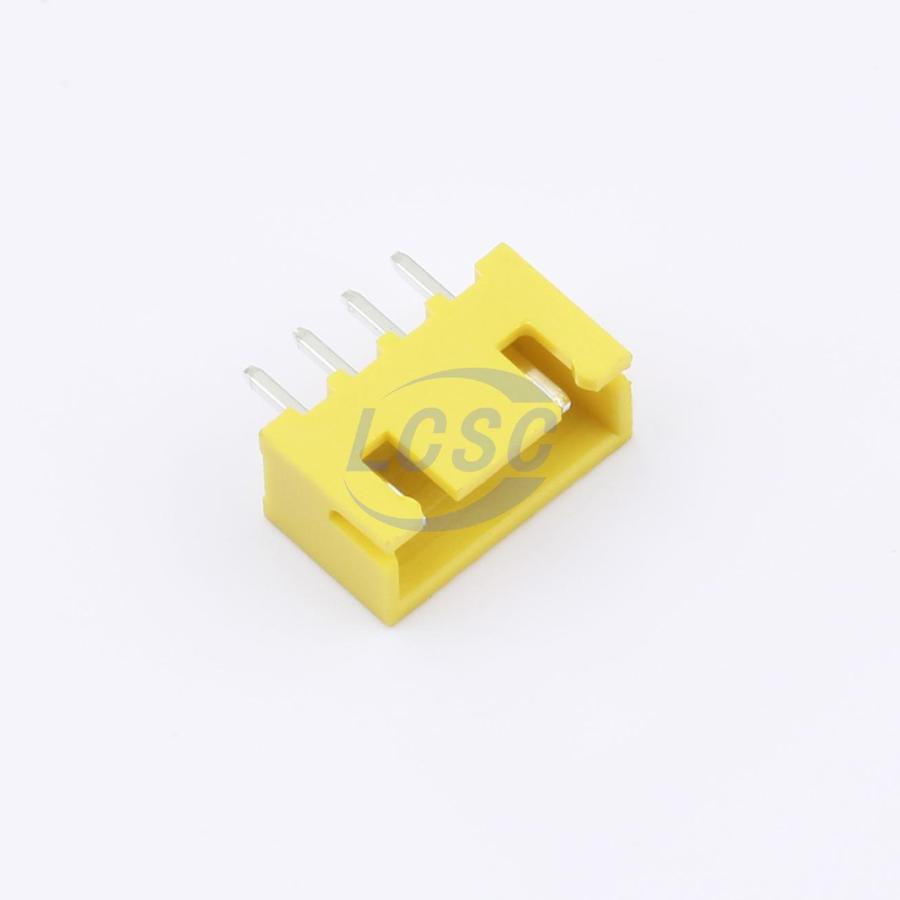

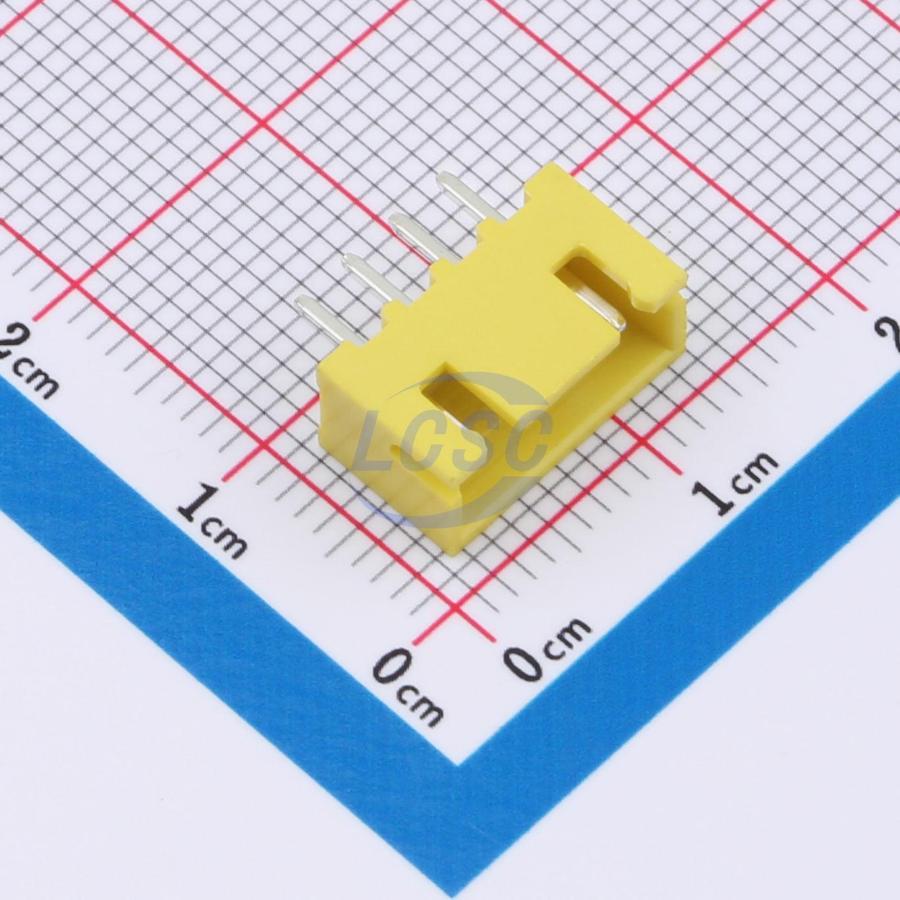

Manufacturer: Bossie
Mfr. Part #: BX-XH2.54-4PZZ-Y
Part Number: C22388510
Package: Through Hole,P=2.54mm
Description: 1x4P XH 4P Tin 4 -25℃~+85℃ 3A 1 2.5mm Copper Alloy Through Hole Through Hole,P=2.54mm Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
Bossie
Package
Through Hole,P=2.54mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.75mm
Pins Structure
1x4P
Reference Series
XH
Number of Pins
4P
Contact Plating
Tin
Number of PINs Per Row
4
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
PA66
Color
Yellow
Number of Rows
1
Flame Retardant Rating
UL94V-0
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Copper Alloy
X-Length of Bottom Edge on Board (Spacing Line)
12.5mm
Z-Height of the Board
7mm
Mounting Type
Through Hole
Additional Information
Minimum Qty: 10
Multiple : 10
Standard Packaging: 2000/Piece
Related Resources
- Datasheet
- EasyEDA Model
