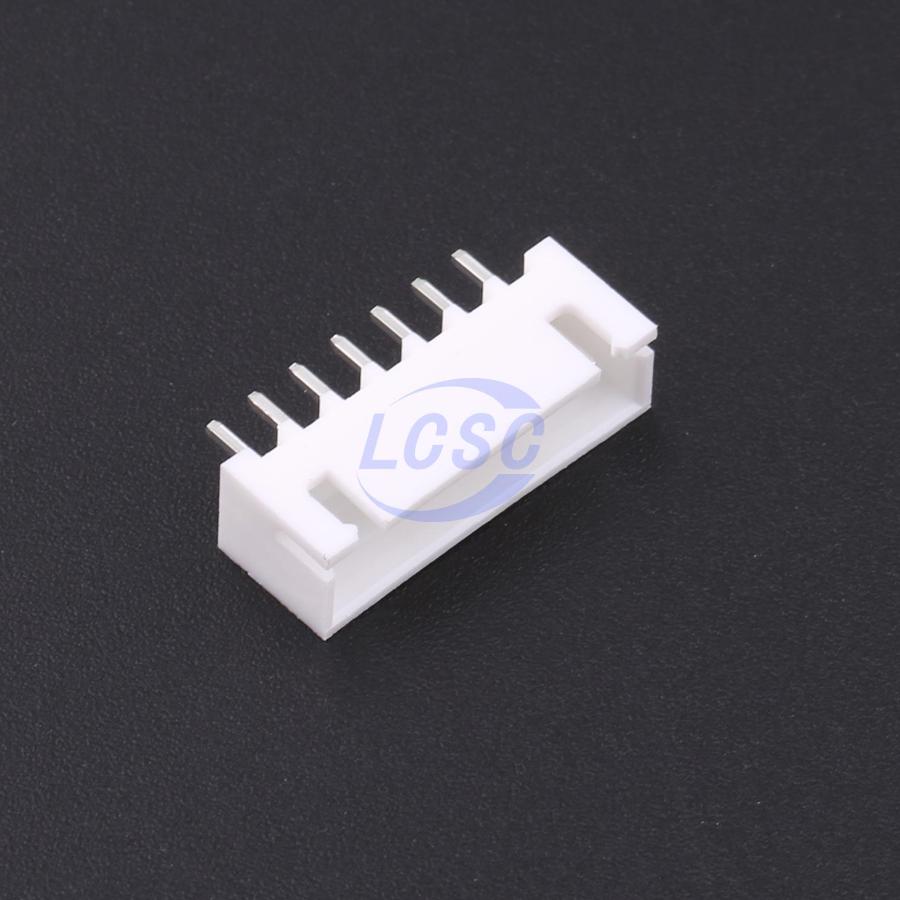

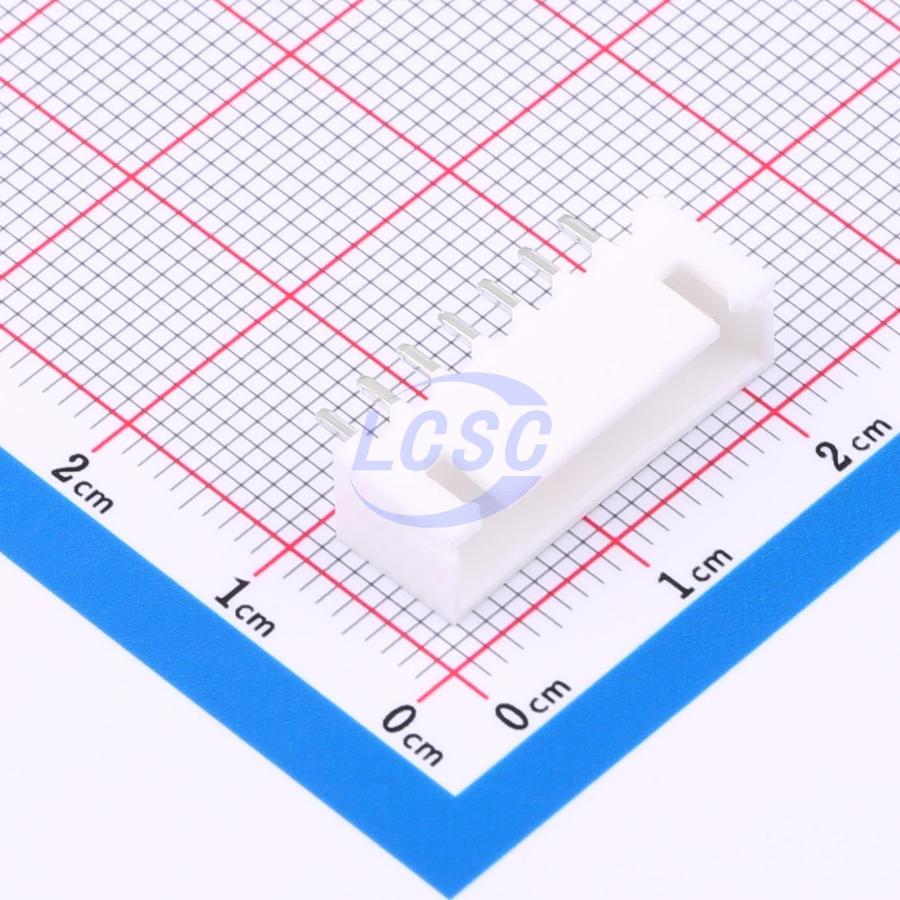

Manufacturer: Bossie
Mfr. Part #: BX-XH2.54-7PZZ
Part Number: C18077838
Package: Through Hole,P=2.54mm
Description: 1x7P 7P XH Tin 7 -25℃~+85℃ 3A 1 2.5mm Brass Through Hole Through Hole,P=2.54mm Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Bossie
Package
Through Hole,P=2.54mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.9mm
Pins Structure
1x7P
Number of Pins
7P
Reference Series
XH
Contact Plating
Tin
Number of PINs Per Row
7
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
PA66
Color
White
Number of Rows
1
Flame Retardant Rating
UL94V-0
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
20mm
Z-Height of the Board
7mm
Mounting Type
Through Hole
Additional Information
Minimum Qty: 10
Multiple : 10
Standard Packaging: 1000/Piece
