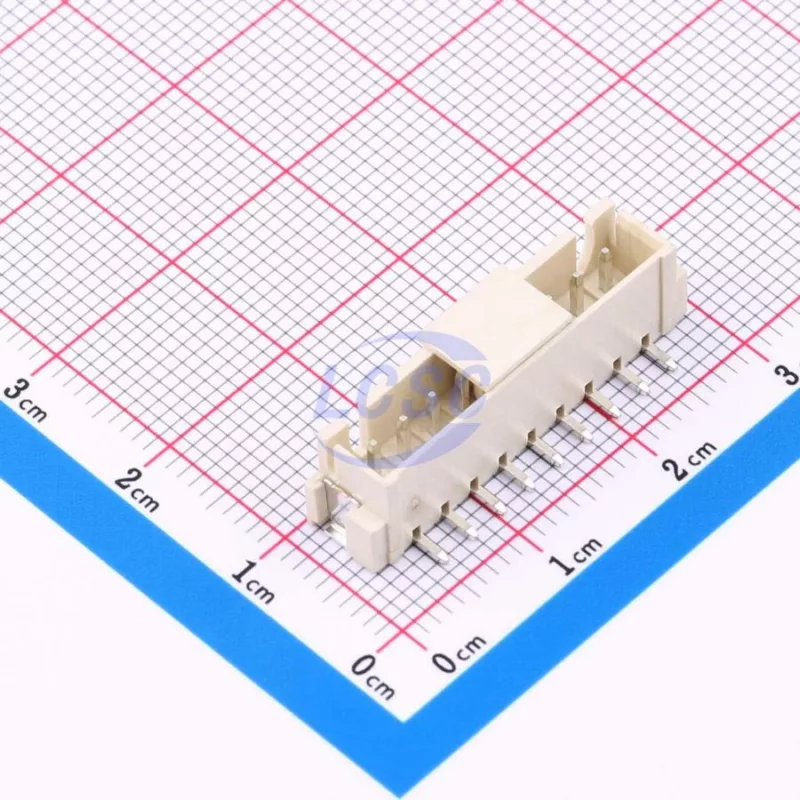

Manufacturer: Bossie
Mfr. Part #: BX-XH2.54-9PLT
Part Number: C18077888
Package: SMD,P=2.54mm
Description: 1x9P 9P XH Tin 9 -25℃~+85℃ 3A 1 2.5mm Brass Surface Mount,Vertical SMD,P=2.54mm Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 500/Piece
Products Specifications
Manufacturer
Bossie
Package
SMD,P=2.54mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
8.3mm
Pins Structure
1x9P
Number of Pins
9P
Reference Series
XH
Contact Plating
Tin
Number of PINs Per Row
9
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
27.5mm
Z-Height of the Board
8mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 500/Piece
Related Resources
- Datasheet
- EasyEDA Model
