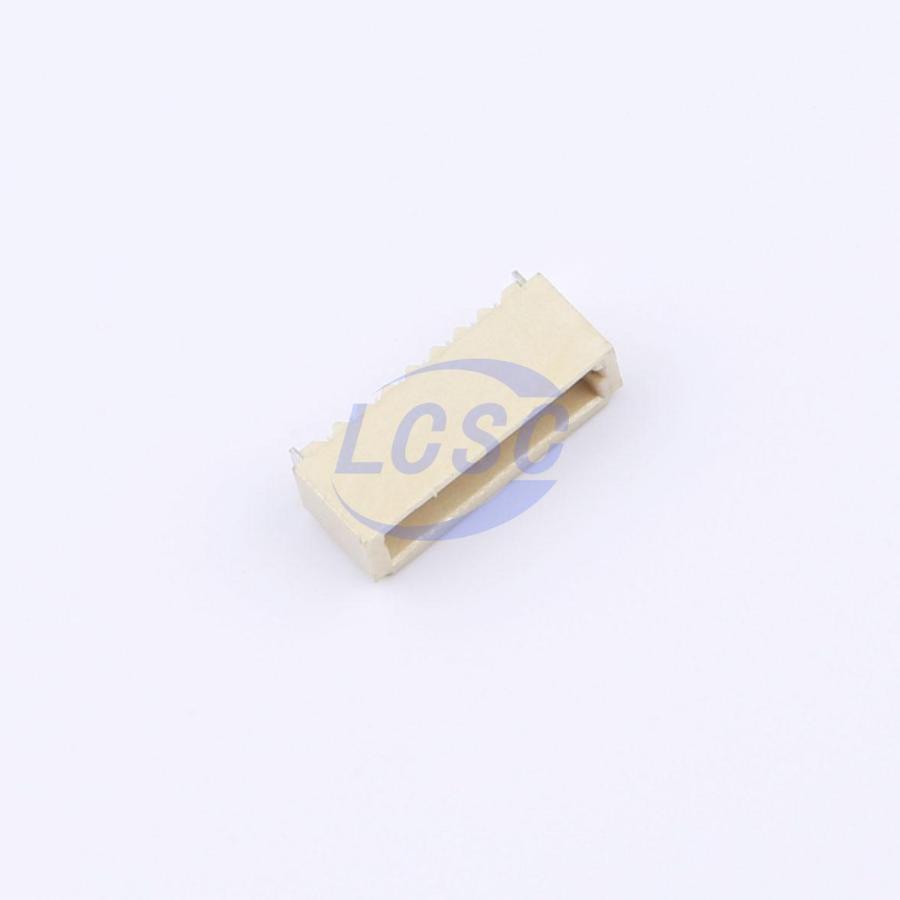

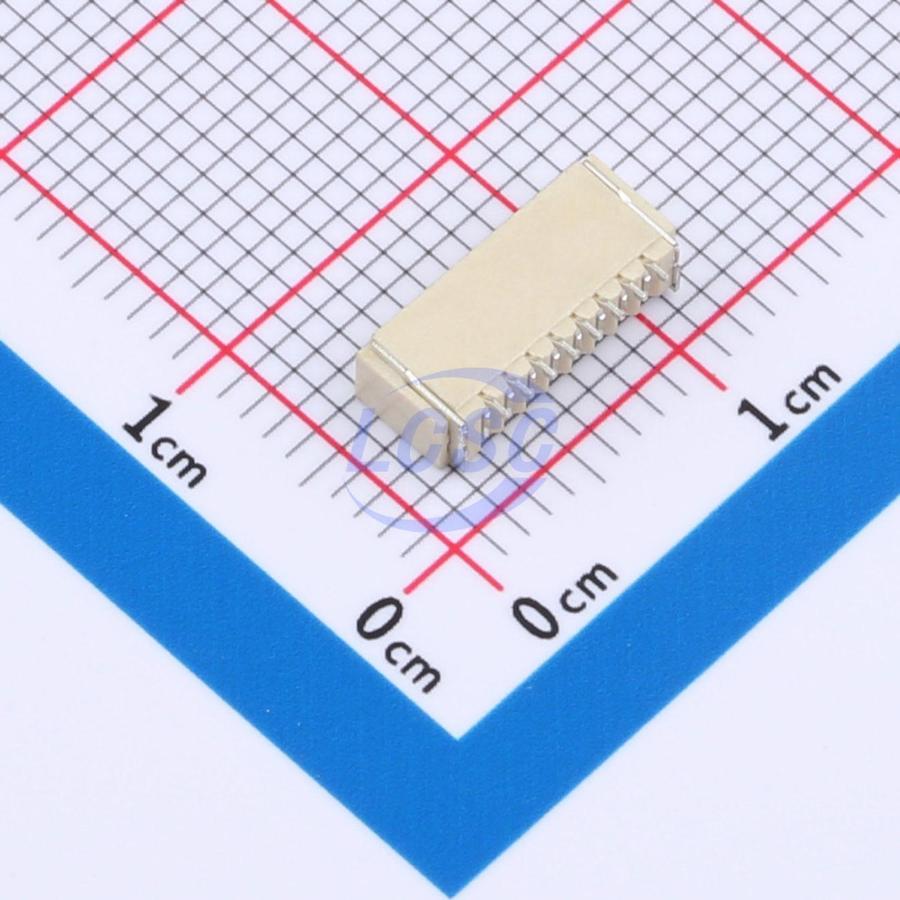

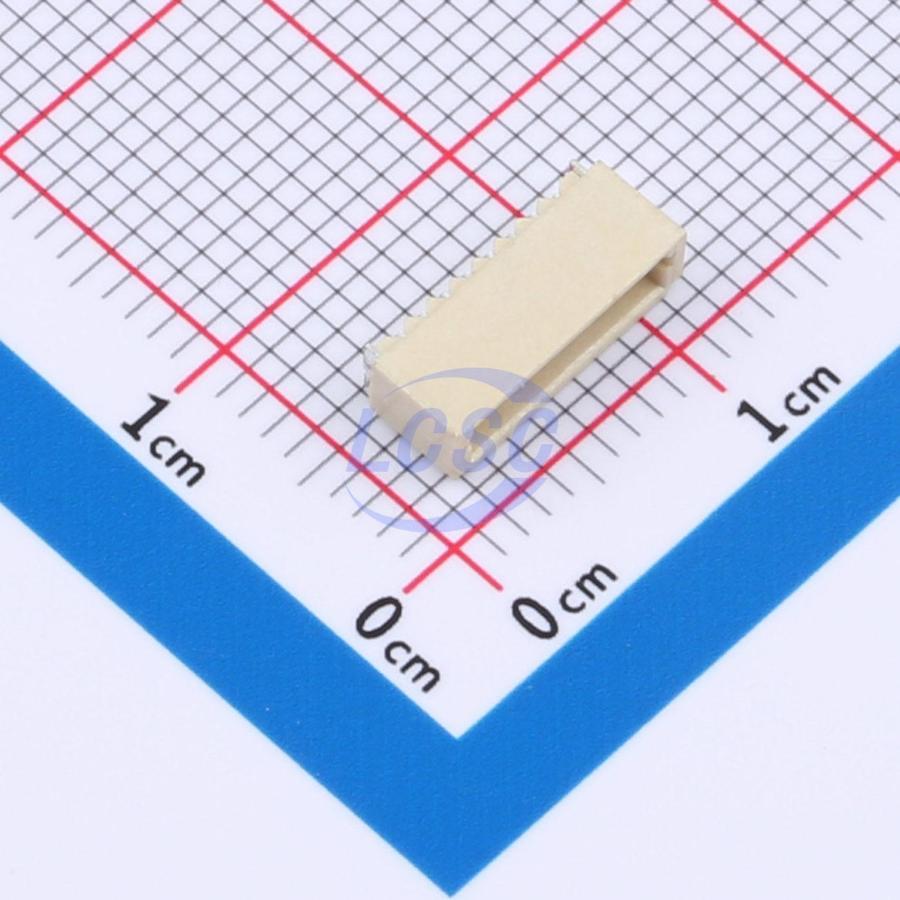

Manufacturer: BXCONN
Mfr. Part #: WF-1F100A8P
Part Number: C23390341
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x8P 1 8P SH 1mm Tin 8 -25℃~+85℃ 1A Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
BXCONN
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Pins Structure
1x8P
Number of Rows
1
Number of Pins
8P
Reference Series
SH
Pitch
1mm
Contact Plating
Tin
Number of PINs Per Row
8
Operating Temperature
-25℃~+85℃
Current Rating
1A
Contact Material
Brass
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
