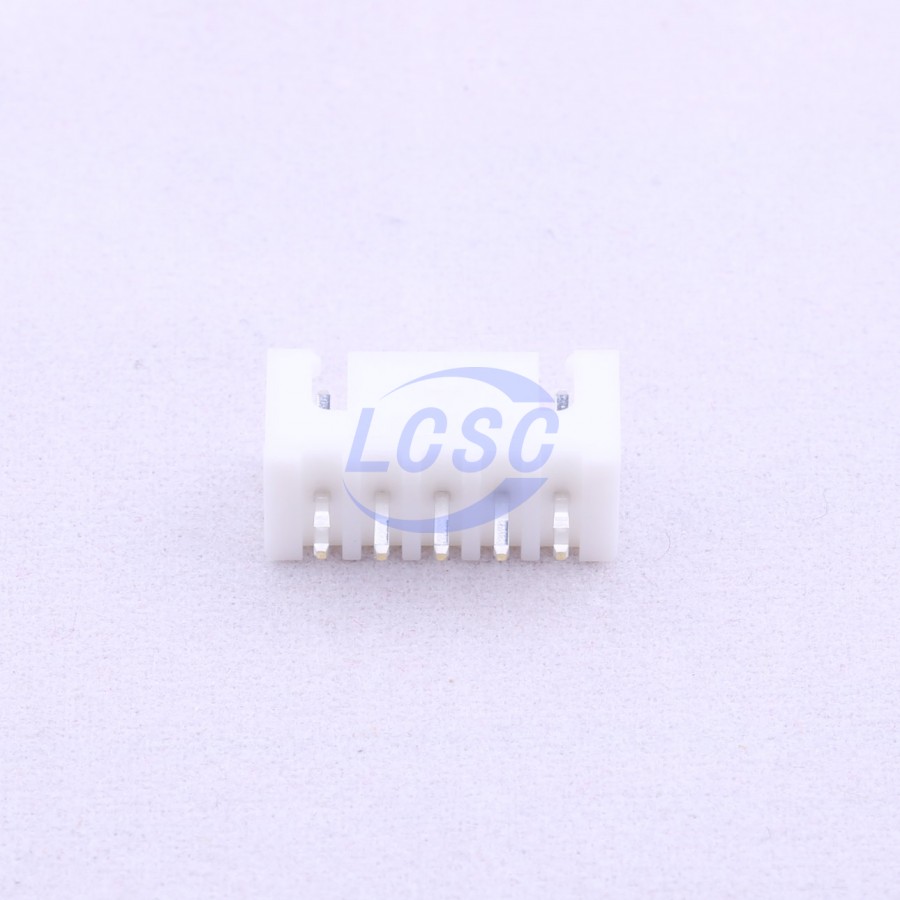

JST B5B-XH-A(LF)(SN)
Manufacturer: JST
Mfr. Part # B5B-XH-A(LF)(SN)
SemiNest Part # C157991
Package : Plugin,P=2.5mm
Description : 1x5P 5P XH Tin 5 -25℃~+85℃ 3A 1 2.5mm Brass Direct Insert Plugin,P=2.5mm Wire To Board Connector ROHS
34965 in stock
[estimated_dispatch_date]
Original price was: ₹13.43.₹11.38Current price is: ₹11.38.
34965 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹11.38
5 - 49 Pieces
₹11.38
(0% off)
50 - 149 Pieces
₹9.31
(18% off)
150 - 499 Pieces
₹8.23
(27% off)
500 - 2,499 Pieces
₹7.07
(37% off)
2,500 - 4,999 Pieces
₹6.76
(40% off)
5,000+ Pieces
₹6.55
(42% off)
📦 Standard Packaging: 500/Piece
Products Specifications
| Y-Width of Bottom Edge on Board | 5.75mm |
|---|---|
| Pins Structure | 1x5P |
| Number of Pins | 5P |
| Reference Series | XH |
| Contact Plating | Tin |
| Number of PINs Per Row | 5 |
| Operating Temperature | -25℃~+85℃ |
| Current Rating | 3A |
| Plastic Material | PA66 |
| Color | White |
| Supplementary Features | K-leg punch |
| Number of Rows | 1 |
| Flame Retardant Rating | UL94V-0 |
| Pitch | 2.5mm |
| Voltage Rating | 250V |
| Contact Material | Brass |
| X-Length of Bottom Edge on Board (Spacing Line) | 14.9mm |
| Z-Height of the Board | 7mm |
| Mounting Type | Direct Insert |
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 500/Piece
