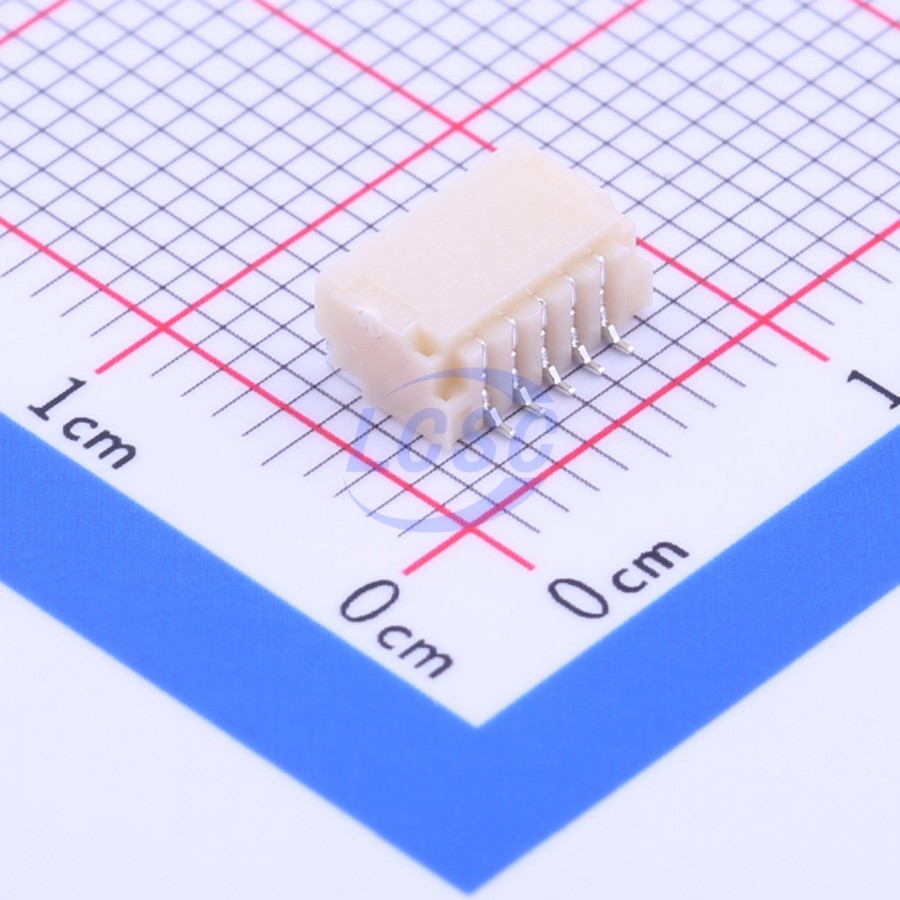

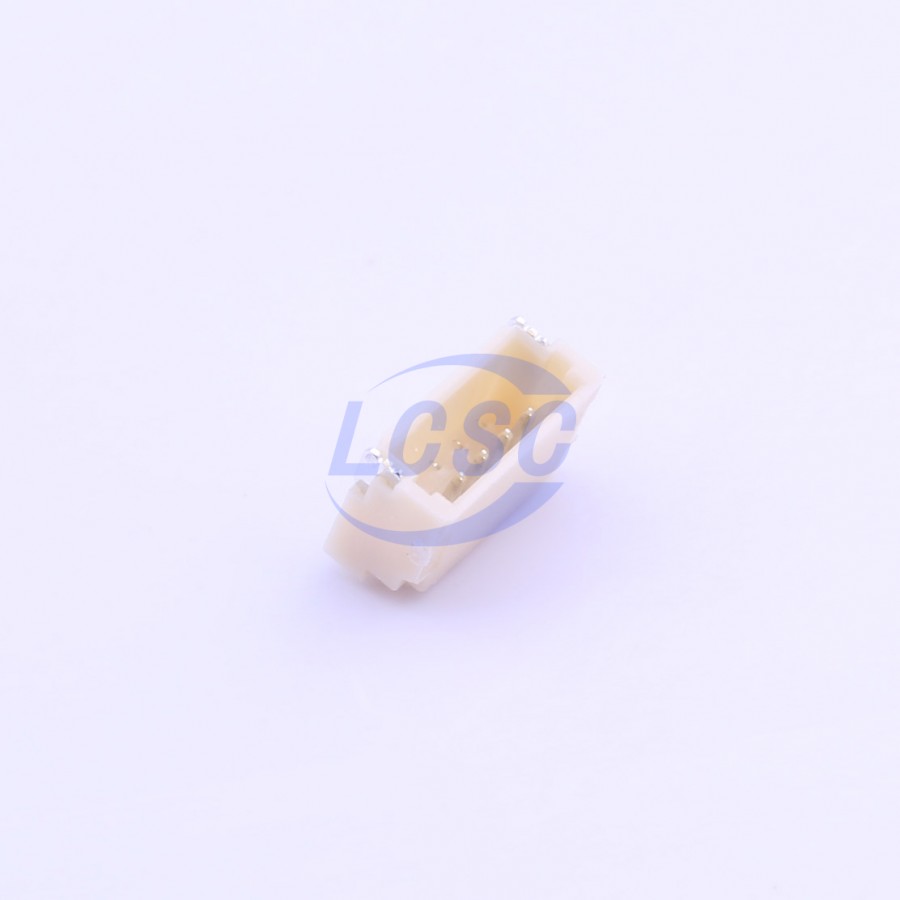

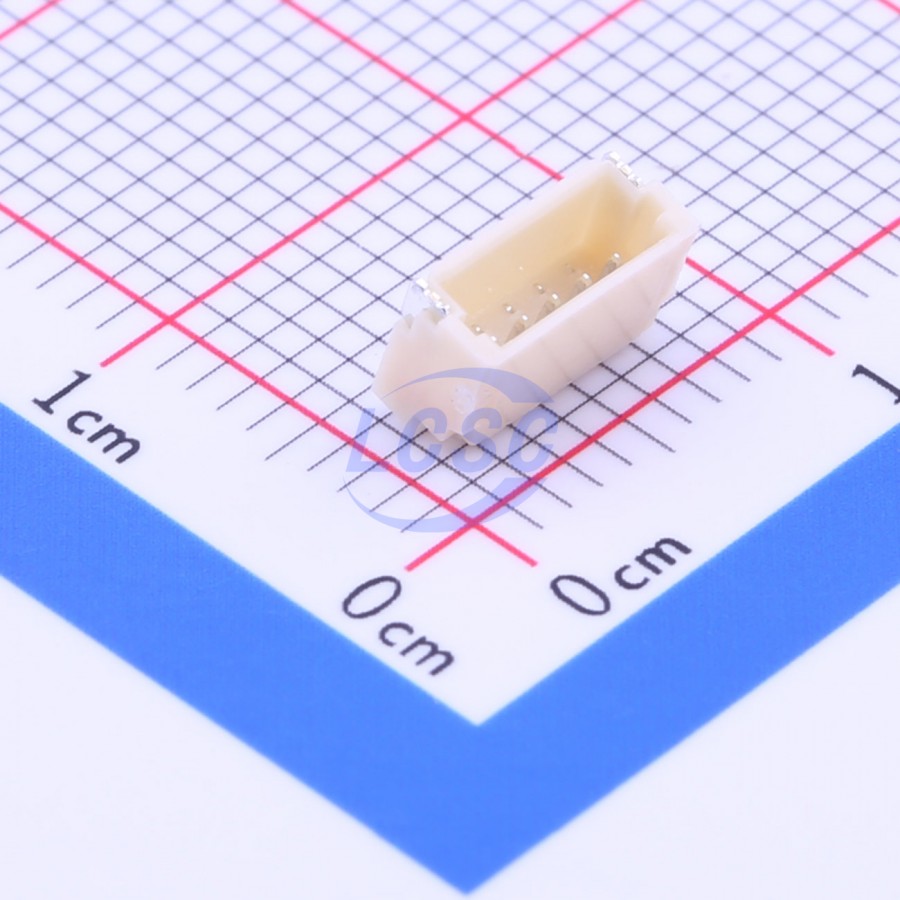

Manufacturer: JST
Mfr. Part #: SM05B-SRSS-TB(LF)(SN)
Part Number: C136657
Package: SMD,P=1mm,Surface Mount，Right Angle
Description: 1x5P SH 5P Tin 5 -25℃~+85℃ 1A 1 1mm Copper alloy Horizontal attachment SMD,P=1mm,Surface Mount，Right Angle Wire To Board Connector ROHS
📦 15435 in stock
Delivers By: Monday, December 22, 2025 *
15435 in stock
×
Total:
Bulk Pricing
1 - 49
Pieces
₹38.00
50 - 149 Pieces
₹30.32
(20% off)
150 - 499 Pieces
₹27.04
(28% off)
500 - 2,999 Pieces
₹22.93
(39% off)
3,000 - 5,999 Pieces
₹20.48
(46% off)
6,000+ Pieces
₹19.38
(49% off)
📦 Standard Packaging: 3000/Piece
Products Specifications
Y-Width of Bottom Edge on Board
4.32mm
Supplementary Features
Auxiliary soldering legs
Z-Height of the Board
2.9mm
X-Length of Bottom Edge on Board (Spacing Line)
7mm
Contact Material
Copper alloy
Voltage Rating
50V
Pitch
1mm
Flame Retardant Rating
UL94V-0
Number of Rows
1
Color
White
Pins Structure
1x5P
Plastic Material
PA
Current Rating
1A
Operating Temperature
-25℃~+85℃
Number of PINs Per Row
5
Contact Plating
Tin
Number of Pins
5P
Reference Series
SH
Mounting Type
Horizontal attachment
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 3000/Piece
