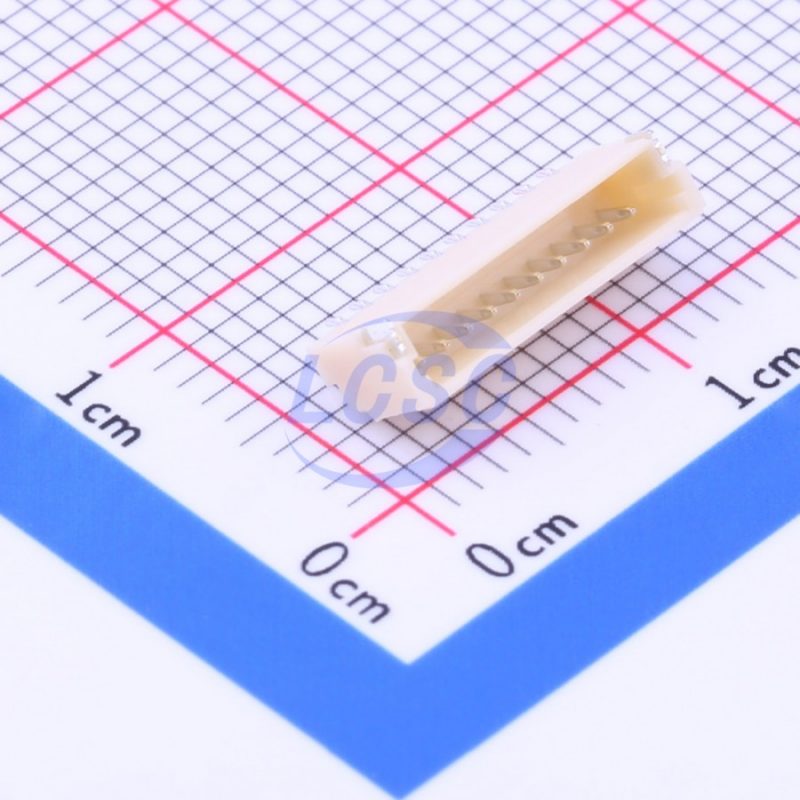

JST SM10B-SRSS-TB(LF)(SN)
Manufacturer: JST
Mfr. Part # SM10B-SRSS-TB(LF)(SN)
SemiNest Part # C160409
Package : SMD,P=1mm,Surface Mount，Right Angle
Description : 1x10P 10P SH Tin 10 -25℃~+85℃ 1A 1 1mm Copper alloy Horizontal attachment SMD,P=1mm,Surface Mount，Right Angle Wire To Board Connector ROHS
91 in stock
[estimated_dispatch_date]
Original price was: ₹69.83.₹59.18Current price is: ₹59.18.
91 in stock
×
Total:
Bulk Pricing
1 - 9
Pieces
₹59.18
10 - 29 Pieces
₹46.74
(21% off)
30 - 99 Pieces
₹41.34
(30% off)
100 - 499 Pieces
₹34.76
(41% off)
500 - 999 Pieces
₹31.71
(46% off)
1,000+ Pieces
₹29.84
(49% off)
📦 Standard Packaging: 3000/Piece
Products Specifications
| Y-Width of Bottom Edge on Board | 4.32mm |
|---|---|
| Pins Structure | 1x10P |
| Number of Pins | 10P |
| Reference Series | SH |
| Contact Plating | Tin |
| Number of PINs Per Row | 10 |
| Operating Temperature | -25℃~+85℃ |
| Current Rating | 1A |
| Plastic Material | PA |
| Color | White |
| Supplementary Features | Auxiliary soldering legs |
| Number of Rows | 1 |
| Flame Retardant Rating | UL94V-0 |
| Pitch | 1mm |
| Voltage Rating | 50V |
| Contact Material | Copper alloy |
| X-Length of Bottom Edge on Board (Spacing Line) | 12mm |
| Z-Height of the Board | 2.9mm |
| Mounting Type | Horizontal attachment |
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 3000/Piece
Related Resources
- Datasheet
- EasyEDA Model
