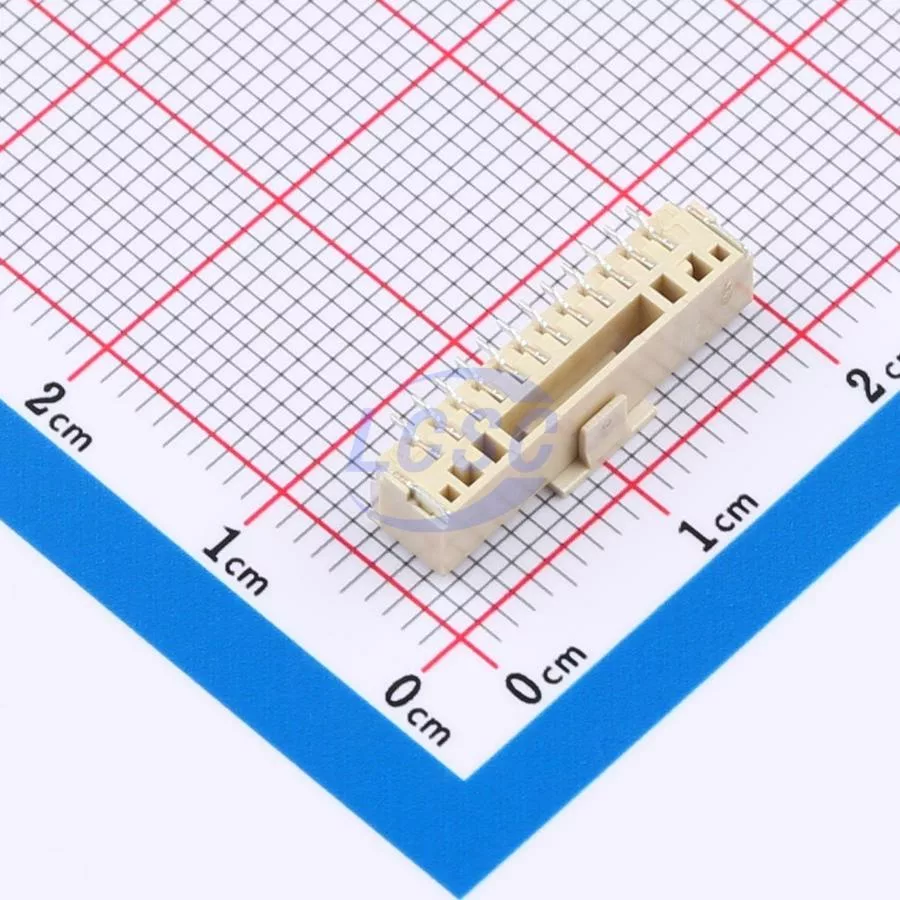

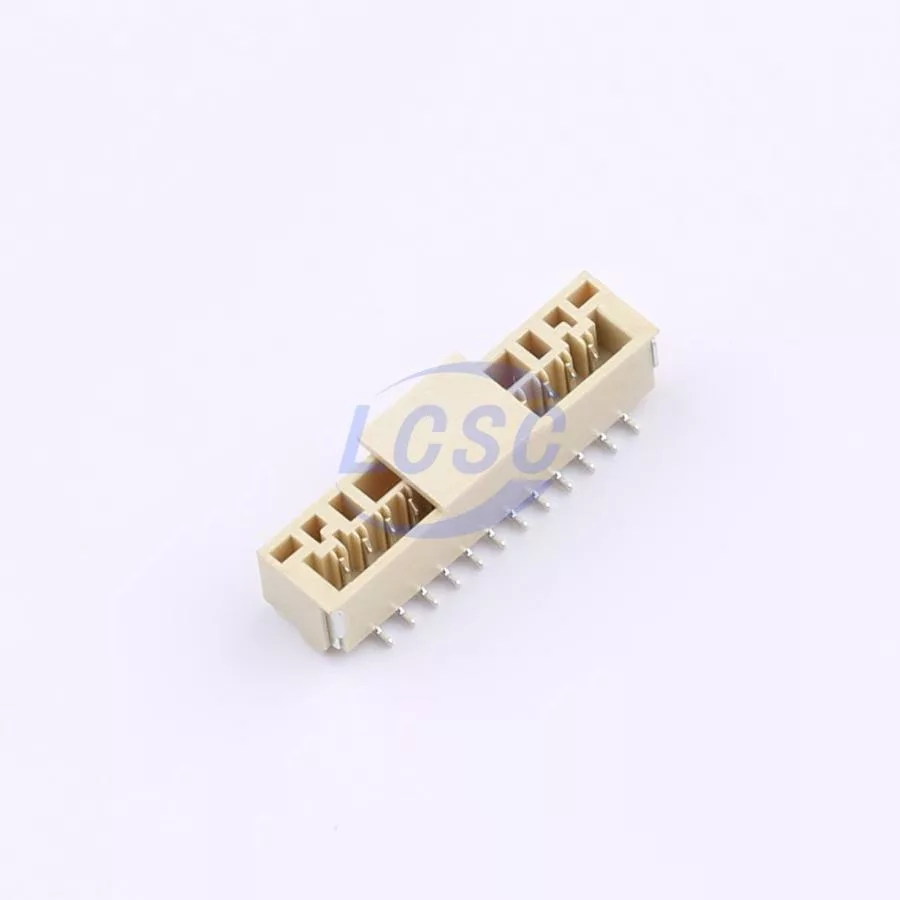

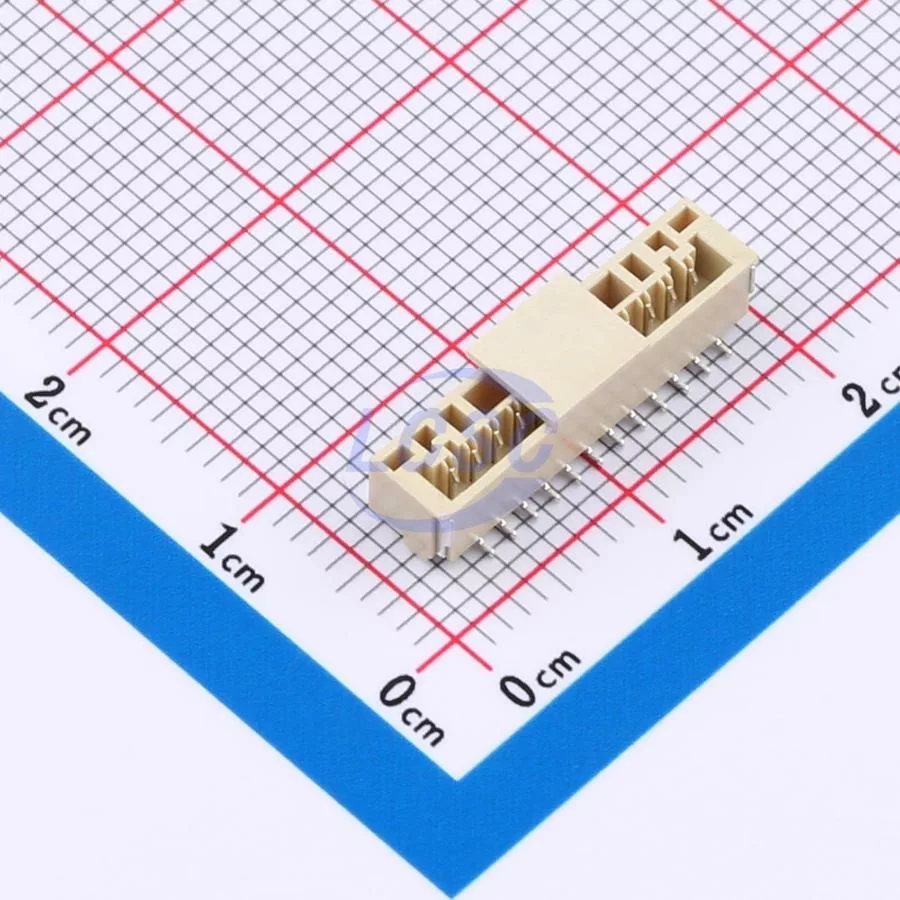

Manufacturer: XUNPU
Mfr. Part #: WAFER-GH1.25-12PLB
Part Number: C22370216
Package: SMD,P=1.25mm
Description: 1x12P GH 12P 12 -25℃~+85℃ 1A 1 1.25mm Brass Surface Mount,Vertical SMD,P=1.25mm Wire To Board Connector ROHS
📦 920 in stock
Delivers By: Tuesday, November 4, 2025 *
920 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹36.50
5 - 49 Pieces
₹36.50
(0% off)
50 - 149 Pieces
₹28.94
(20% off)
150 - 999 Pieces
₹25.68
(29% off)
1,000 - 1,999 Pieces
₹21.62
(40% off)
2,000 - 4,999 Pieces
₹19.82
(45% off)
5,000+ Pieces
₹18.74
(48% off)
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1.25mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
4.95mm
Pins Structure
1x12P
Reference Series
GH
Number of Pins
12P
Number of PINs Per Row
12
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Number of Rows
1
Supplementary Features
Auxiliary Solder Pin
Pitch
1.25mm
Voltage Rating
125V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
18.25mm
Z-Height of the Board
4.2mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
