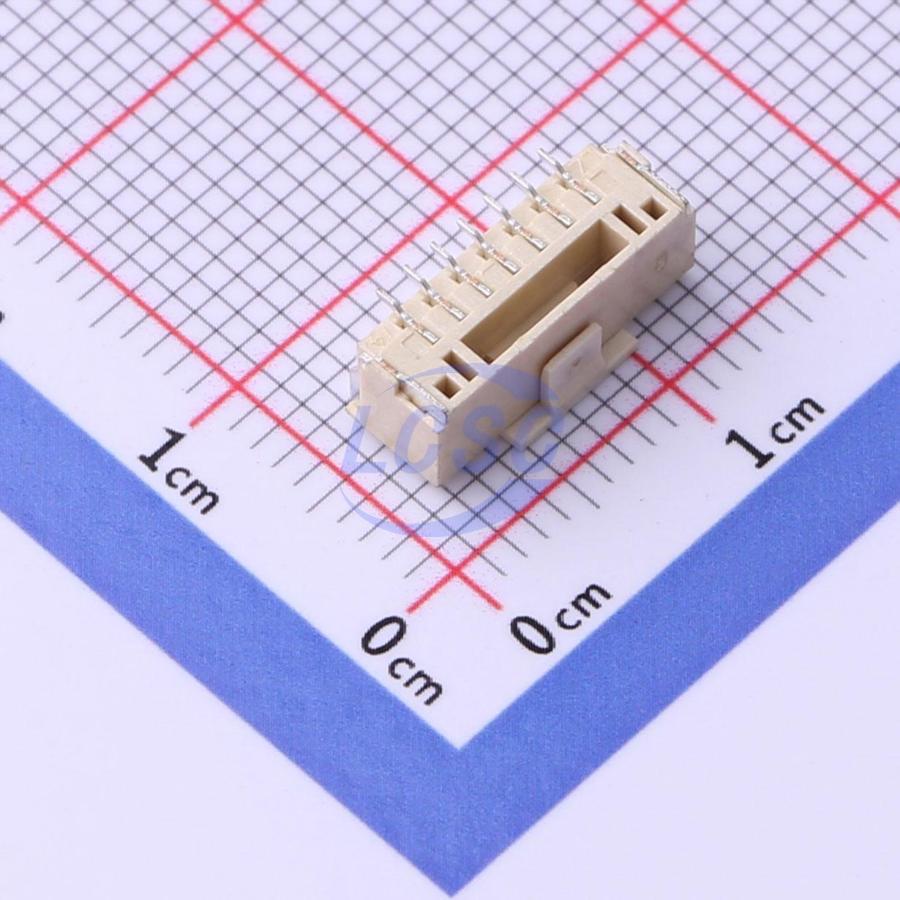

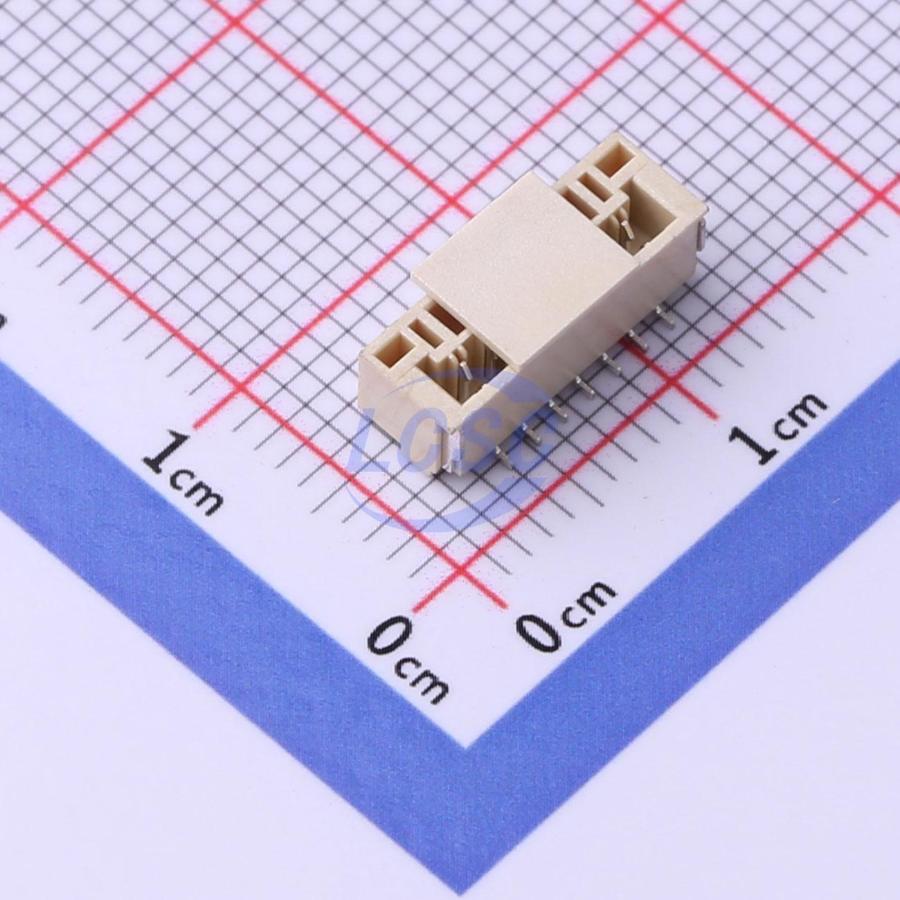

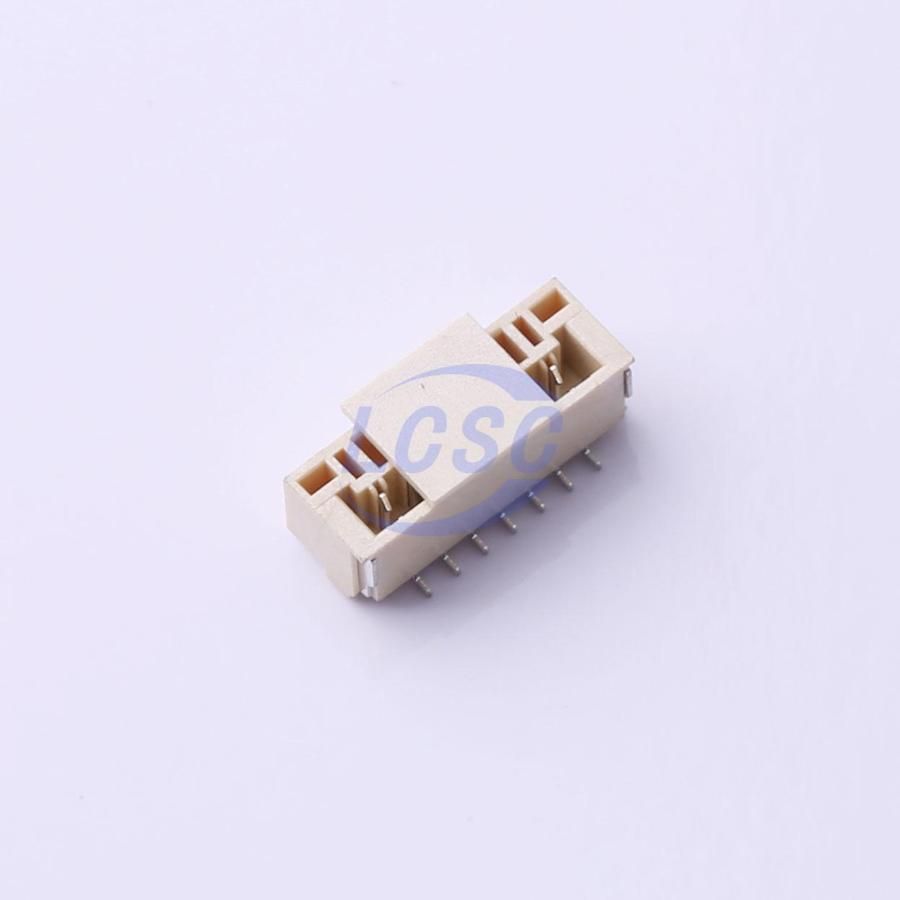

Manufacturer: XUNPU
Mfr. Part #: WAFER-GH1.25-7PLB
Part Number: C3029373
Package: SMD,P=1.25mm
Description: 1x7P 7P GH 7 -25℃~+85℃ 1A 1 1.25mm Brass Surface Mount,Vertical SMD,P=1.25mm Wire To Board Connector ROHS
Delivers By: Friday, March 6, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1.25mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
4.95mm
Pins Structure
1x7P
Number of Pins
7P
Reference Series
GH
Number of PINs Per Row
7
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1.25mm
Voltage Rating
125V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
12mm
Z-Height of the Board
4.2mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
