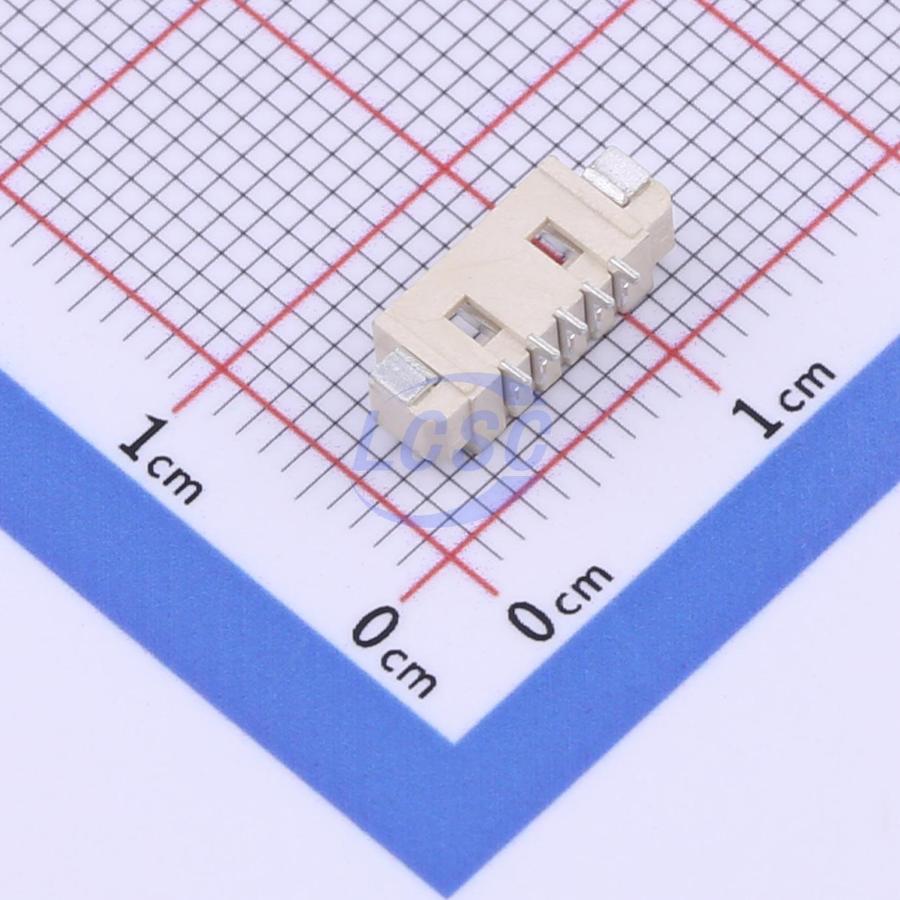

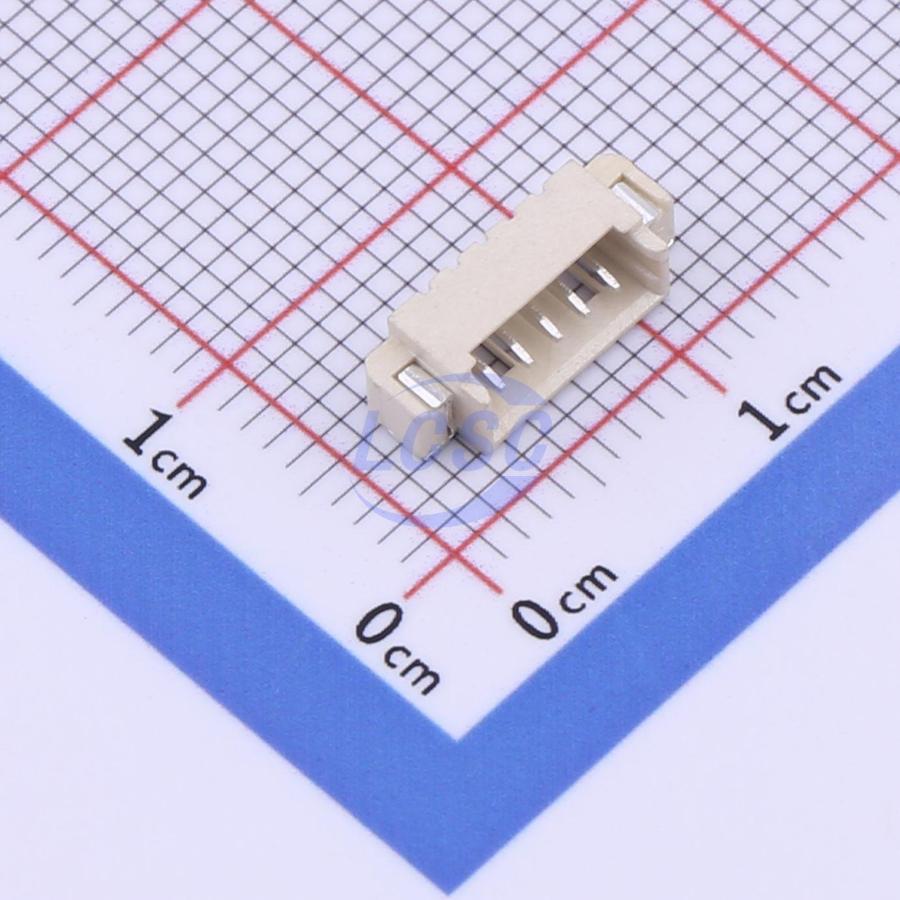

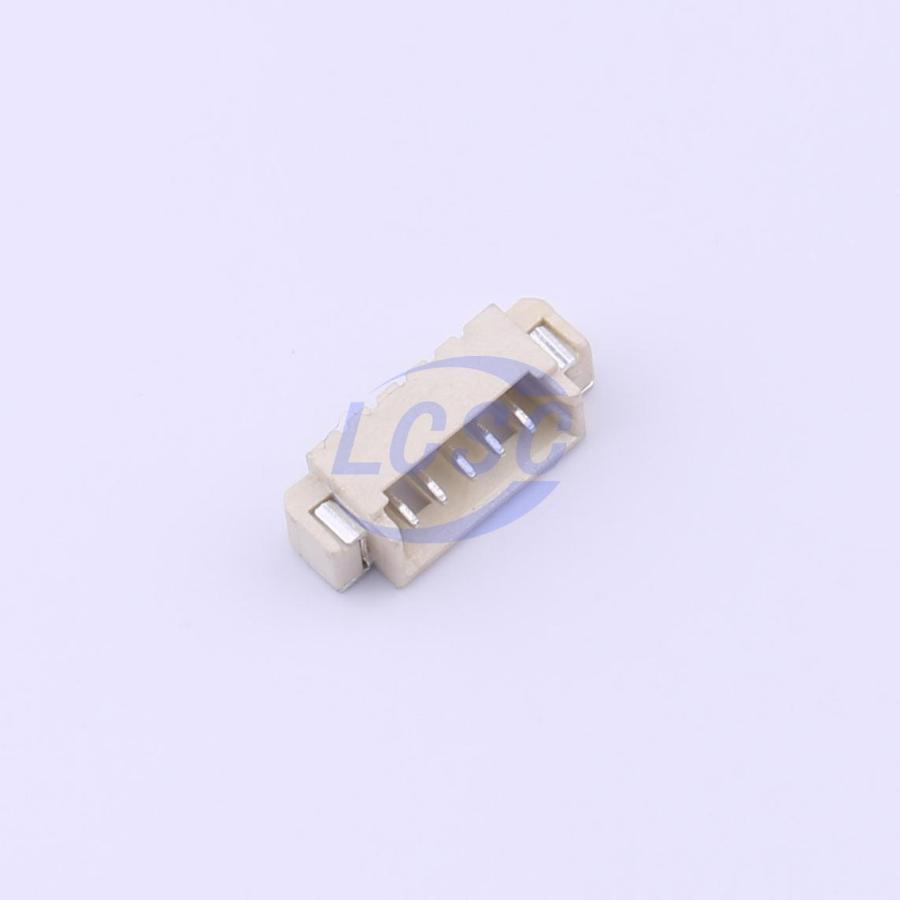

Manufacturer: XUNPU
Mfr. Part #: WAFER-MX1.25-5PWB
Part Number: C3029362
Package: SMD,P=1.25mm,Surface Mount,Right Angle
Description: 1x5P PicoBlade(MX 1.25) 5P 5 -25℃~+85℃ 1A 1 1.25mm Brass Surface Mount, Right Angle SMD,P=1.25mm,Surface Mount,Right Angle Wire To Board Connector ROHS
📦 29130 in stock
Delivers By: Tuesday, November 4, 2025 *
29130 in stock
×
Total:
Bulk Pricing
1 - 9
Pieces
₹5.87
10 - 99 Pieces
₹5.87
(0% off)
100 - 299 Pieces
₹5.12
(12% off)
300 - 1,999 Pieces
₹4.75
(19% off)
2,000 - 3,999 Pieces
₹4.36
(25% off)
4,000 - 9,999 Pieces
₹4.14
(29% off)
10,000+ Pieces
₹4.03
(31% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1.25mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.25mm
Pins Structure
1x5P
Reference Series
PicoBlade(MX 1.25)
Number of Pins
5P
Number of PINs Per Row
5
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1.25mm
Voltage Rating
125V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
11.25mm
Z-Height of the Board
3.6mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 10
Multiple : 10
Standard Packaging: 2000/Piece
