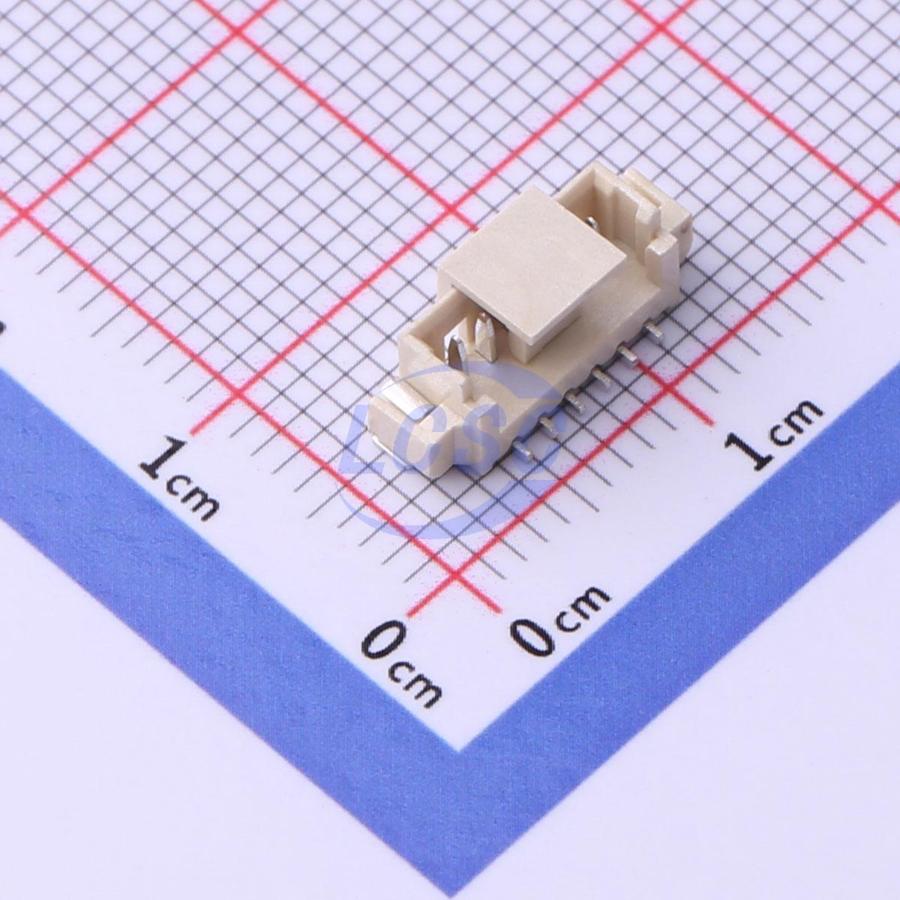

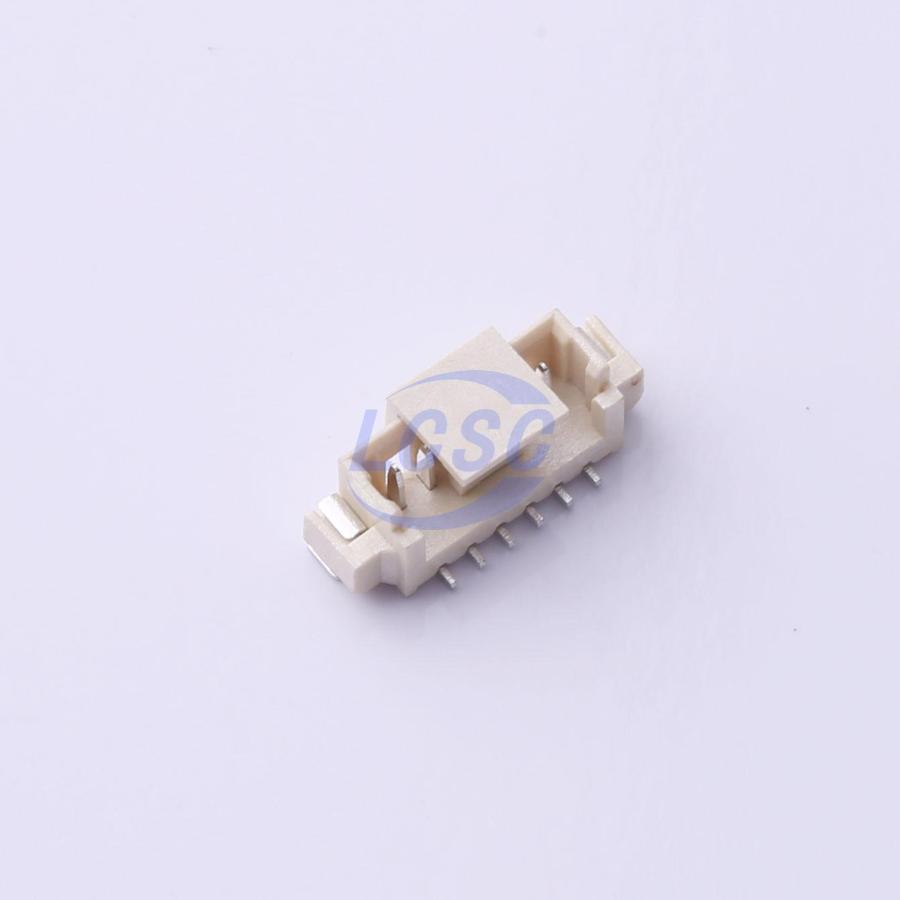

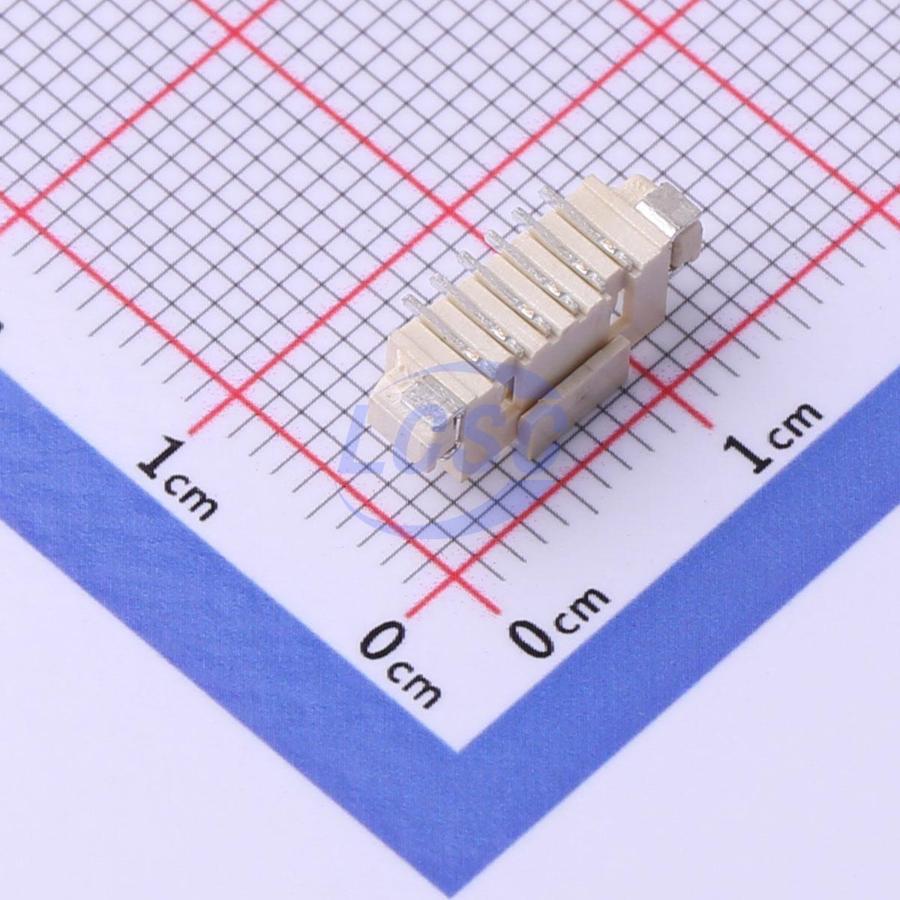

Manufacturer: XUNPU
Mfr. Part #: WAFER-MX1.25-6PLB
Part Number: C3029354
Package: SMD,P=1.25mm
Description: 1x6P PicoBlade(MX 1.25) 6P 6 -25℃~+85℃ 1A 1 1.25mm Brass Surface Mount,Vertical SMD,P=1.25mm Wire To Board Connector ROHS
📦 6505 in stock
Delivers By: Tuesday, November 4, 2025 *
6505 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹11.44
5 - 49 Pieces
₹11.44
(0% off)
50 - 149 Pieces
₹9.15
(20% off)
150 - 1,499 Pieces
₹8.00
(30% off)
1,500 - 2,999 Pieces
₹6.96
(39% off)
3,000 - 4,499 Pieces
₹6.27
(45% off)
4,500+ Pieces
₹5.93
(48% off)
📦 Standard Packaging: 1500/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1.25mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
4.3mm
Pins Structure
1x6P
Reference Series
PicoBlade(MX 1.25)
Number of Pins
6P
Number of PINs Per Row
6
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1.25mm
Voltage Rating
125V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
12.5mm
Z-Height of the Board
4.7mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1500/Piece
