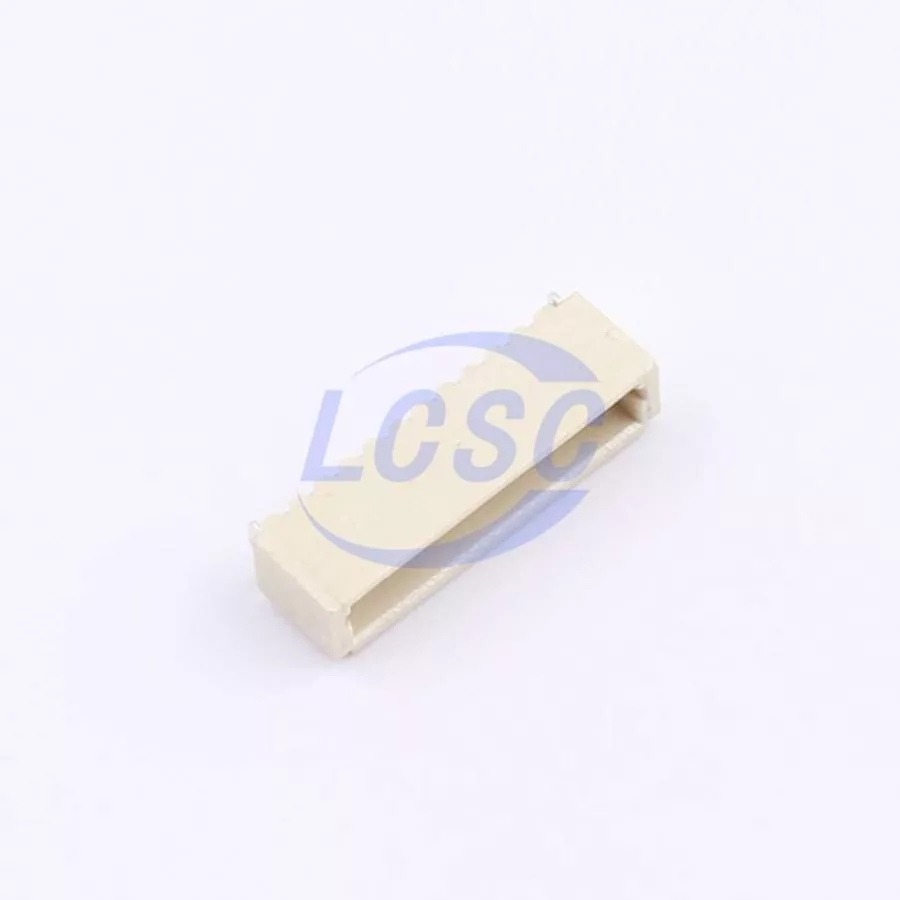

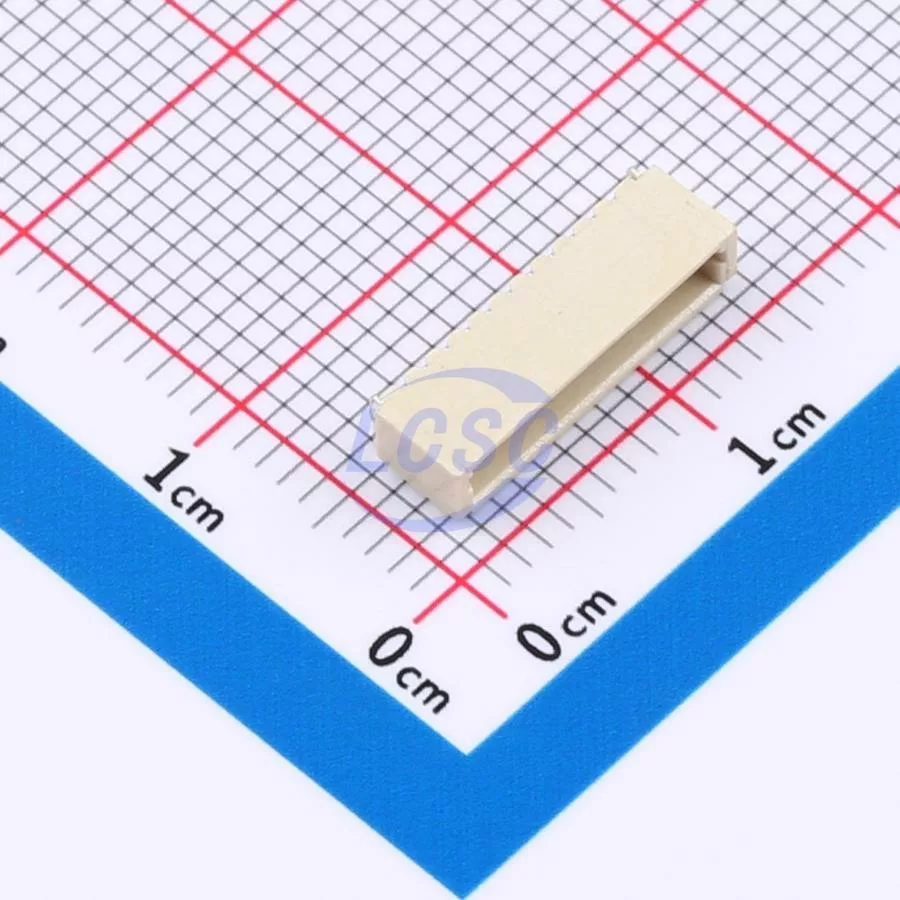

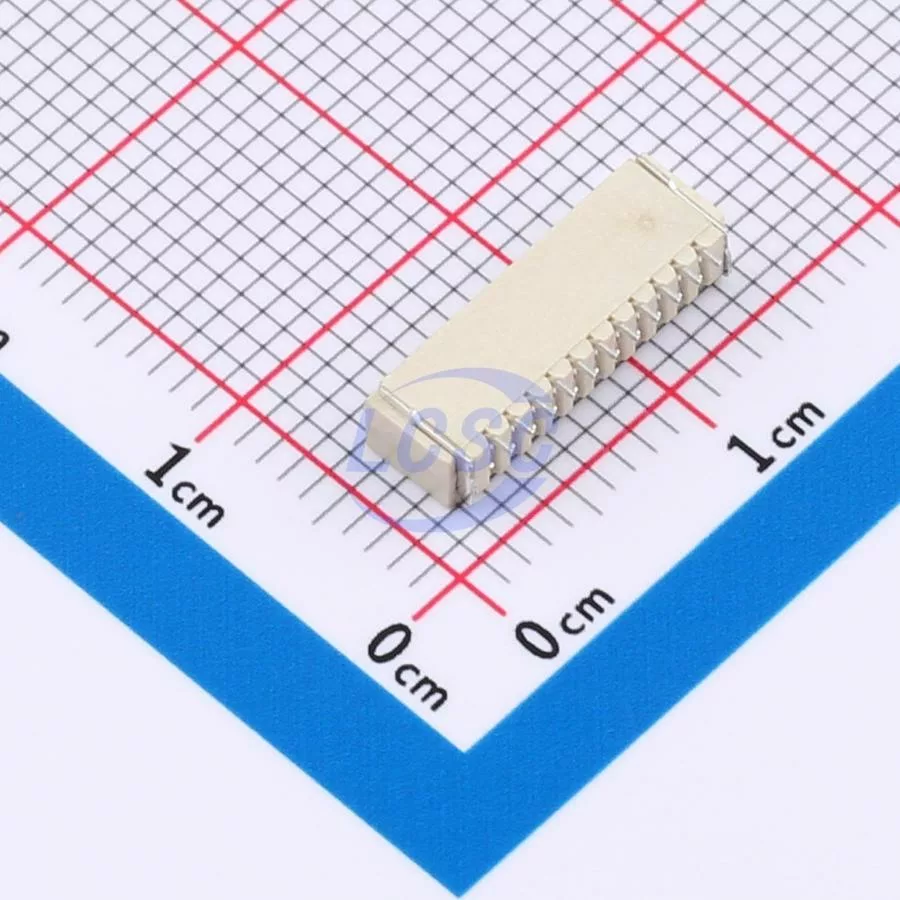

Manufacturer: XUNPU
Mfr. Part #: WAFER-SH1.0-11PWB
Part Number: C22370322
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x11P 11P SH 11 -25℃~+85℃ 1A 1 1mm Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
📦 1885 in stock
Delivers By: Tuesday, November 4, 2025 *
1885 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹26.51
5 - 49 Pieces
₹26.51
(0% off)
50 - 149 Pieces
₹20.81
(21% off)
150 - 499 Pieces
₹18.37
(30% off)
500 - 1,999 Pieces
₹15.35
(42% off)
2,000 - 3,999 Pieces
₹13.98
(47% off)
4,000+ Pieces
₹13.17
(50% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.05mm
Pins Structure
1x11P
Number of Pins
11P
Reference Series
SH
Number of PINs Per Row
11
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Number of Rows
1
Supplementary Features
Auxiliary Solder Pin
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
13.35mm
Z-Height of the Board
3.15mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
