Manufacturer: XUNPU

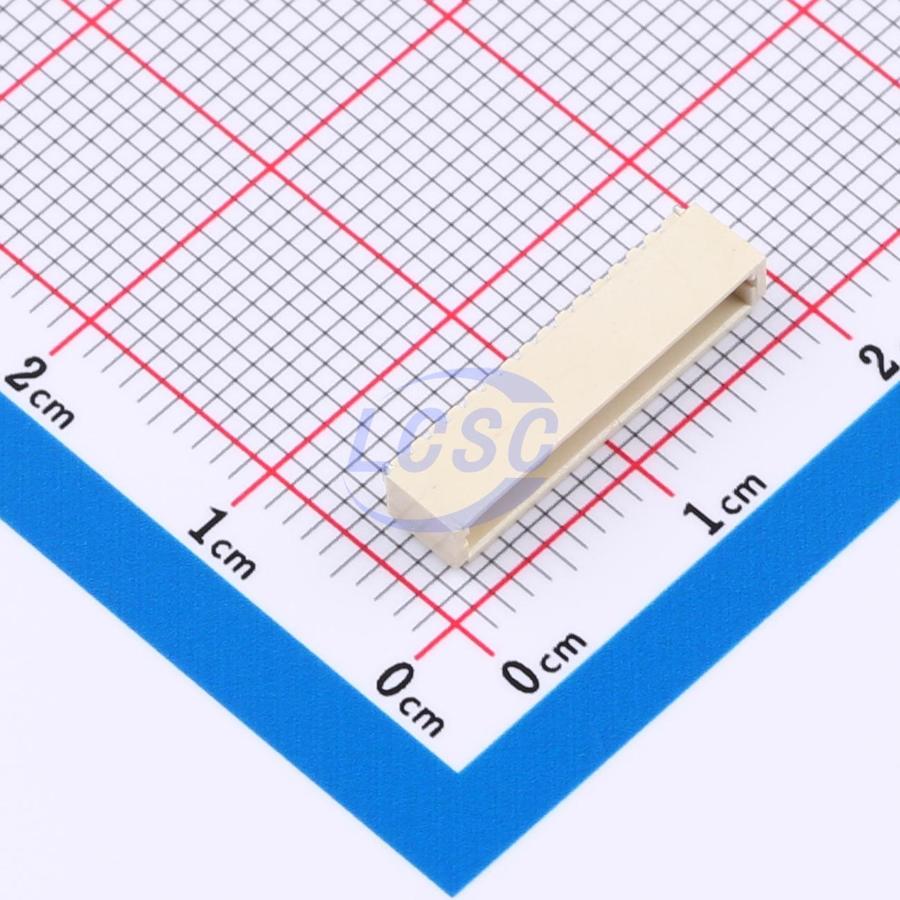

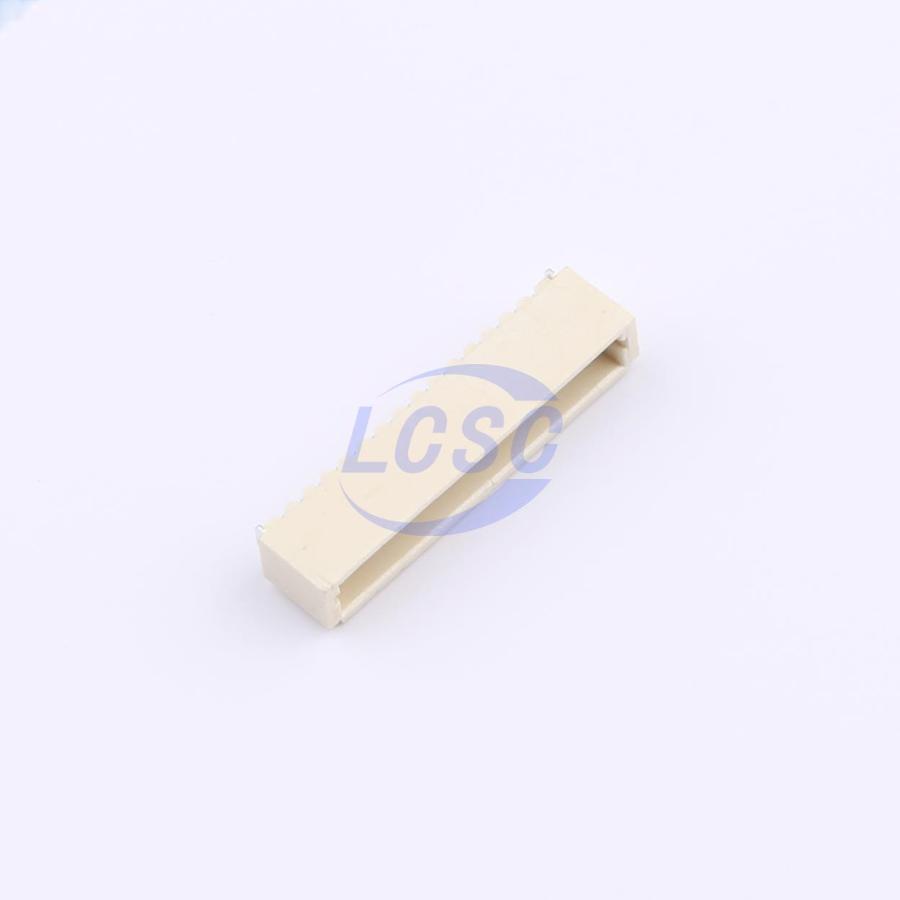

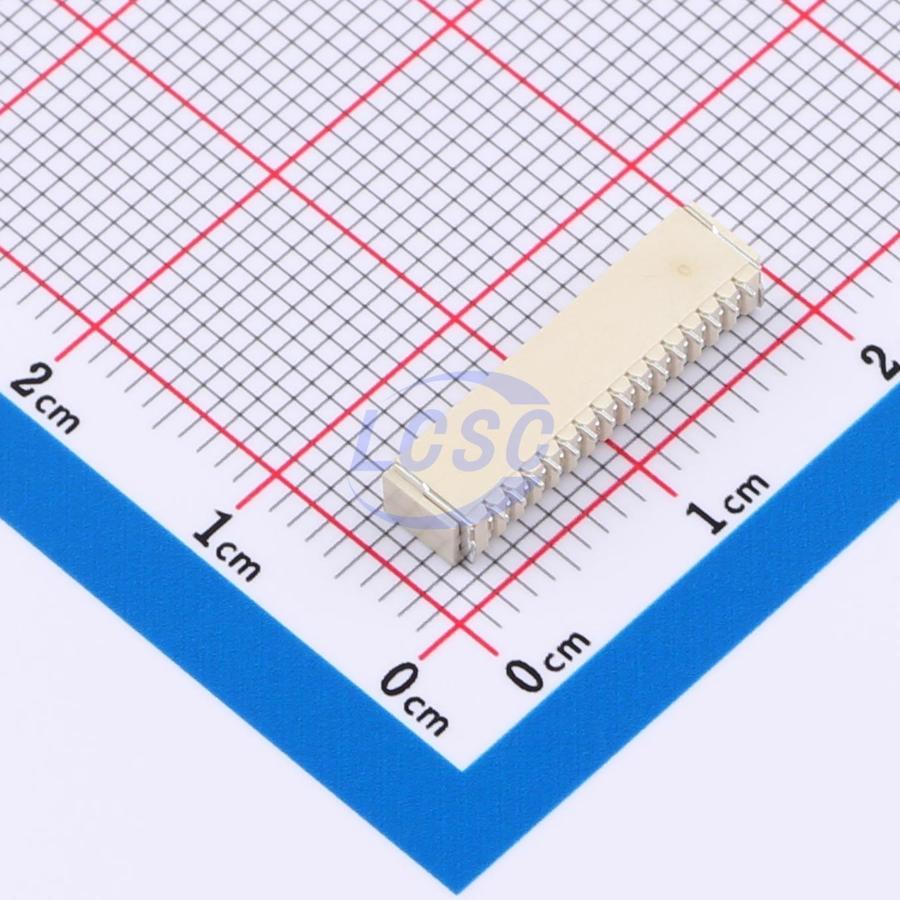

Mfr. Part #: WAFER-SH1.0-15PWB
Part Number: C22370326
Package: SMD,P=1mm,Surface Mount,Right Angle
Description: 1x15P 15P SH 15 -25℃~+85℃ 1A 1 1mm Brass Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.05mm
Pins Structure
1x15P
Number of Pins
15P
Reference Series
SH
Number of PINs Per Row
15
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Number of Rows
1
Supplementary Features
Auxiliary Solder Pin
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
17.35mm
Z-Height of the Board
3.15mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
