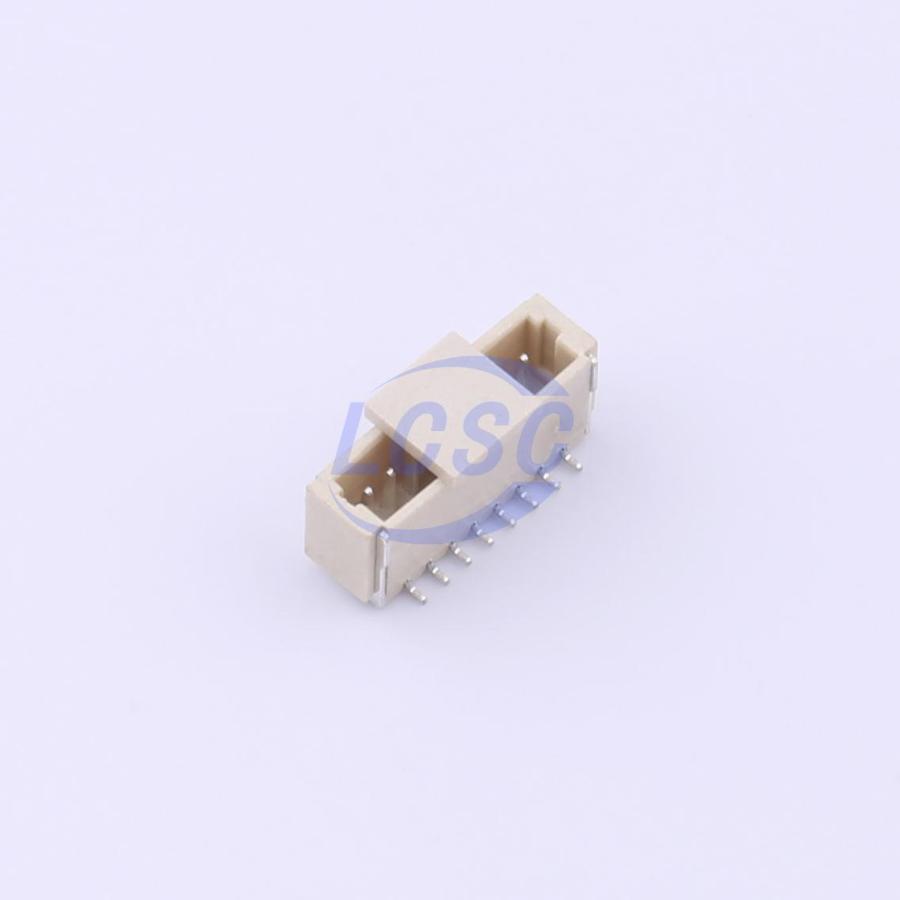

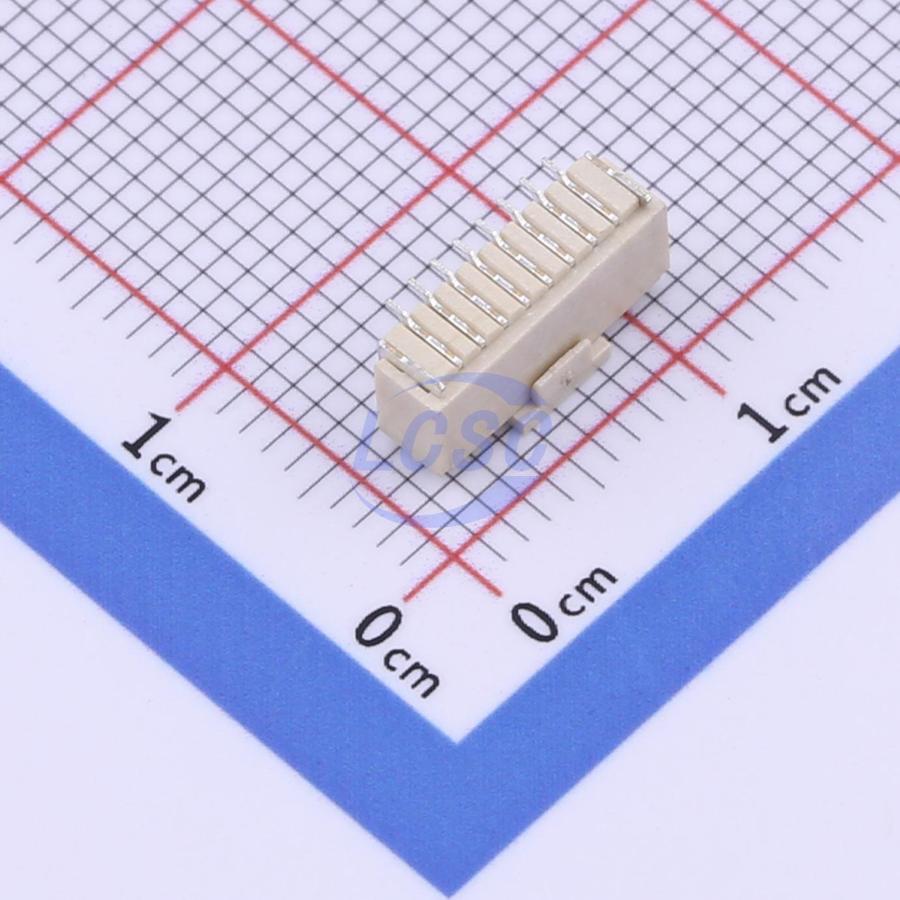

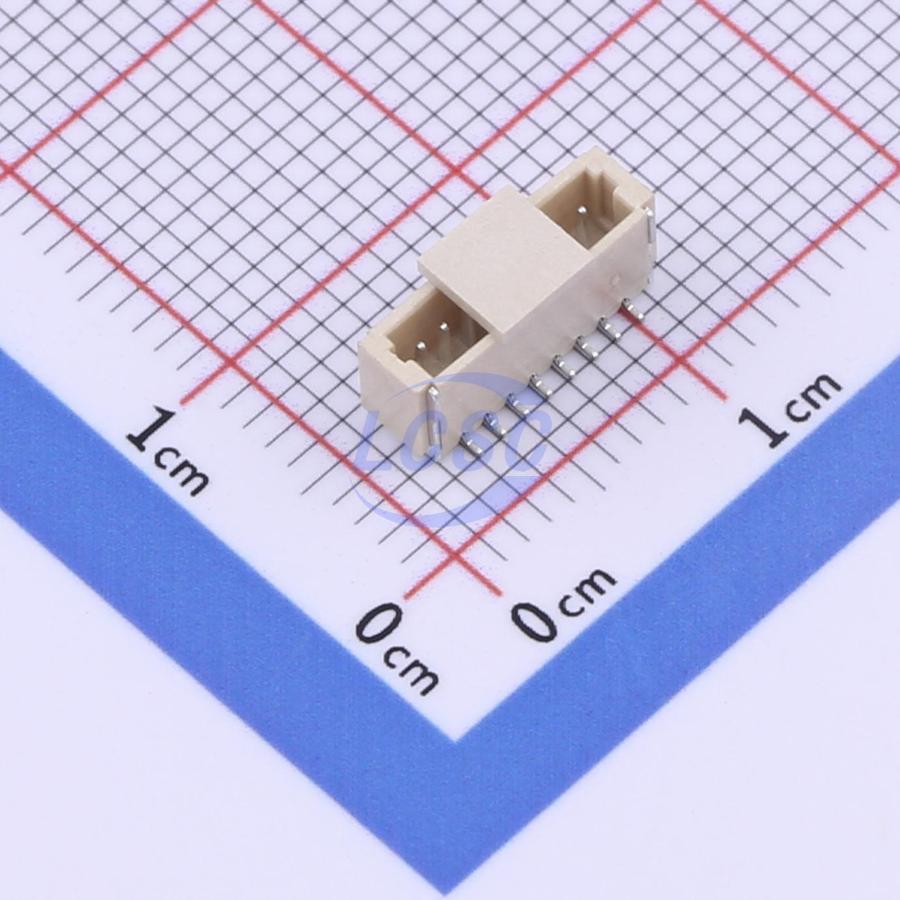

Manufacturer: XUNPU
Mfr. Part #: WAFER-SH1.0-8PLB
Part Number: C3029338
Package: SMD,P=1mm
Description: 1x8P SH 8P 8 -25℃~+85℃ 1A 1 1mm Brass Surface Mount,Vertical SMD,P=1mm Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 1500/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=1mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
3.74mm
Pins Structure
1x8P
Reference Series
SH
Number of Pins
8P
Number of PINs Per Row
8
Operating Temperature
-25℃~+85℃
Current Rating
1A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
1mm
Voltage Rating
50V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
10.35mm
Z-Height of the Board
4.4mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1500/Piece
