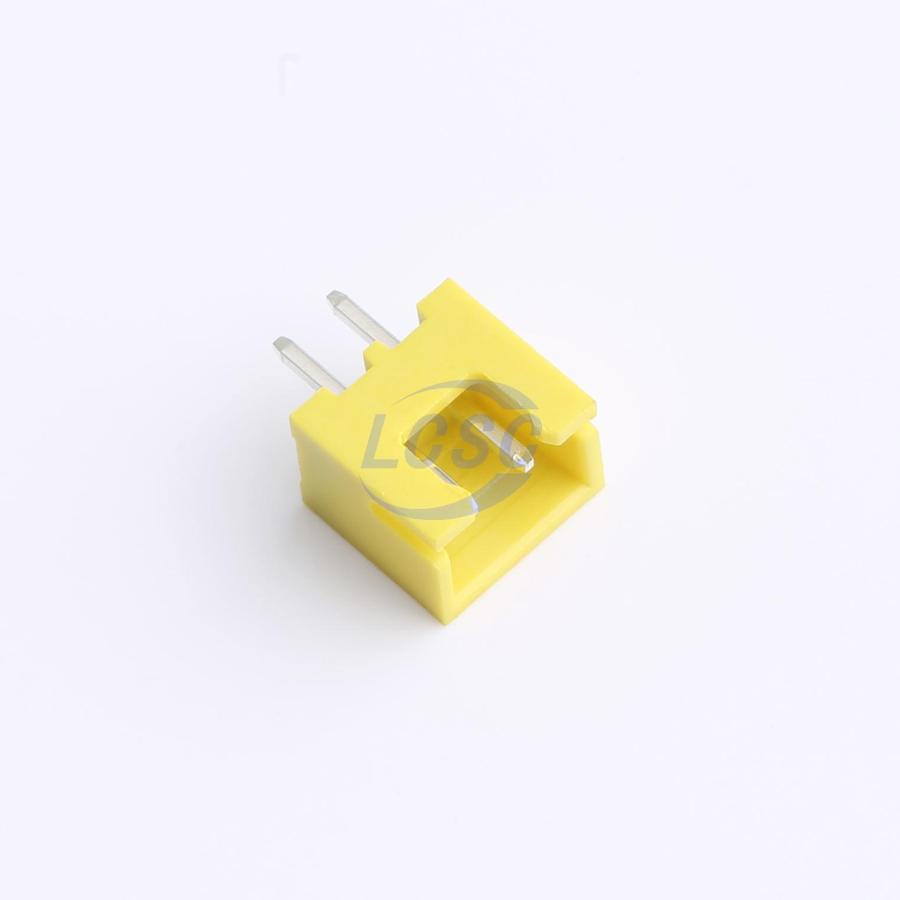

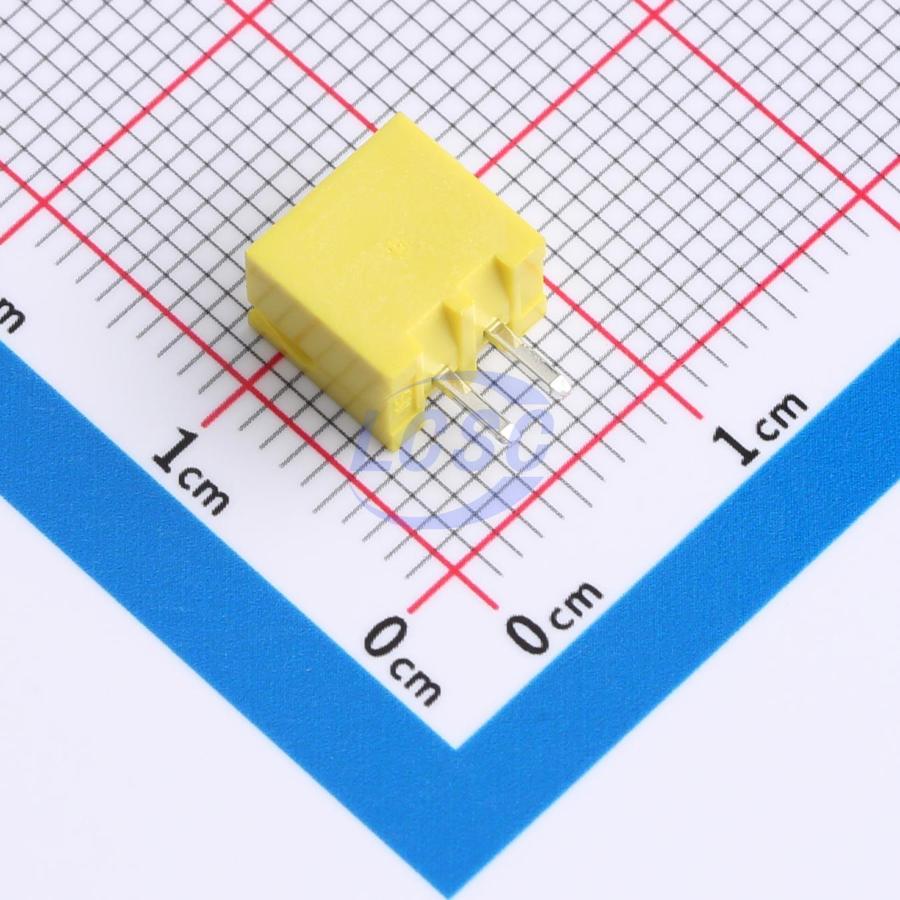

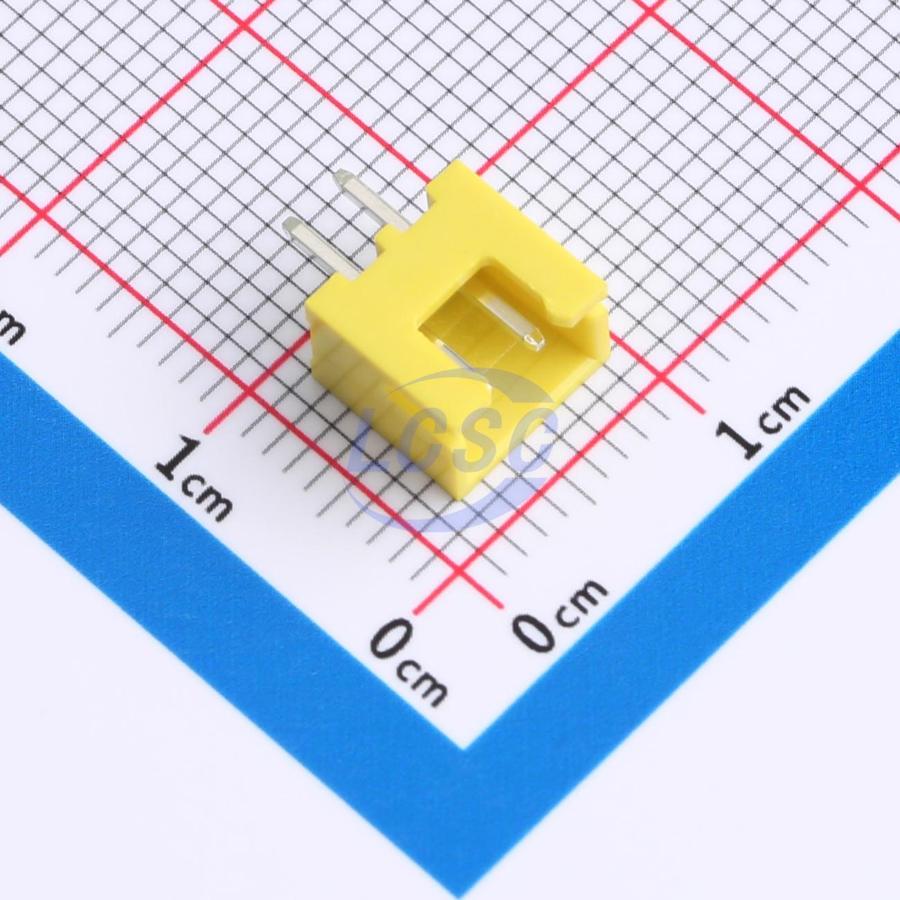

Manufacturer: XUNPU
Mfr. Part #: WAFER-XH2.54-2PZZ-H62
Part Number: C22390477
Package: Through Hole,P=2.54mm
Description: 1x2P XH 2P Tin 2 -25℃~+85℃ 3A 1 2.5mm Copper Alloy Through Hole Through Hole,P=2.54mm Wire To Board Connector ROHS
📦 15020 in stock
Delivers By: Tuesday, November 4, 2025 *
15020 in stock
×
Total:
Bulk Pricing
1 - 19
Pieces
₹2.49
20 - 199 Pieces
₹2.49
(0% off)
200 - 599 Pieces
₹2.16
(13% off)
600 - 1,999 Pieces
₹1.99
(20% off)
2,000 - 9,999 Pieces
₹1.87
(24% off)
10,000 - 19,999 Pieces
₹1.77
(28% off)
20,000+ Pieces
₹1.74
(30% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
XUNPU
Package
Through Hole,P=2.54mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
5.75mm
Pins Structure
1x2P
Reference Series
XH
Number of Pins
2P
Contact Plating
Tin
Number of PINs Per Row
2
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
PA66
Color
Yellow
Number of Rows
1
Flame Retardant Rating
UL94V-2
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Copper Alloy
X-Length of Bottom Edge on Board (Spacing Line)
7.5mm
Z-Height of the Board
7mm
Mounting Type
Through Hole
Additional Information
Minimum Qty: 20
Multiple : 20
Standard Packaging: 2000/Piece
