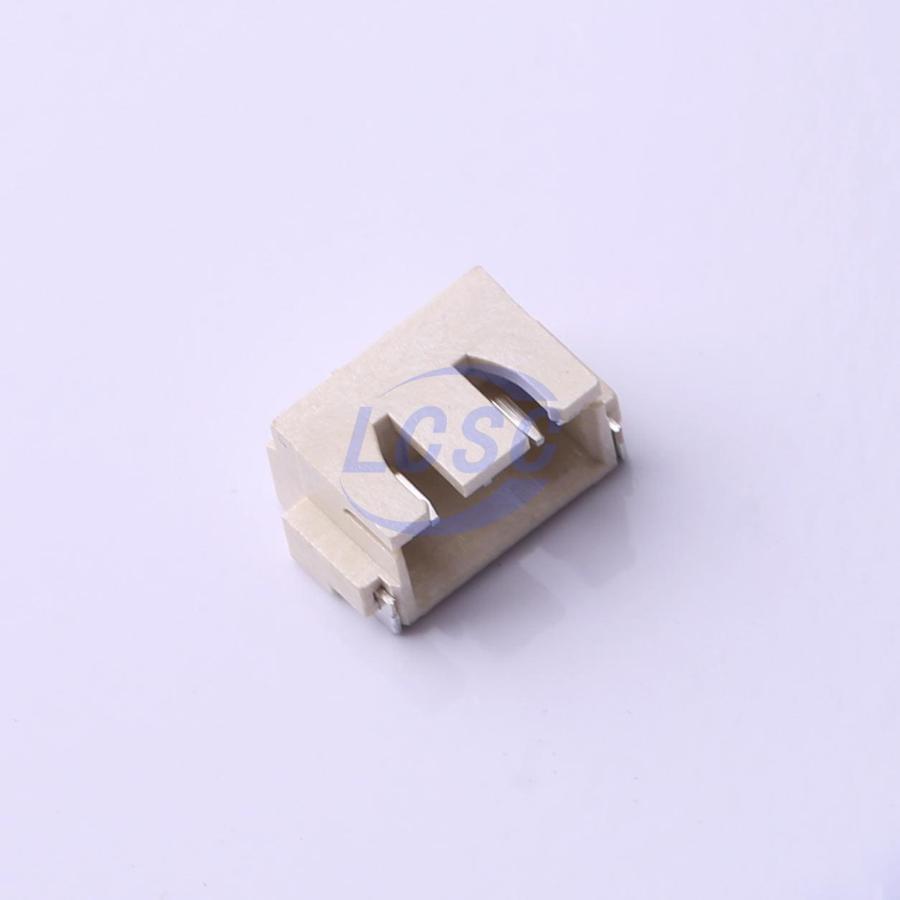

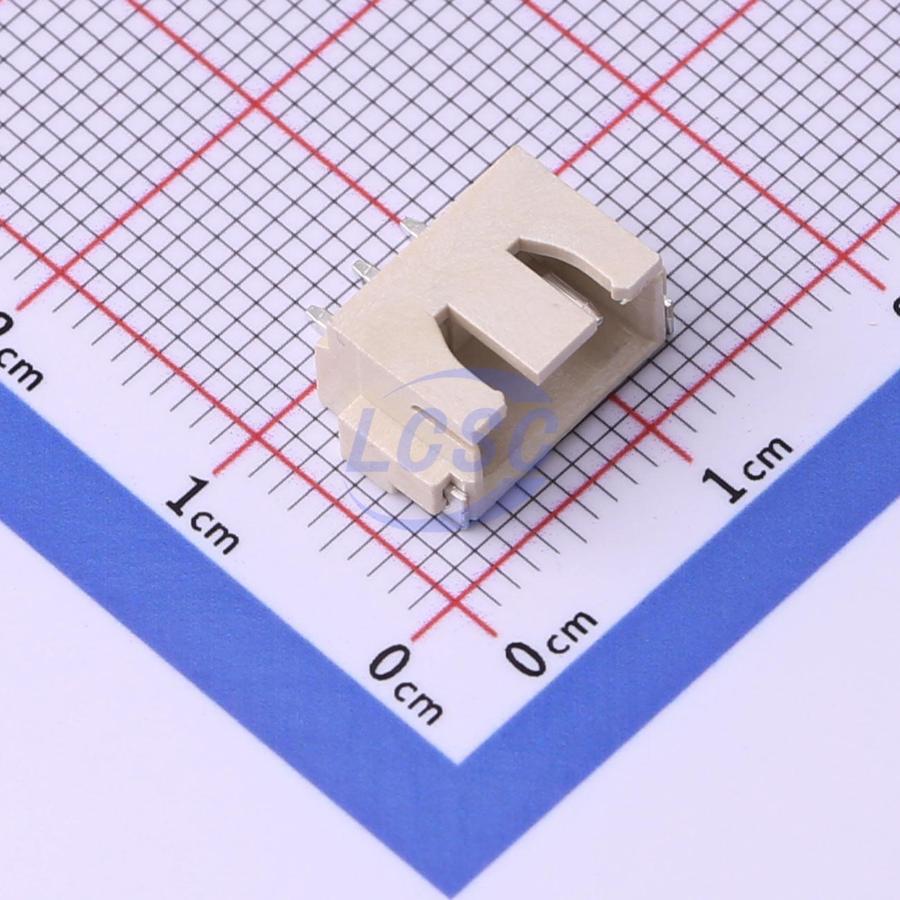

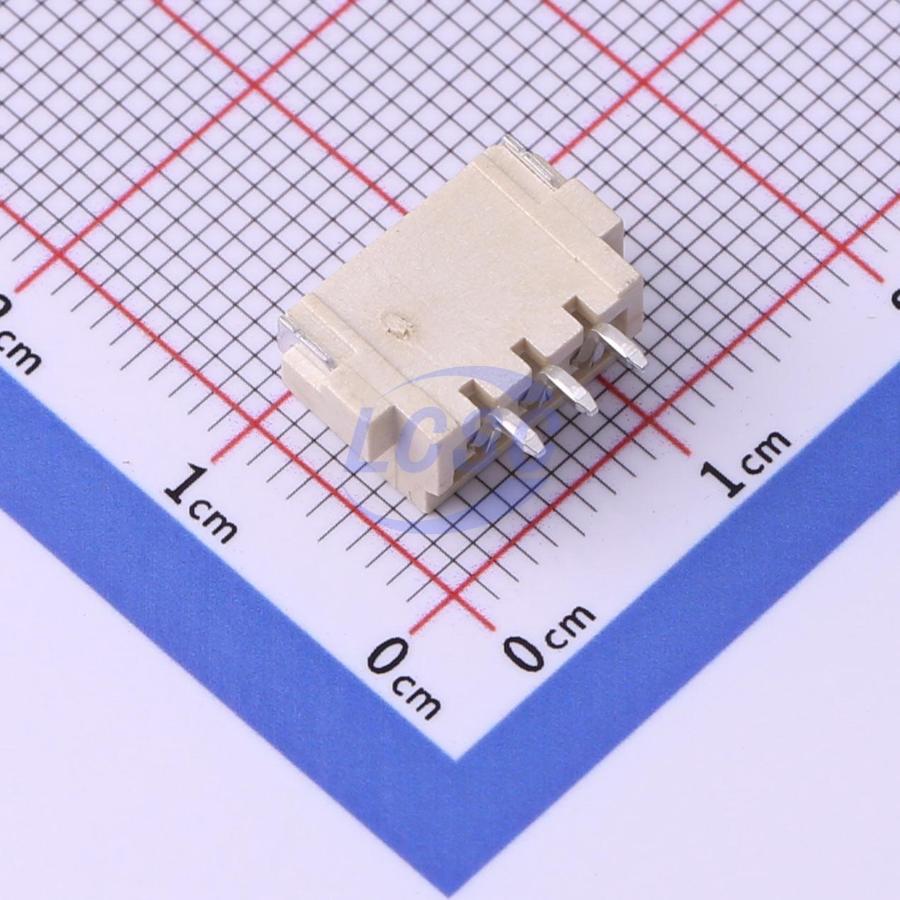

Manufacturer: XUNPU
Mfr. Part #: WAFER-XH2.54-3PWB
Part Number: C3029477
Package: SMD,P=2.5mm,Surface Mount,Right Angle
Description: 1x3P XH 3P 3 -25℃~+85℃ 3A 1 2.5mm Brass Surface Mount, Right Angle SMD,P=2.5mm,Surface Mount,Right Angle Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 700/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=2.5mm,Surface Mount,Right Angle
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
10.5mm
Pins Structure
1x3P
Reference Series
XH
Number of Pins
3P
Number of PINs Per Row
3
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
12.5mm
Z-Height of the Board
6.2mm
Mounting Type
Surface Mount, Right Angle
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 700/Piece
