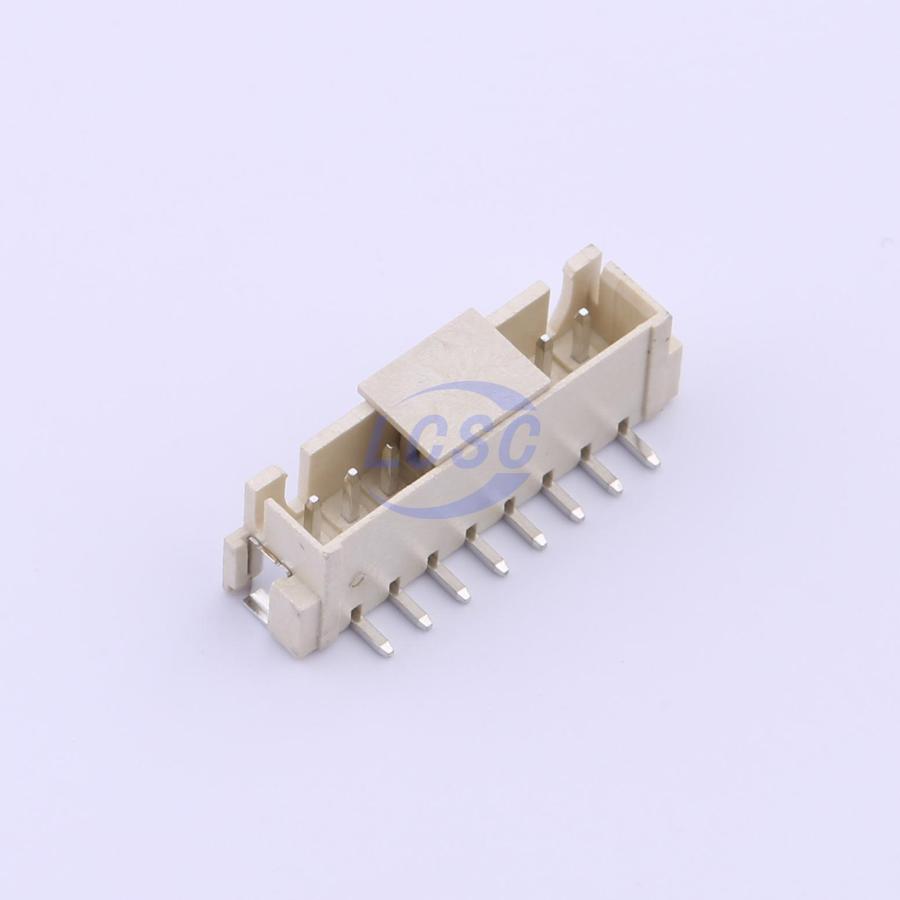

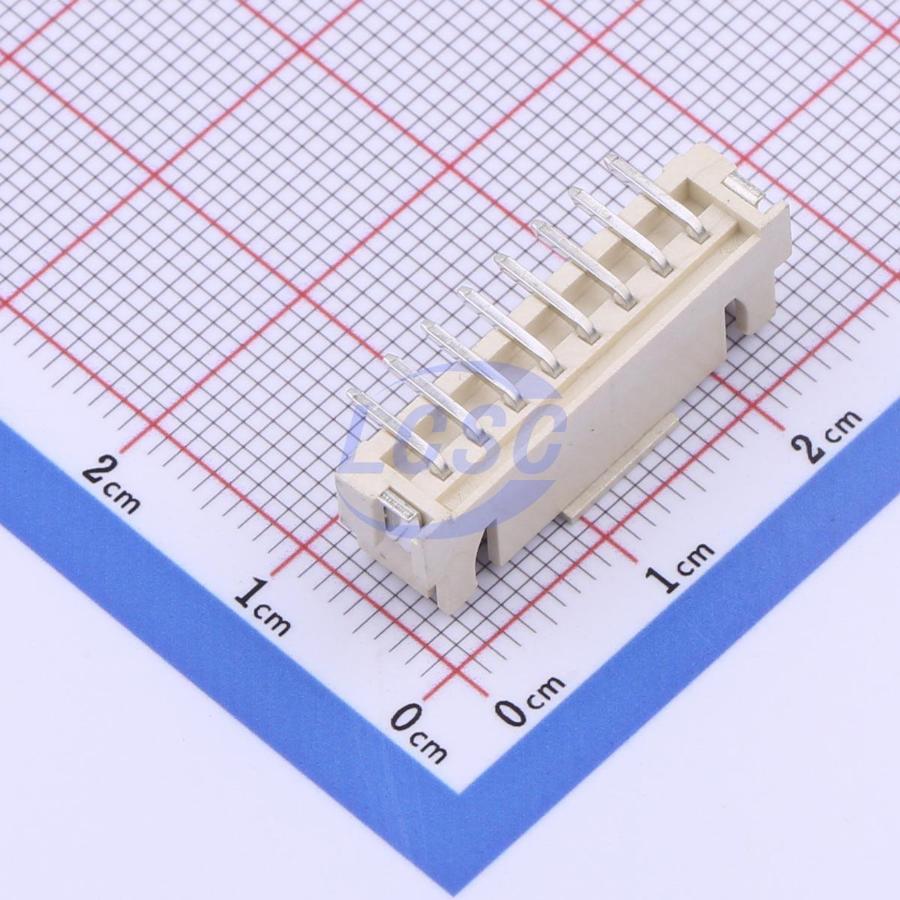

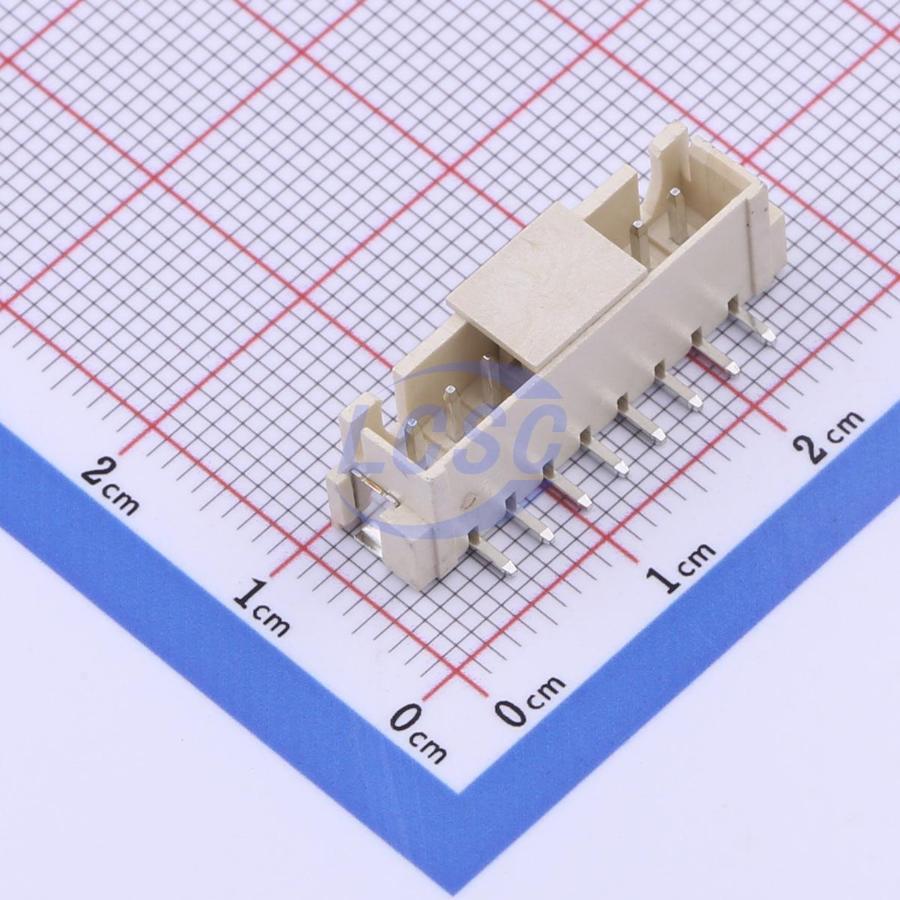

Manufacturer: XUNPU
Mfr. Part #: WAFER-XH2.54-8PLB
Part Number: C3029473
Package: SMD,P=2.5mm
Description: 1x8P XH 8P 8 -25℃~+85℃ 3A 1 2.5mm Brass Surface Mount,Vertical SMD,P=2.5mm Wire To Board Connector ROHS
Delivers By: Thursday, March 5, 2026 *
Out of stock
📦 Standard Packaging: 500/Piece
Products Specifications
Manufacturer
XUNPU
Package
SMD,P=2.5mm
Category
Connectors/Wire To Board Connector
Y-Width of Bottom Edge on Board
8.3mm
Pins Structure
1x8P
Reference Series
XH
Number of Pins
8P
Number of PINs Per Row
8
Operating Temperature
-25℃~+85℃
Current Rating
3A
Plastic Material
LCP
Color
Beige
Supplementary Features
Auxiliary Solder Pin
Number of Rows
1
Pitch
2.5mm
Voltage Rating
250V
Contact Material
Brass
X-Length of Bottom Edge on Board (Spacing Line)
25mm
Z-Height of the Board
7.9mm
Mounting Type
Surface Mount,Vertical
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 500/Piece
