Manufacturer: ZY
Mfr. Part #: ZZY381641
Part Number: C7426351
Package: -

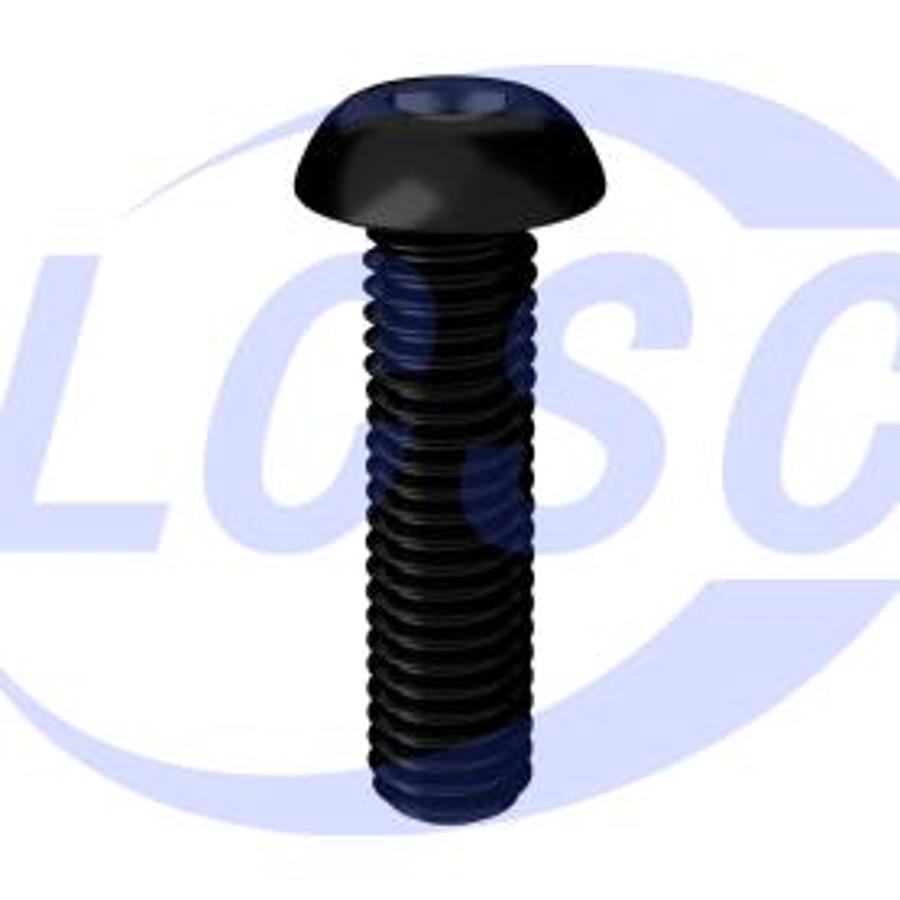

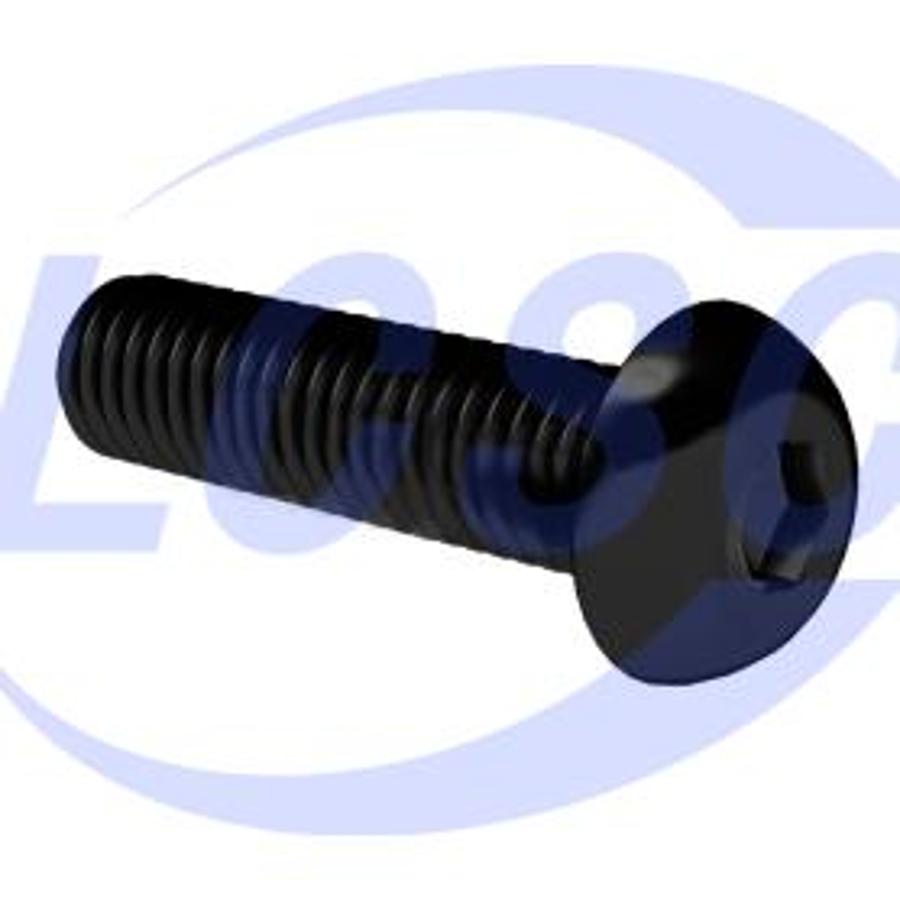

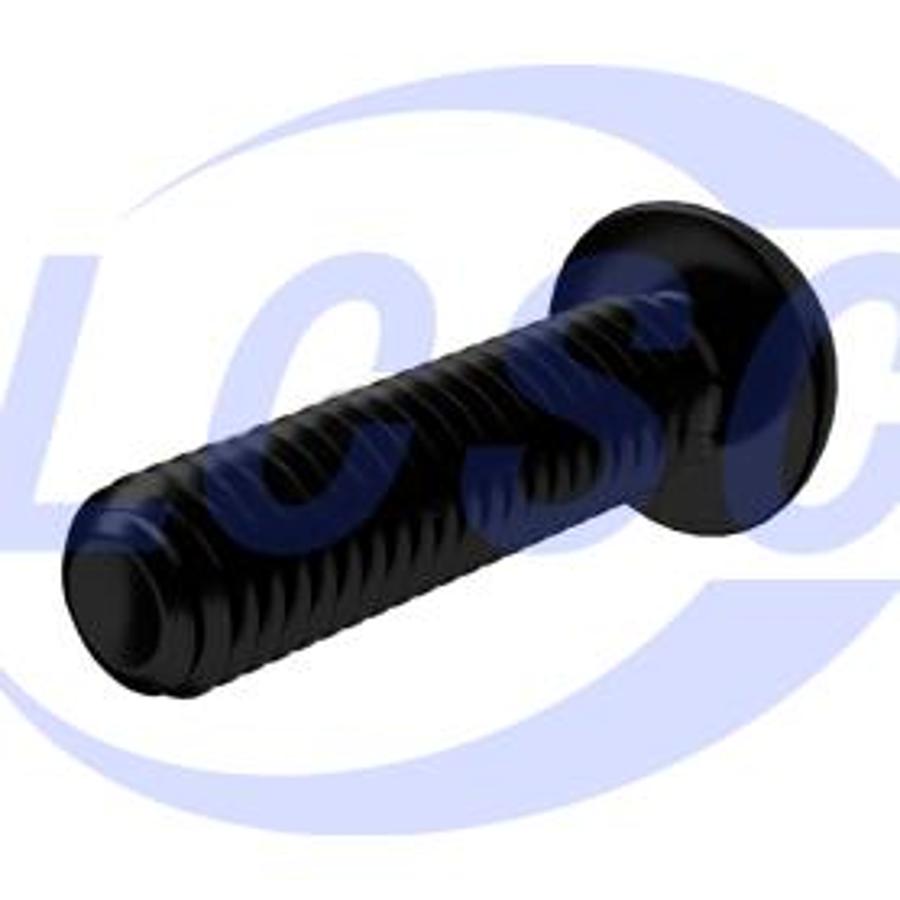

Description: Hexagon socket pan head screw
Delivers By: Sunday, December 14, 2025 *
Out of stock
📦 Standard Packaging: 20/Piece
Products Specifications
Manufacturer
ZY
Category
Hardware Fasteners/Hexagon socket pan head screw
Thread gauge
OK
material quality
20MnTiB (Alloy Steel)
Nominal length
99.3-100.7
surface treatment
Black Oxide
Head diameter
27.48-28
specifications
M16*100
Groove type
Hex socket
Rotation direction
Right-Handed Rotation
Hexagonal opposite sides
10.025-10.175
End processing
Flat tail
Dental form
Machine thread
Cusp angle
60
Tooth outer diameter
15.682-15.962
Groove depth
min5.2
Performance level
Class 10.9
Headform
Flat Round Head
Interdental distance
2
Tensile strength (N\u002Fmm ²)
min1040
Head thickness
8.44-8.80
Hardness (HRC)
32-39
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 20/Piece
