Manufacturer: Broadcom Limited

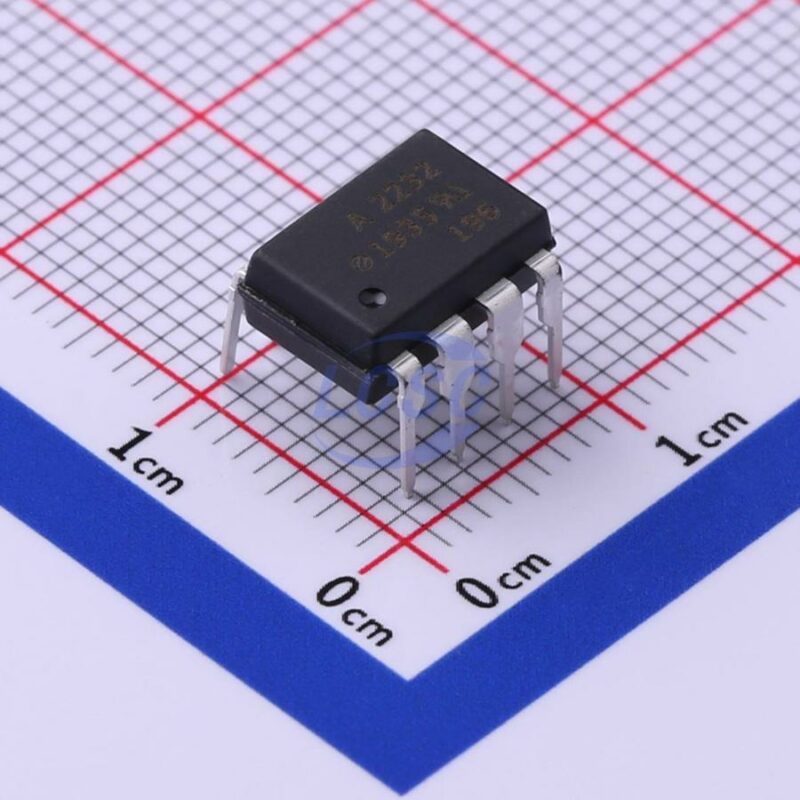

Mfr. Part #: HCPL-2232-000E
Part Number: C545698
Package: DIP-8
Description: 10kV/us 5Mbps 4.5V~20V DC DIP-8 Logic Output Optoisolators ROHS
Delivers By: Wednesday, March 18, 2026 *
Out of stock
📦 Standard Packaging: 50/Piece
Products Specifications
Manufacturer
Broadcom Limited
Package
DIP-8
Category
Optoisolators/Logic Output Optoisolators
CMTI(kV/us)
10kV/us
High level Delay Time
110ns
Data Rate
5Mbps
Low level Delay Time
160ns
Input threshold current
1.6mA
Number of Channels
1
power dissipation
294mW
Voltage - Supply
4.5V~20V
Operating Temperature
-40℃~+85℃
Isolation Voltage(Vrms)
3.75kV
Input Type
DC
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 50/Piece
Related Resources
- Datasheet
- EasyEDA Model
