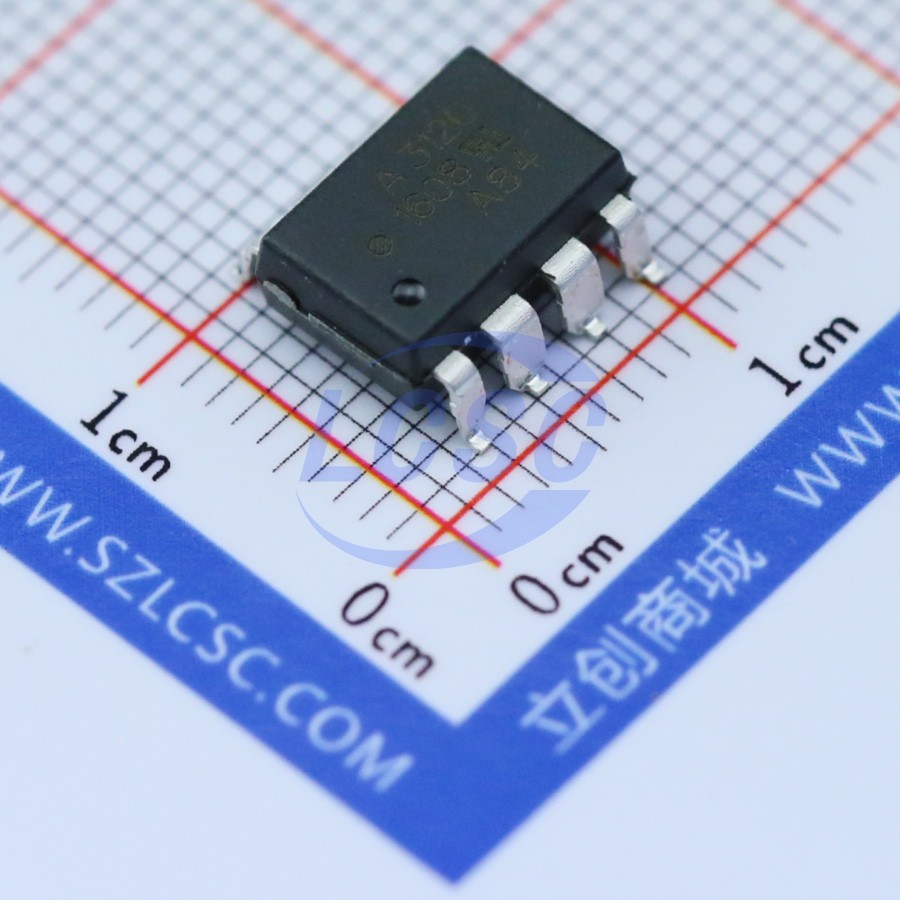

Manufacturer: Broadcom Limited
Mfr. Part #: HCPL-3120-500E
Part Number: C36986
Package: SOP-8-2.54mm
Description: 35kV/us 15V~30V DC SOP-8-2.54mm Logic Output Optoisolators ROHS
Delivers By: Wednesday, March 18, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Broadcom Limited
Package
SOP-8-2.54mm
Category
Optoisolators/Logic Output Optoisolators
CMTI(kV/us)
35kV/us
High level Delay Time
500ns
Low level Delay Time
500ns
Input threshold current
8mA
Number of Channels
1
power dissipation
295mW
Voltage - Supply
15V~30V
Operating Temperature
-40℃~+100℃
Isolation Voltage(Vrms)
3.75kV
Input Type
DC
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 1000/Piece
