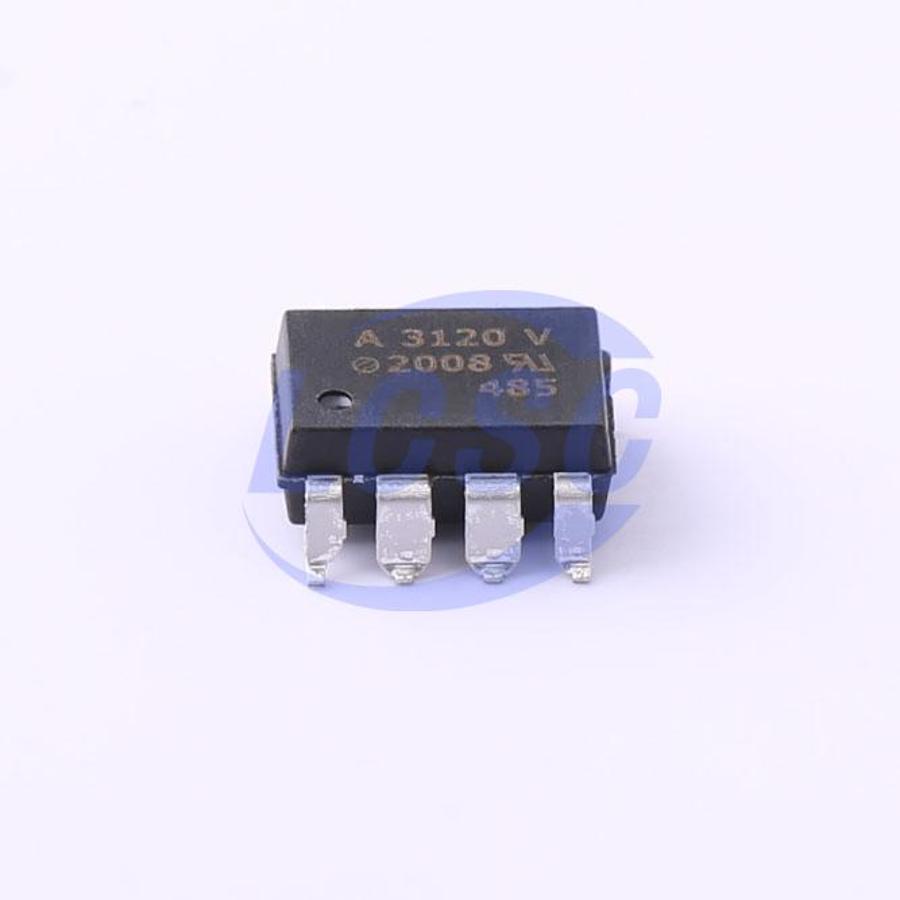

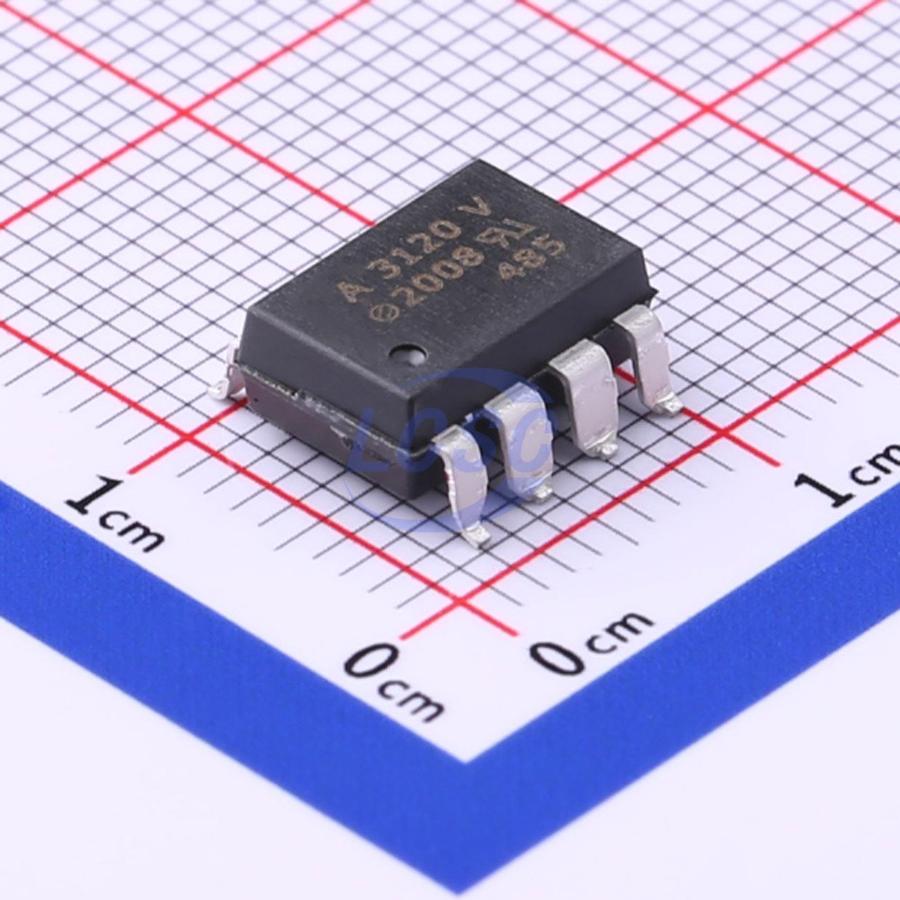

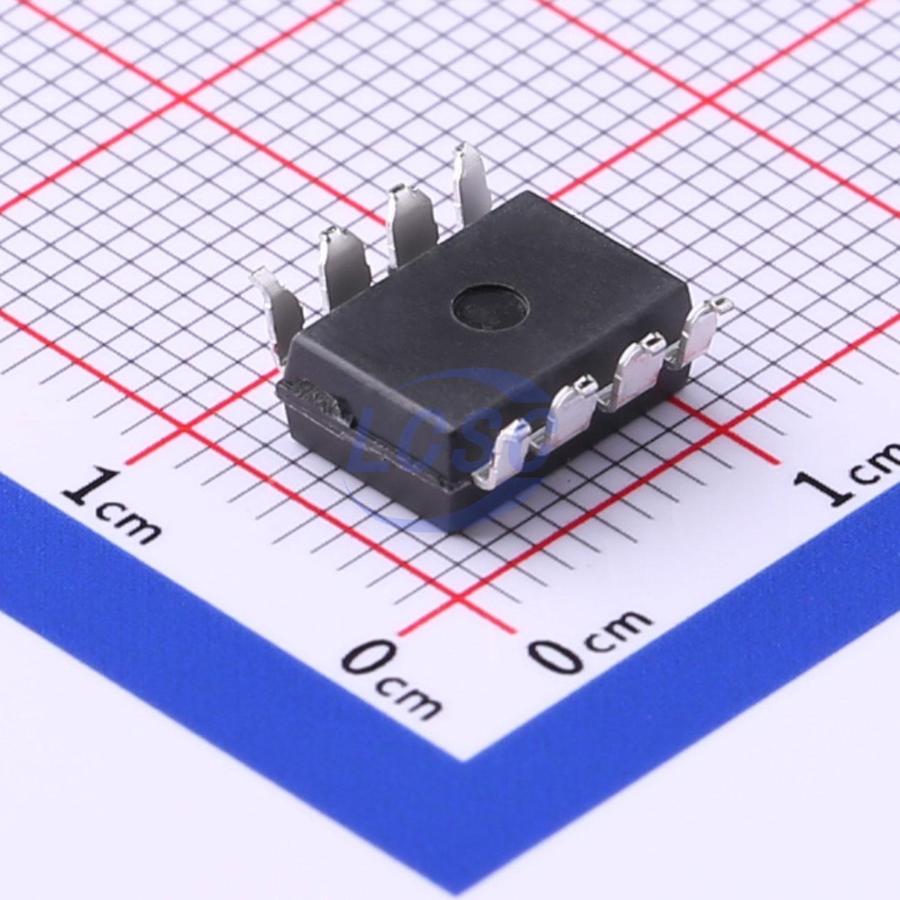

Manufacturer: Broadcom Limited
Mfr. Part #: HCPL-3120-560E
Part Number: C692034
Package: SOP-8-2.54mm
Description: 25kV/us 15V~30V DC SOP-8-2.54mm Logic Output Optoisolators ROHS
📦 1063 in stock
Delivers By: Friday, November 14, 2025 *
1063 in stock
×
Total:
Bulk Pricing
1 - 9
Pieces
₹181.81
10 - 29 Pieces
₹149.99
(17% off)
30 - 99 Pieces
₹132.53
(27% off)
100 - 499 Pieces
₹112.68
(38% off)
500 - 999 Pieces
₹97.85
(46% off)
1,000+ Pieces
₹93.79
(48% off)
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Broadcom Limited
Package
SOP-8-2.54mm
Category
Optoisolators/Logic Output Optoisolators
CMTI(kV/us)
25kV/us
High level Delay Time
500ns
Low level Delay Time
500ns
Input threshold current
5mA
Number of Channels
1
power dissipation
295mW
Voltage - Supply
15V~30V
Operating Temperature
-40℃~+100℃
Isolation Voltage(Vrms)
3.75kV
Input Type
DC
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 1000/Piece
