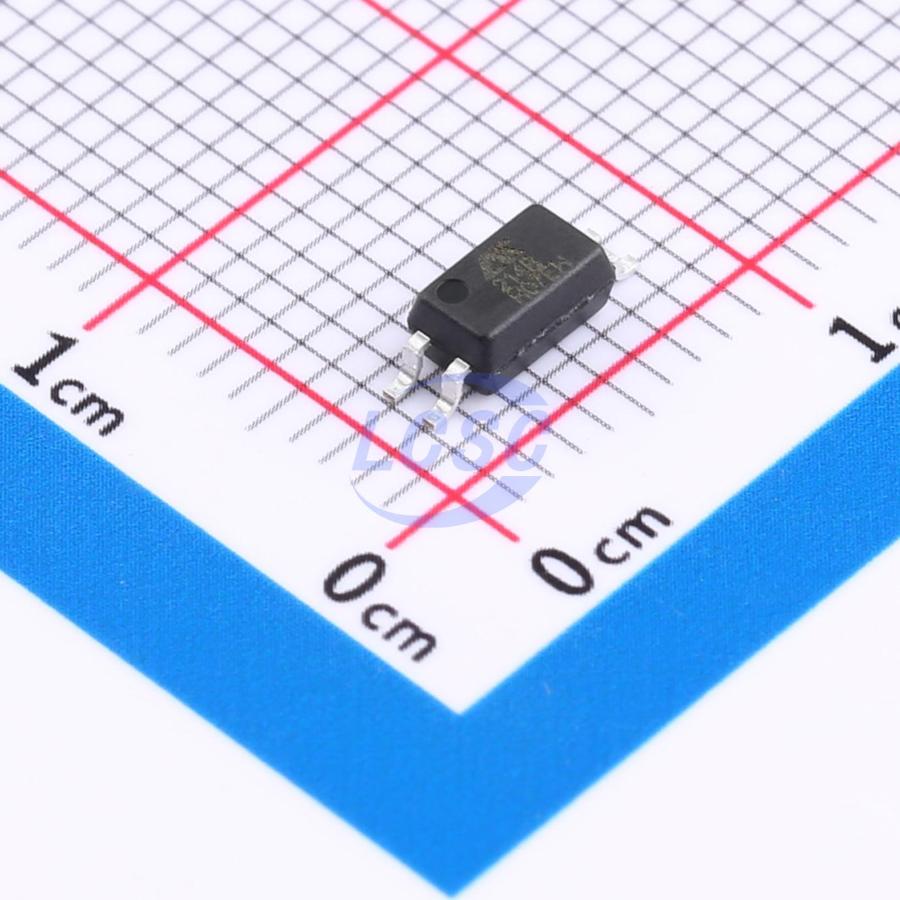

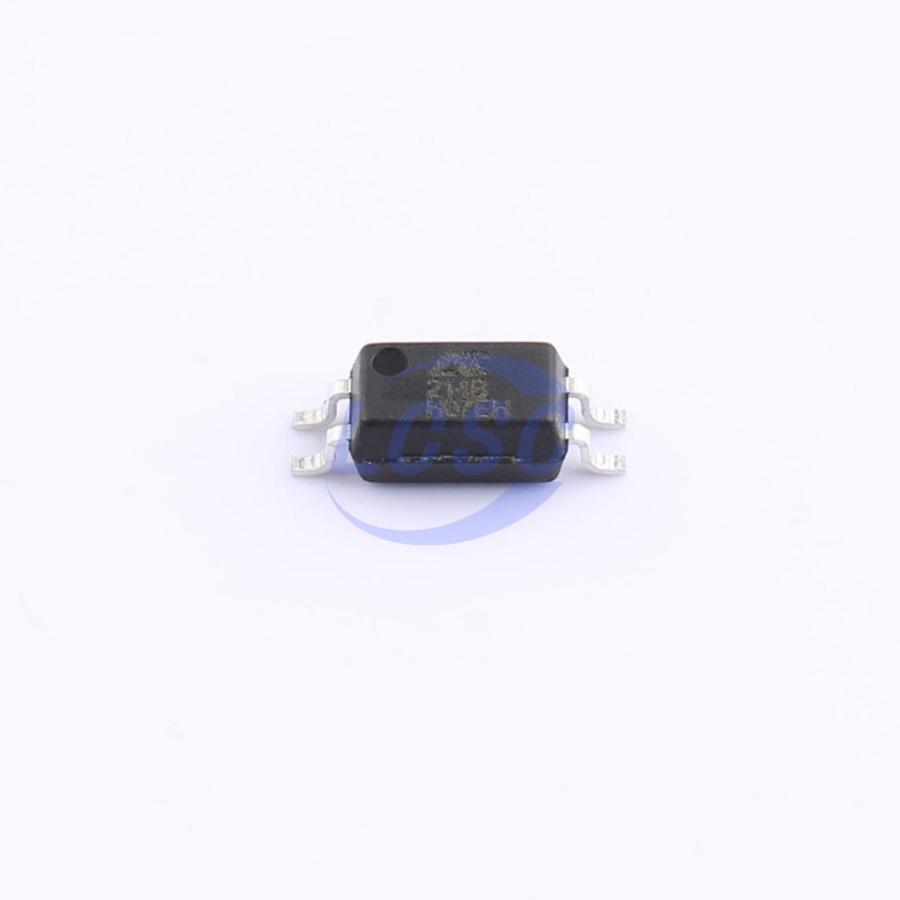

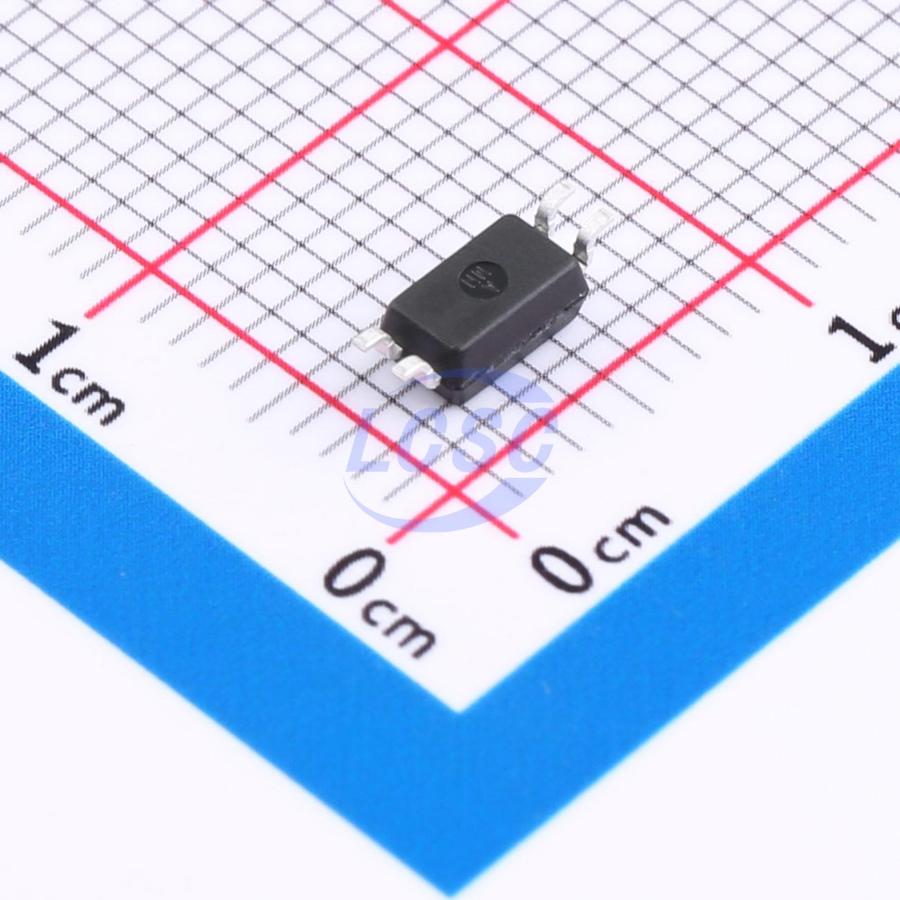

Manufacturer: AOTE
Mfr. Part #: ACPL-214(AT)
Part Number: C48686293
Package: SSOP-4
Description: 80V 3.75kV 50mA 100mV@20mA,1mA 1 1.2V DC SSOP-4 Transistor, Photovoltaic Output Optoisolators ROHS
Delivers By: Monday, March 16, 2026 *
Out of stock
📦 Standard Packaging: 5000/Piece
Products Specifications
Manufacturer
AOTE
Package
SSOP-4
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Operating Temperature
55℃~+110℃
Isolation Voltage(Vrms)
3.75kV
Output Current
50mA
Fall time
18us
Rise time
18us
Vce Saturation(VCE(sat))
100mV@20mA,1mA
Number of Outputs
1
Voltage - Forward(Vf)
1.2V
Forward Current(If)
50mA
Total Power Dissipation(Pd)
200mW
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
300%
Current Transfer Ratio (CTR) Minimum
20%
Output Type
Phototransistor
Input type
DC
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 5000/Piece
