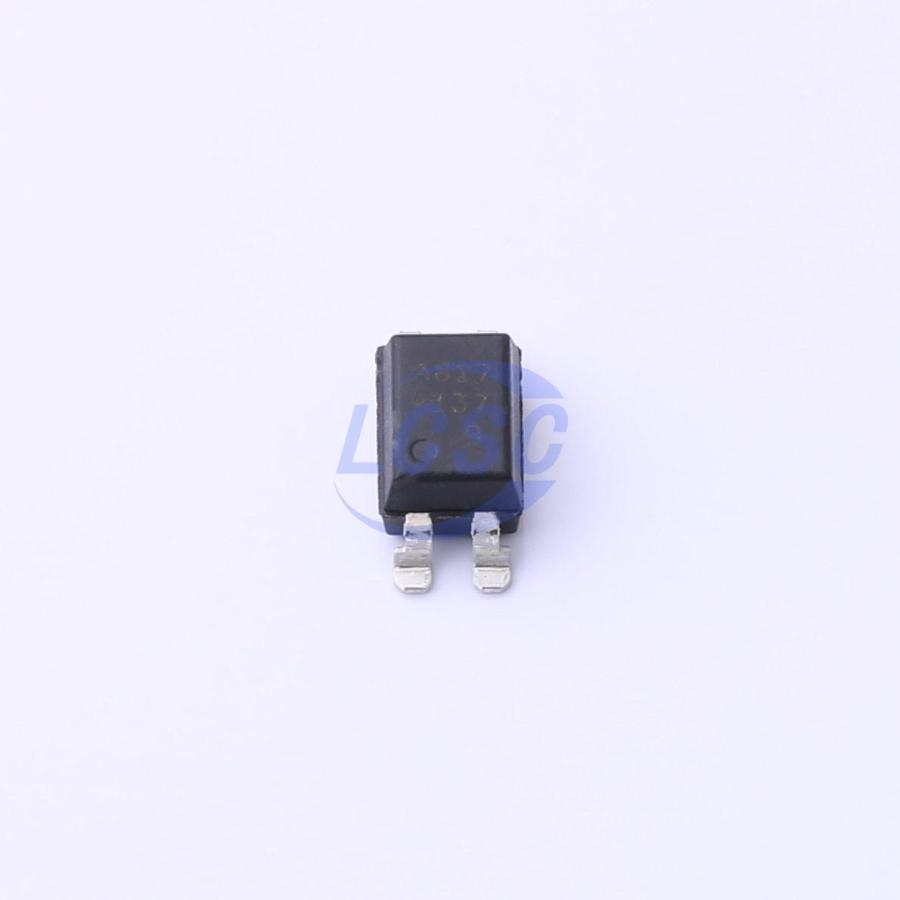

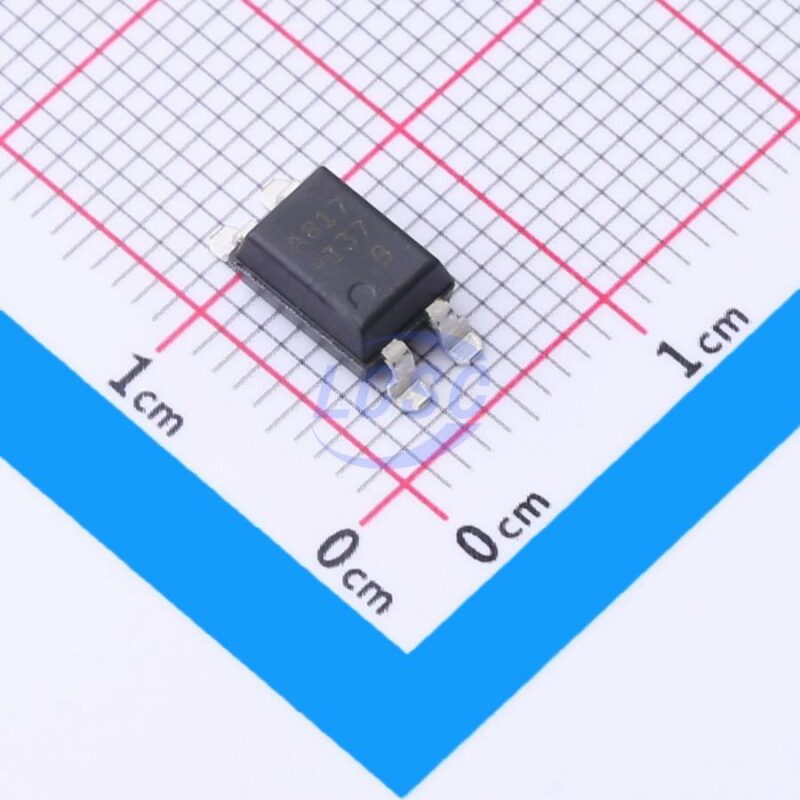

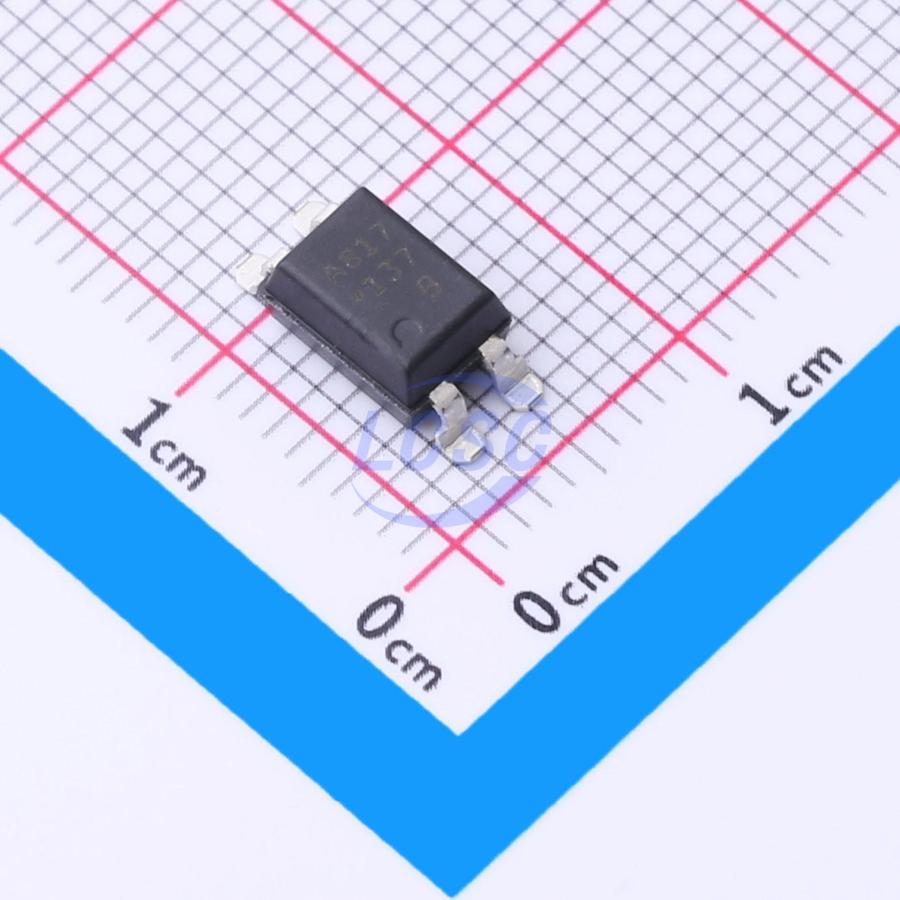

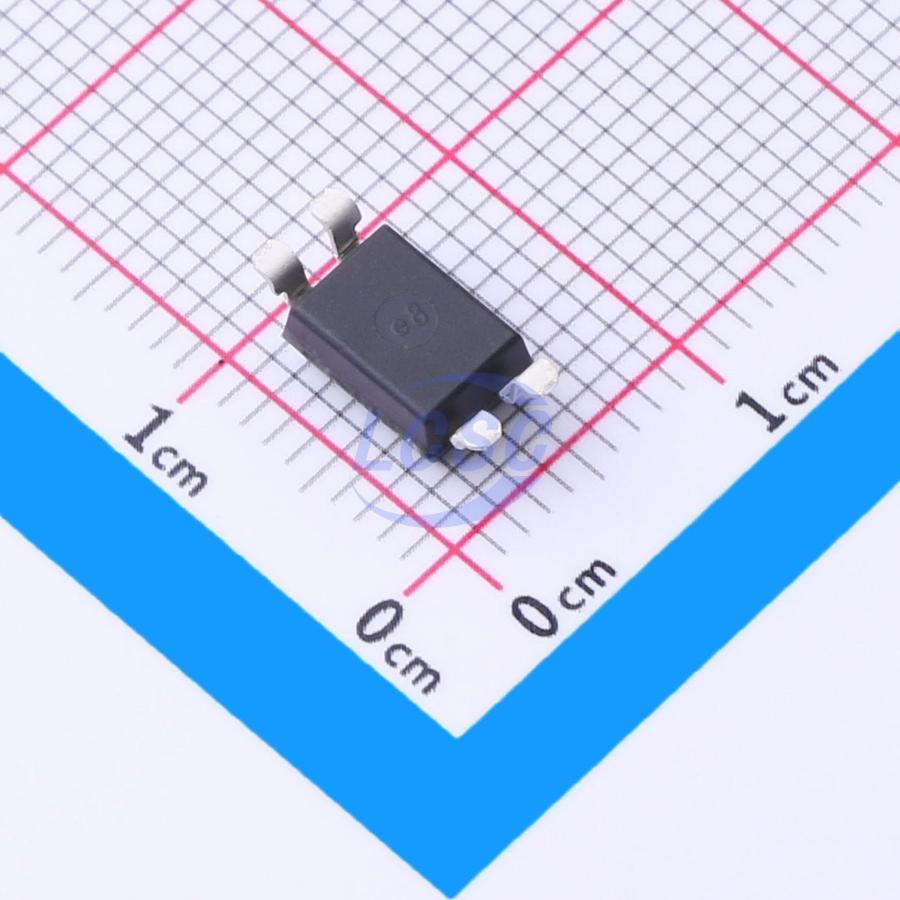

Manufacturer: Broadcom Limited
Mfr. Part #: HCPL-817-50BE
Part Number: C2927831
Package: SMD-4P
Description: 70V 5kV 30mA 100mV@20mA,1mA 1 6V 1.2V SMD-4P Transistor, Photovoltaic Output Optoisolators ROHS
Delivers By: Wednesday, March 18, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Broadcom Limited
Package
SMD-4P
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
70V
Fall time
3us
Operating Temperature
-30℃~+100℃
Rise time
4us
Isolation Voltage(Vrms)
5kV
Output Current
30mA
Vce Saturation(VCE(sat))
100mV@20mA,1mA
Number of Outputs
1
Reverse Voltage
6V
Voltage - Forward(Vf)
1.2V
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
600%
Current Transfer Ratio (CTR) Minimum
50%
Output Type
Phototransistor
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
