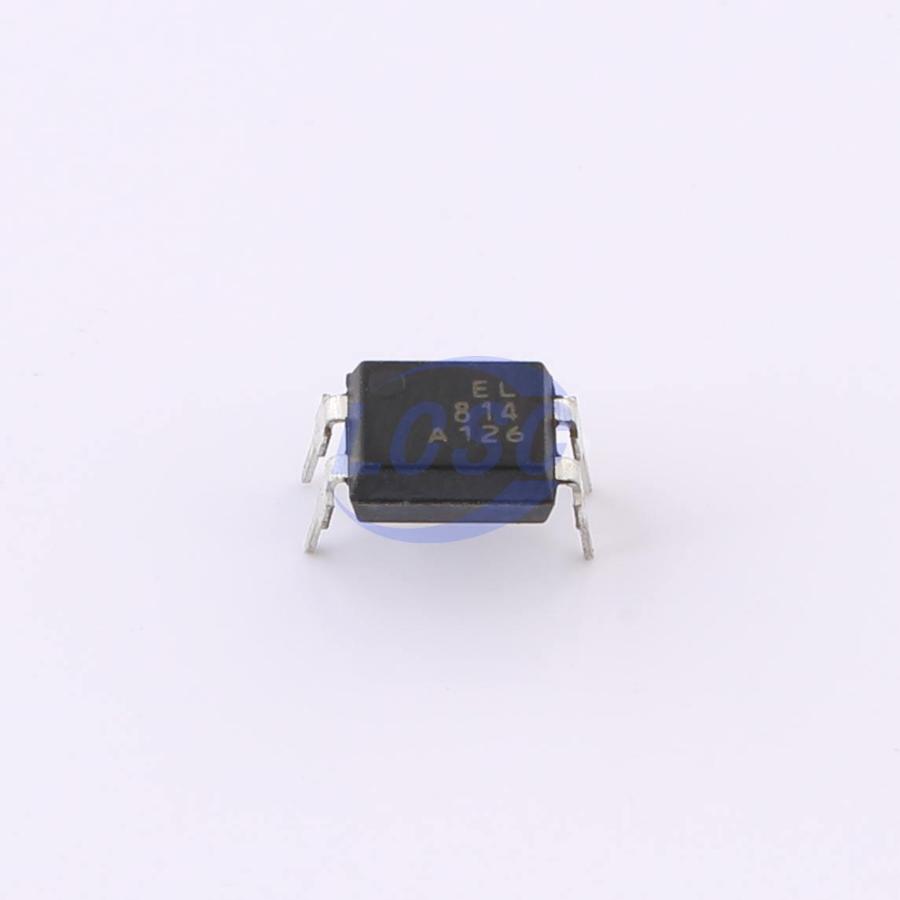

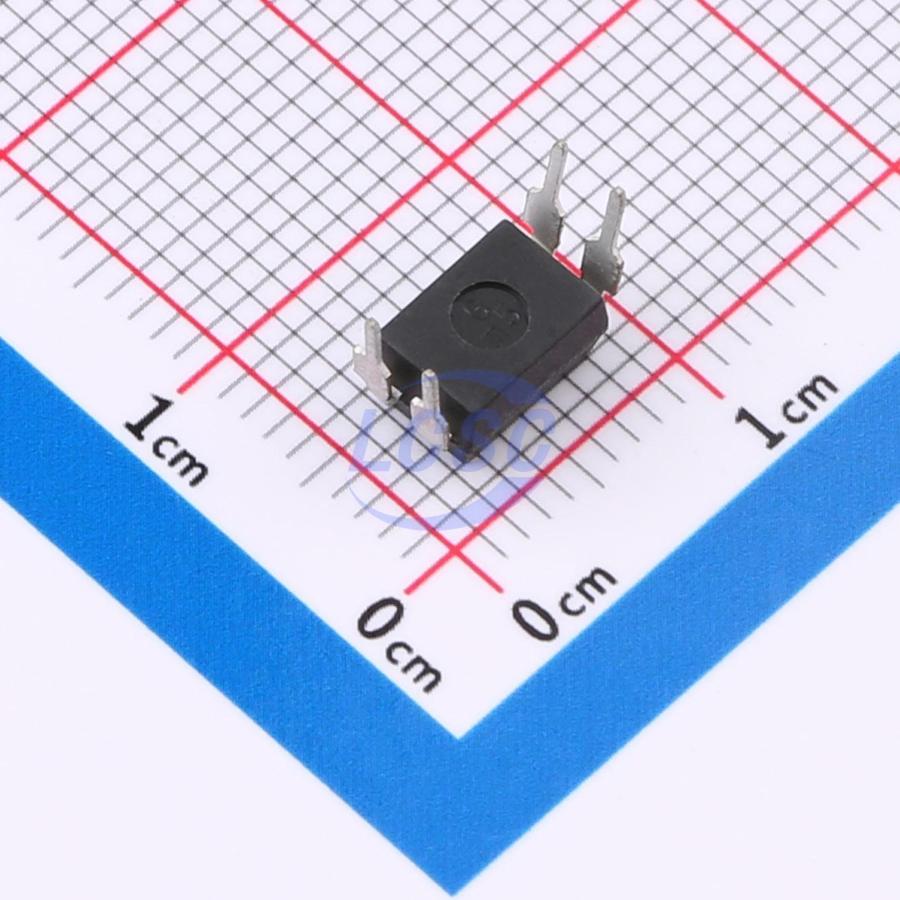

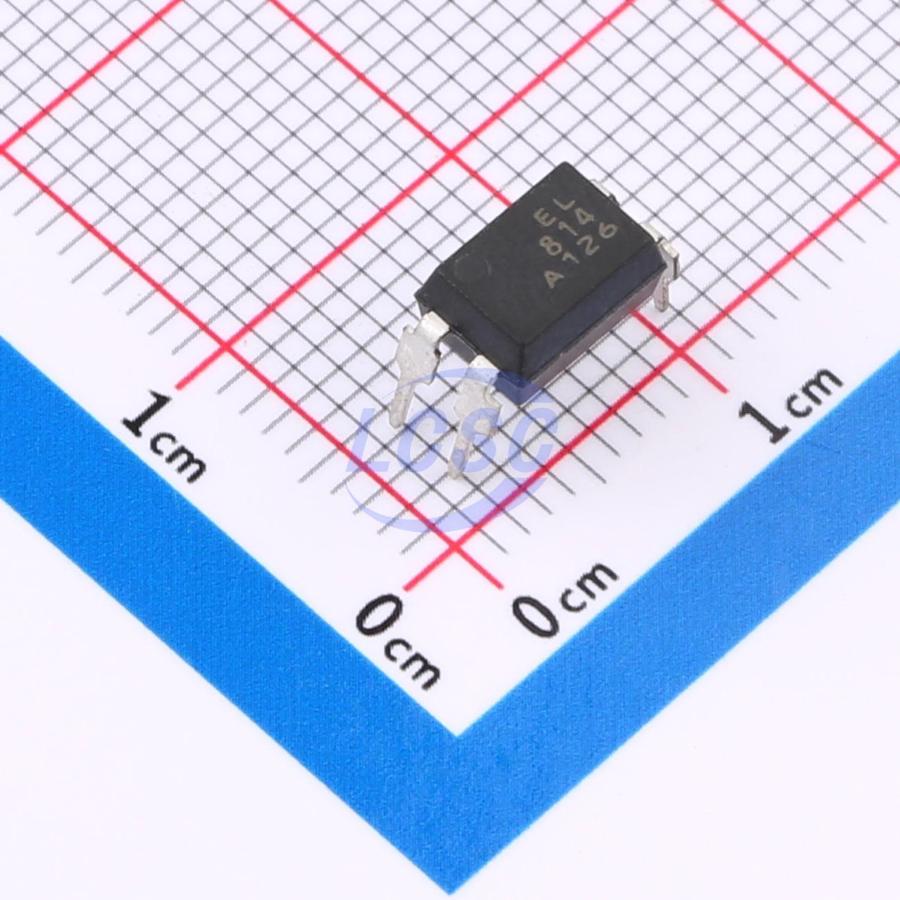

Manufacturer: Everlight Elec
Mfr. Part #: EL814A
Part Number: C115482
Package: DIP-4
Description: 80V 5kV 1mA 1.3V@20mA,1mA 1 1.2V DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS
📦 23230 in stock
Delivers By: Sunday, November 16, 2025 *
23230 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹18.54
5 - 49 Pieces
₹18.54
(0% off)
50 - 149 Pieces
₹14.65
(20% off)
150 - 499 Pieces
₹11.81
(36% off)
500 - 2,499 Pieces
₹10.35
(44% off)
2,500 - 4,999 Pieces
₹9.18
(50% off)
5,000+ Pieces
₹8.59
(53% off)
📦 Standard Packaging: 100/Piece
Products Specifications
Manufacturer
Everlight Elec
Package
DIP-4
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Isolation Voltage(Vrms)
5kV
Operating Temperature
-55℃~+110℃
Fall time
18us
Rise time
600ns
Output Current
1mA
Vce Saturation(VCE(sat))
1.3V@20mA,1mA
Number of Outputs
1
Voltage - Forward(Vf)
1.2V
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
300%
Current Transfer Ratio (CTR) Minimum
20%
Output Type
Phototransistor
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 100/Piece
