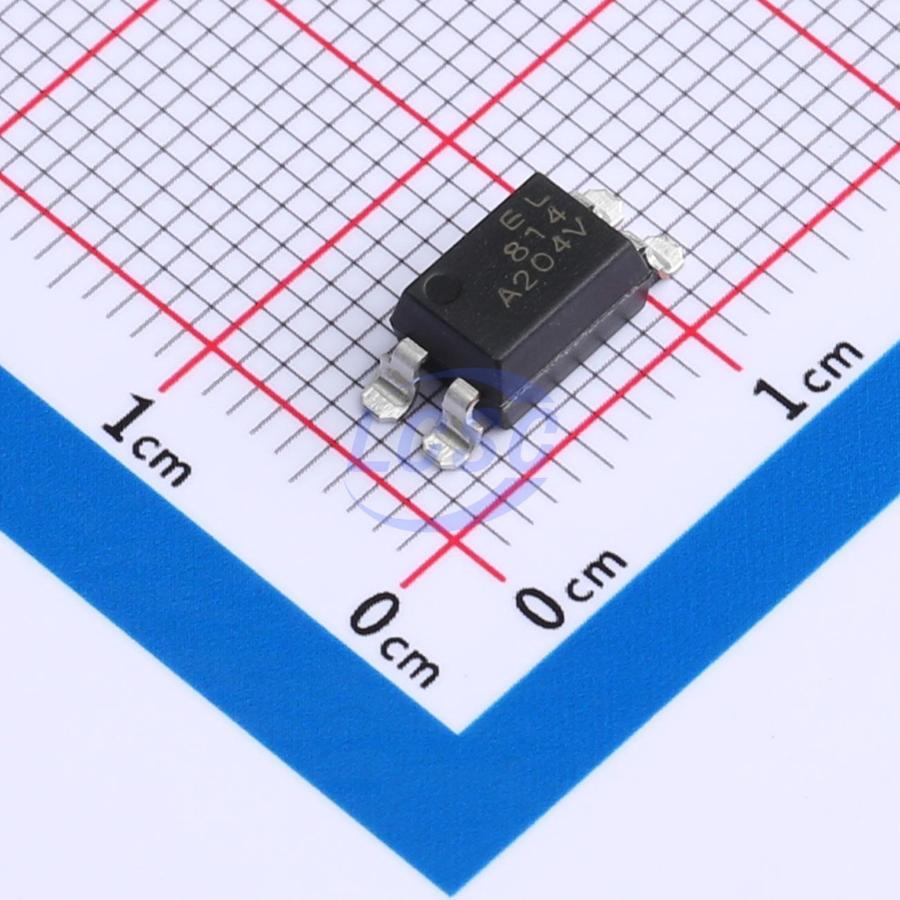

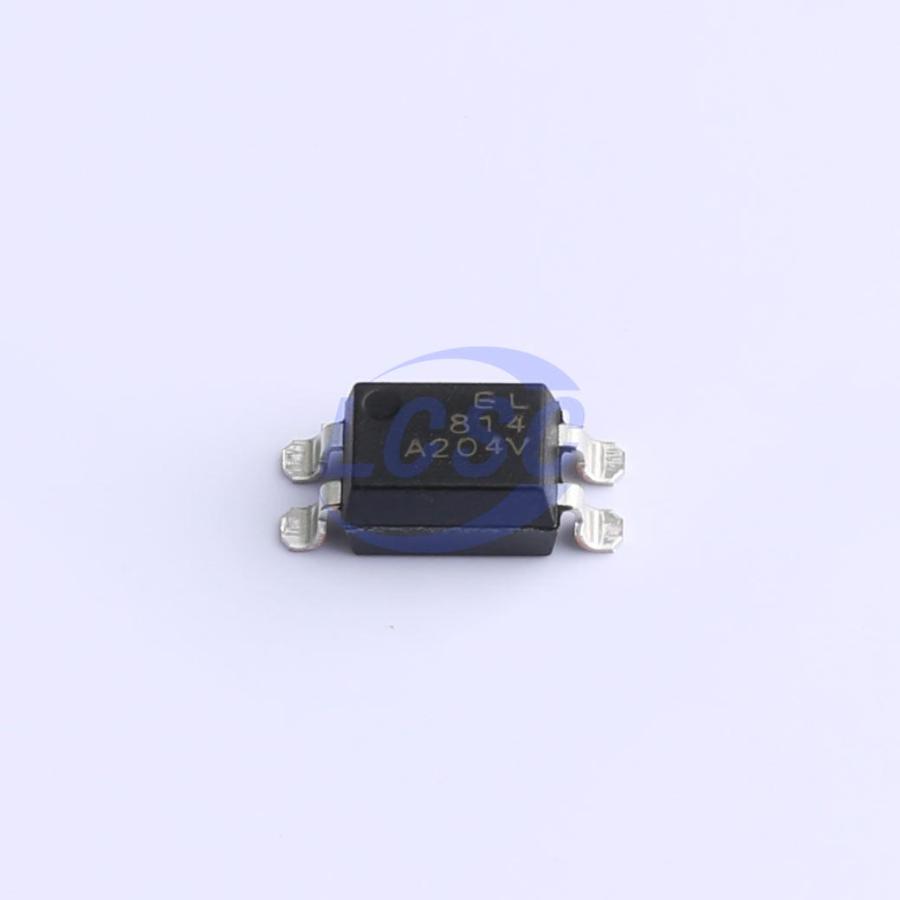

Manufacturer: Everlight Elec
Mfr. Part #: EL814S1(A)(TA)-V
Part Number: C5201636
Package: SMD-4P
Description: 80V 100nA 5kV 50mV@20mA,1mA 1 1.2V SMD-4P Transistor, Photovoltaic Output Optoisolators ROHS
Delivers By: Wednesday, March 18, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Manufacturer
Everlight Elec
Package
SMD-4P
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Output Current
100nA
Operating Temperature
-55℃~+110℃
Fall time
18us
Rise time
18us
Isolation Voltage(Vrms)
5kV
Vce Saturation(VCE(sat))
50mV@20mA,1mA
Number of Outputs
1
Voltage - Forward(Vf)
1.2V
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
300%
Current Transfer Ratio (CTR) Minimum
20%
Output Type
Phototransistor
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 1000/Piece
