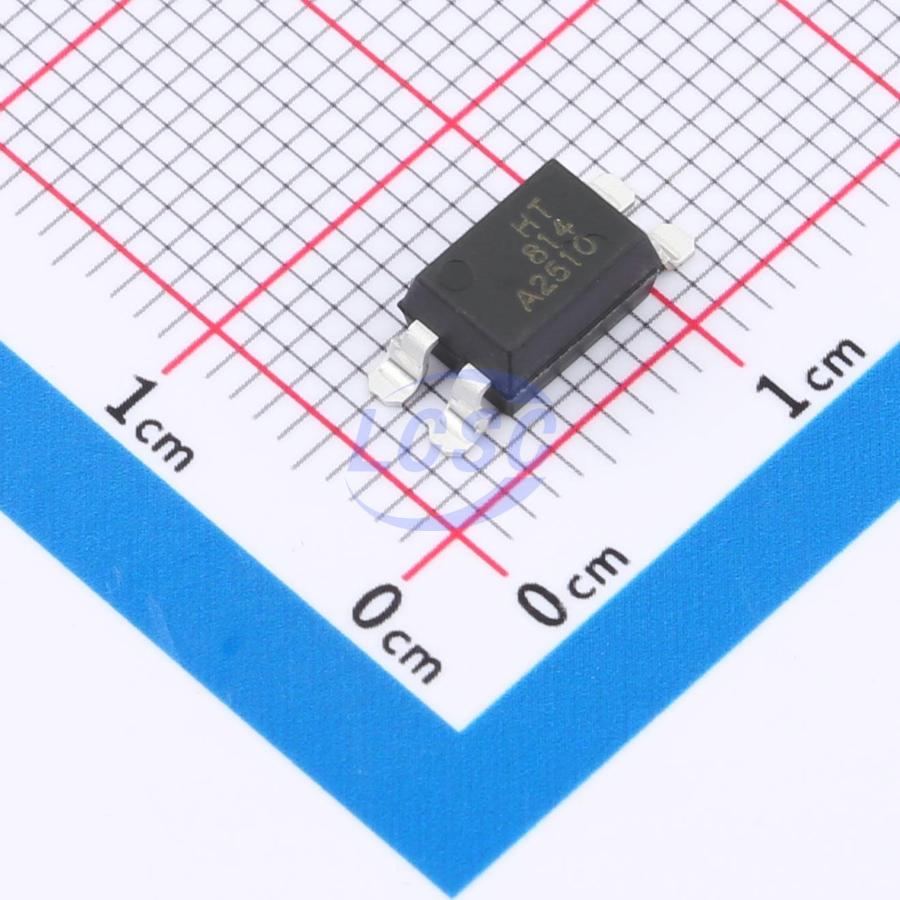

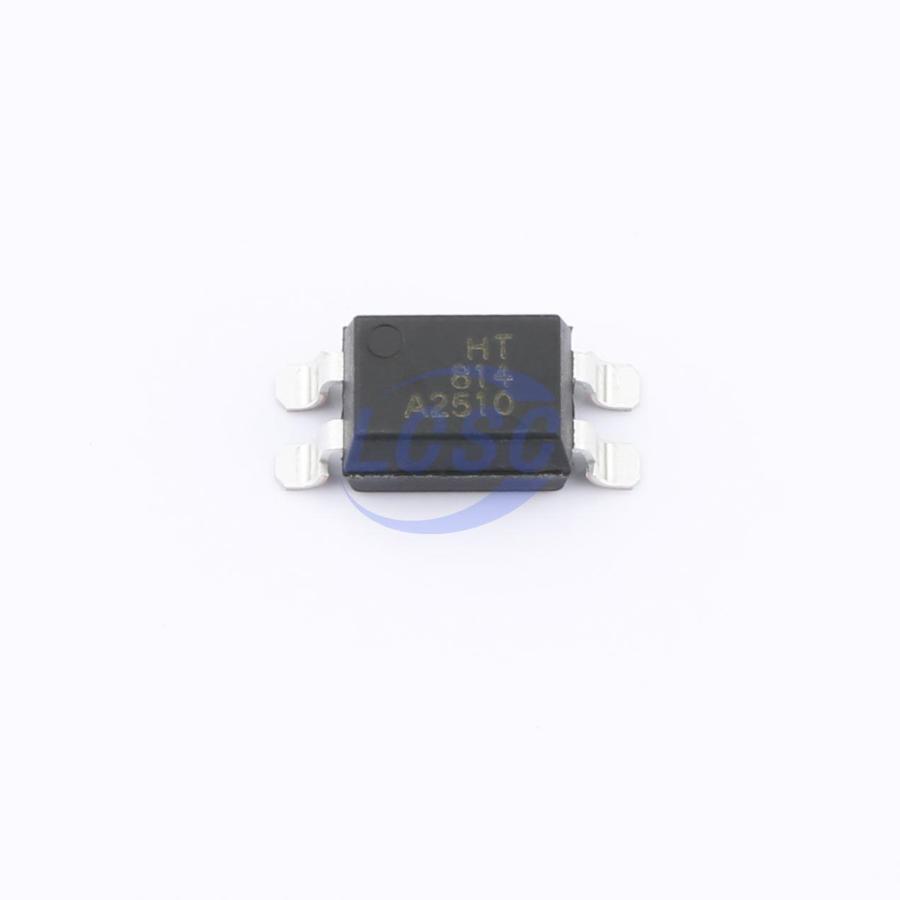

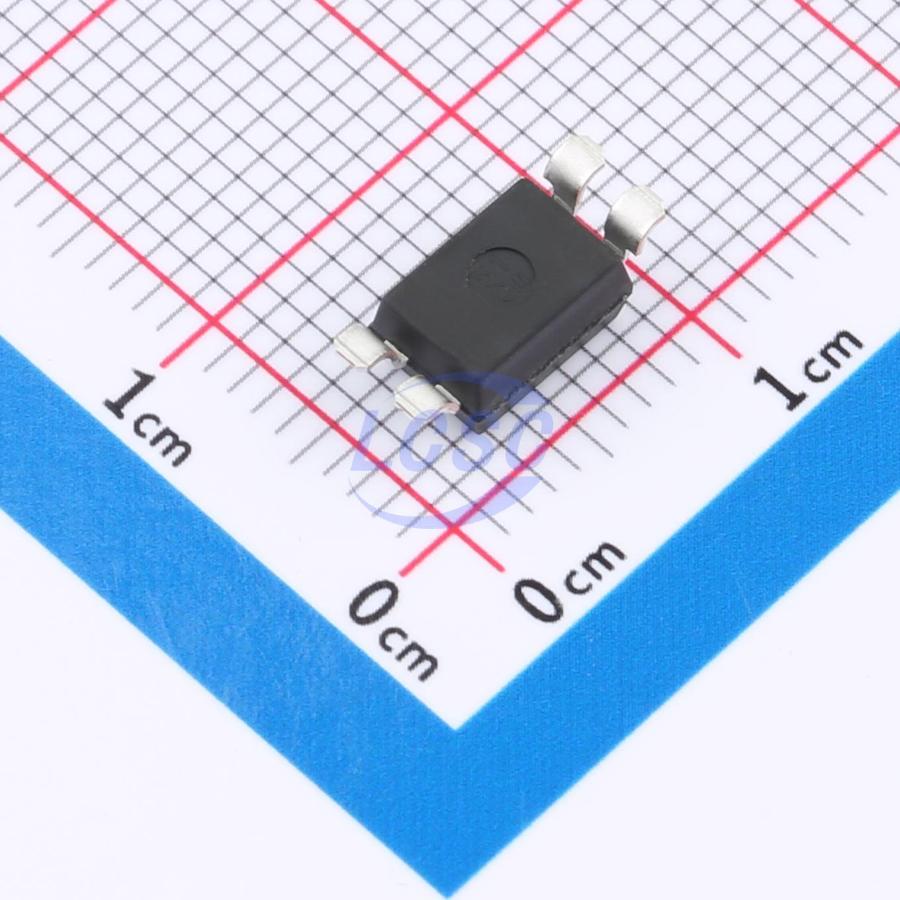

Manufacturer: HENGTUO ELECTRONICS
Mfr. Part #: HT-814S1-ATP1
Part Number: C47715854
Package: SMD-4P
Description: 80V 5kV 50mA 200mV@20mA,1mA 1 6V 1.2V AC,DC SMD-4P Transistor, Photovoltaic Output Optoisolators ROHS
📦 90 in stock
Delivers By: Monday, November 17, 2025 *
90 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹7.38
5 - 49 Pieces
₹7.38
(0% off)
50 - 149 Pieces
₹7.21
(2% off)
150 - 499 Pieces
₹7.10
(3% off)
500+ Pieces
₹6.99
(5% off)
📦 Standard Packaging: 2000/Piece
Products Specifications
Manufacturer
HENGTUO ELECTRONICS
Package
SMD-4P
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Fall time
3us
Isolation Voltage(Vrms)
5kV
Output Current
50mA
Operating Temperature
55℃~+110℃
Rise time
4us
Vce Saturation(VCE(sat))
200mV@20mA,1mA
Number of Outputs
1
Reverse Voltage
6V
Voltage - Forward(Vf)
1.2V
Forward Current(If)
50mA
Total Power Dissipation(Pd)
200mW
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
150%
Current Transfer Ratio (CTR) Minimum
50%
Output Type
Phototransistor
Input type
AC,DC
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 2000/Piece
