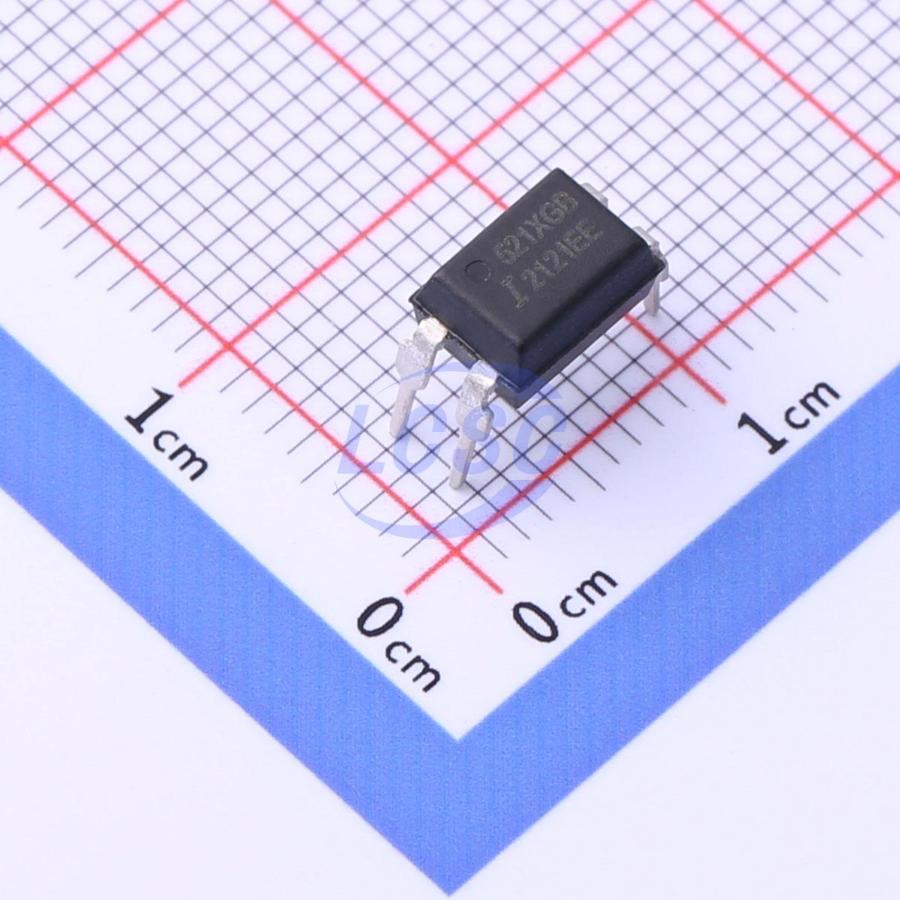

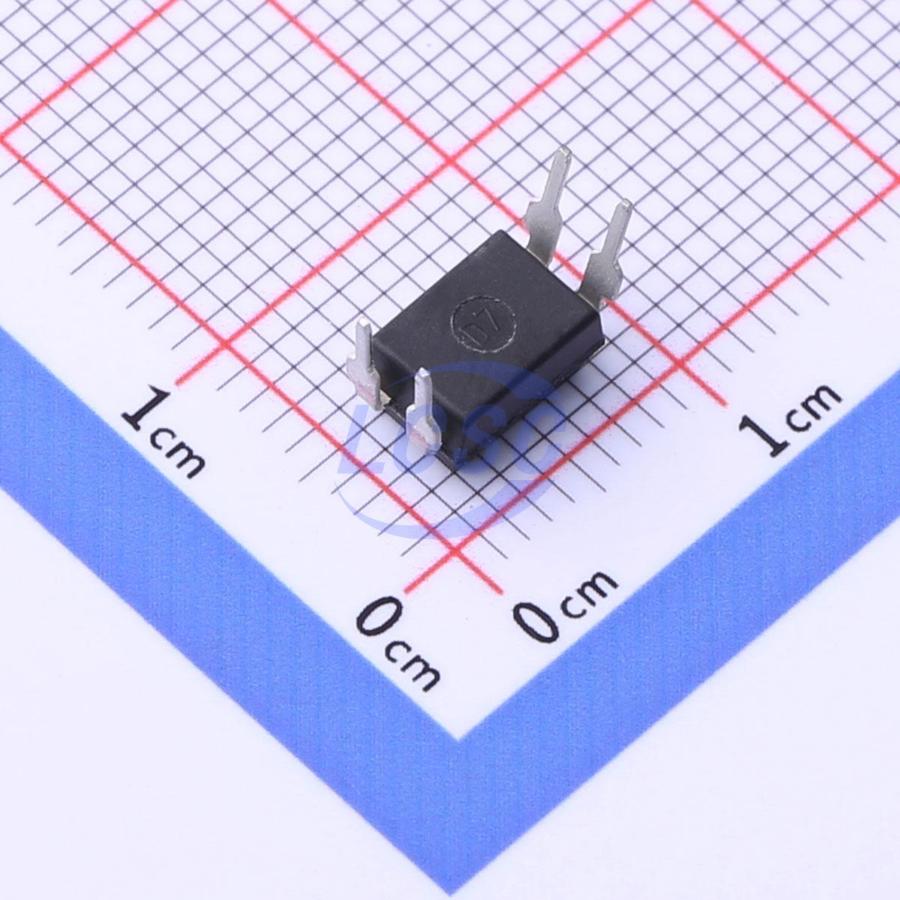

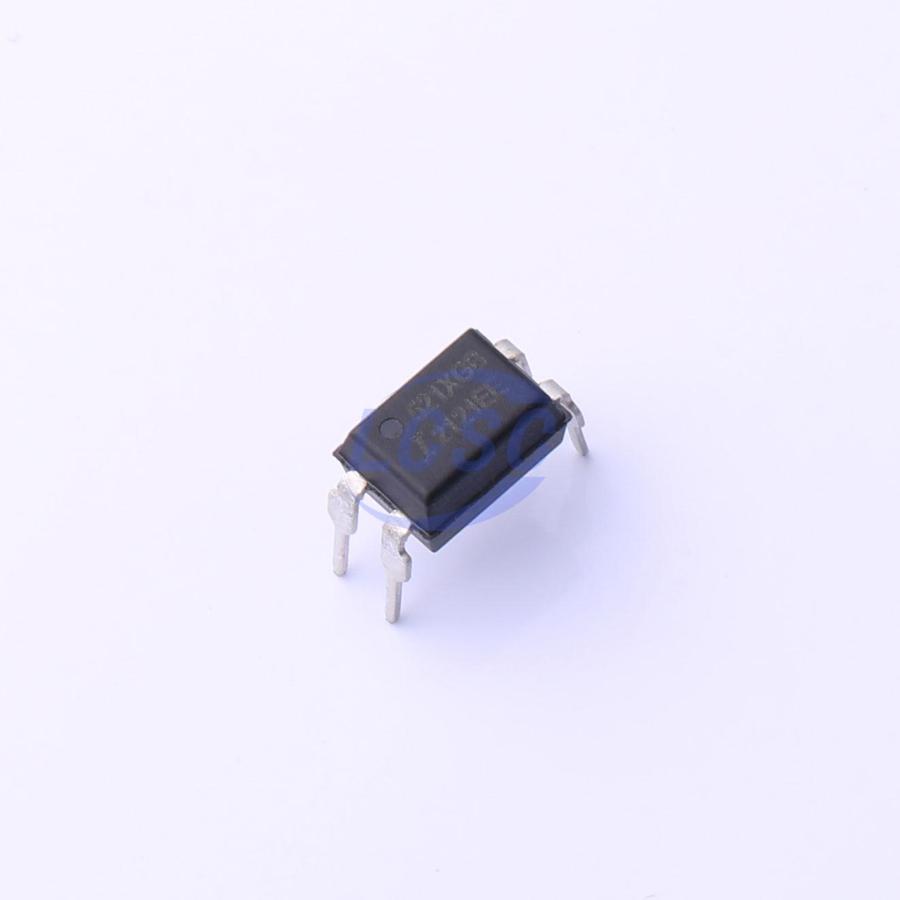

Manufacturer: Isocom Components
Mfr. Part #: TLP521-1XGB
Part Number: C2977583
Package: DIP-4
Description: 55V 5.3kV 50mA 400mV@8mA,1mA 1 6V 1.15V DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS
Delivers By: Thursday, March 19, 2026 *
Out of stock
📦 Standard Packaging: 100/Piece
Products Specifications
Manufacturer
Isocom Components
Package
DIP-4
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
55V
Isolation Voltage(Vrms)
5.3kV
Operating Temperature
-30℃~+100℃
Fall time
3us
Rise time
4us
Output Current
50mA
Vce Saturation(VCE(sat))
400mV@8mA,1mA
Number of Outputs
1
Reverse Voltage
6V
Voltage - Forward(Vf)
1.15V
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
600%
Current Transfer Ratio (CTR) Minimum
50%
Output Type
Phototransistor
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 100/Piece
Related Resources
- Datasheet
- EasyEDA Model
