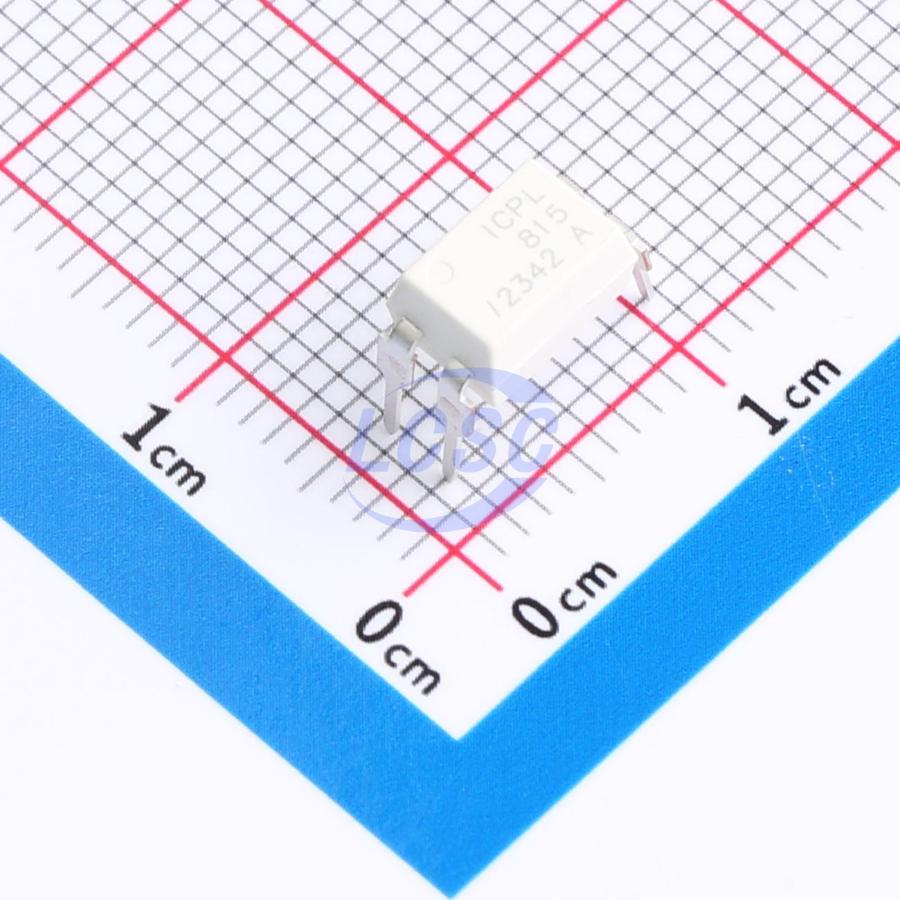

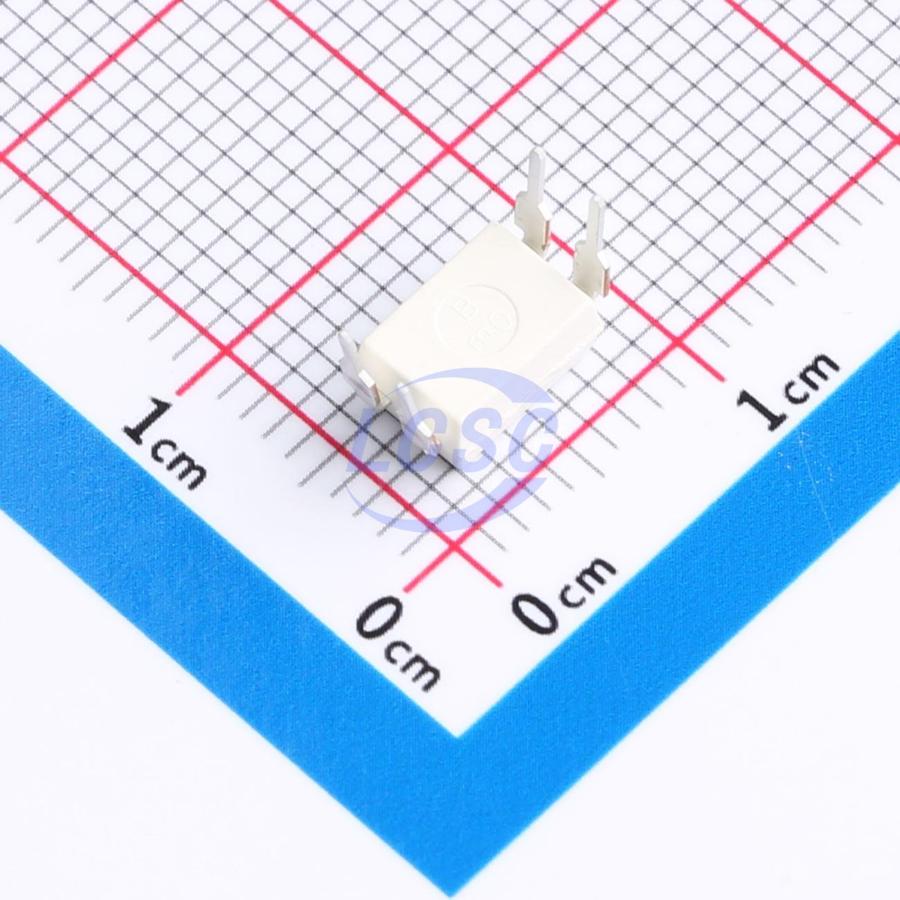

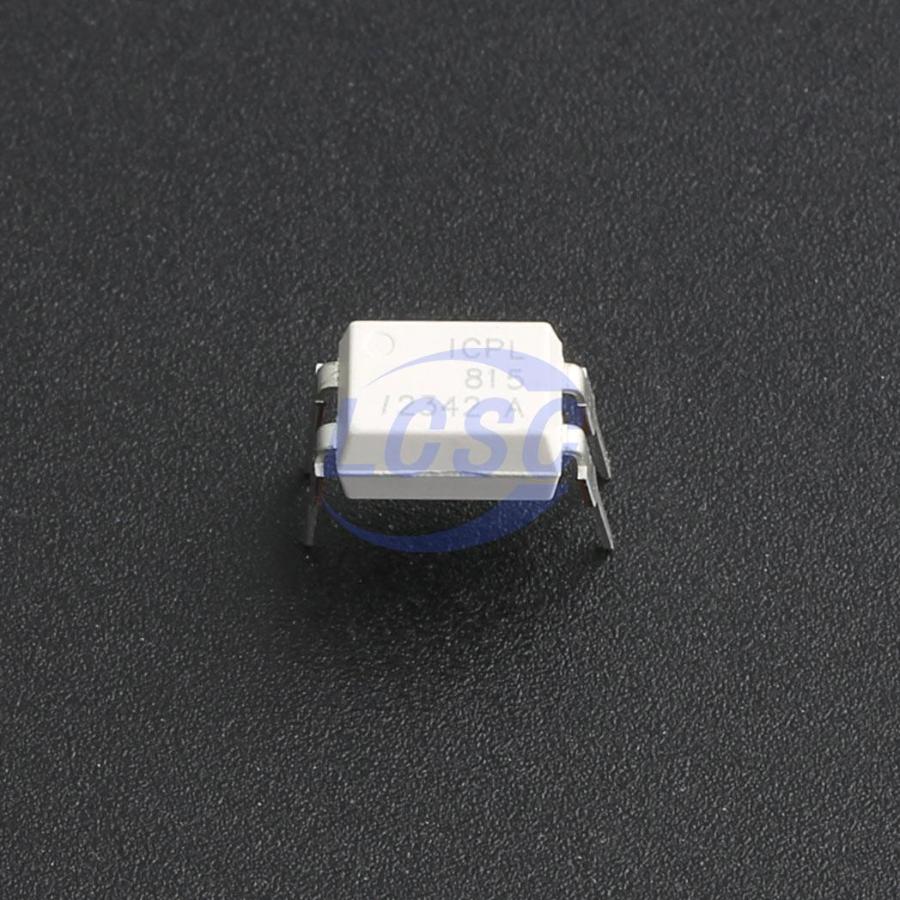

Manufacturer: ISOMICRON
Mfr. Part #: ICPL-815-010EAXW
Part Number: C46597916
Package: DIP-4
Description: 40V 80mA 5kV 800mV@20mA,5mA 6V 1.24V DC DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS
Delivers By: Thursday, March 19, 2026 *
Out of stock
📦 Standard Packaging: 100/Piece
Products Specifications
Manufacturer
ISOMICRON
Package
DIP-4
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
40V
Output Current
80mA
Operating Temperature
40℃~+110℃
Rise time
95us
Fall time
84us
Isolation Voltage(Vrms)
5kV
Vce Saturation(VCE(sat))
800mV@20mA,5mA
Reverse Voltage
6V
Voltage - Forward(Vf)
1.24V
Forward Current(If)
60mA
Total Power Dissipation(Pd)
200mW
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
7500%
Current Transfer Ratio (CTR) Minimum
600%
Output Type
Darlington Transistor
Input type
DC
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 100/Piece
