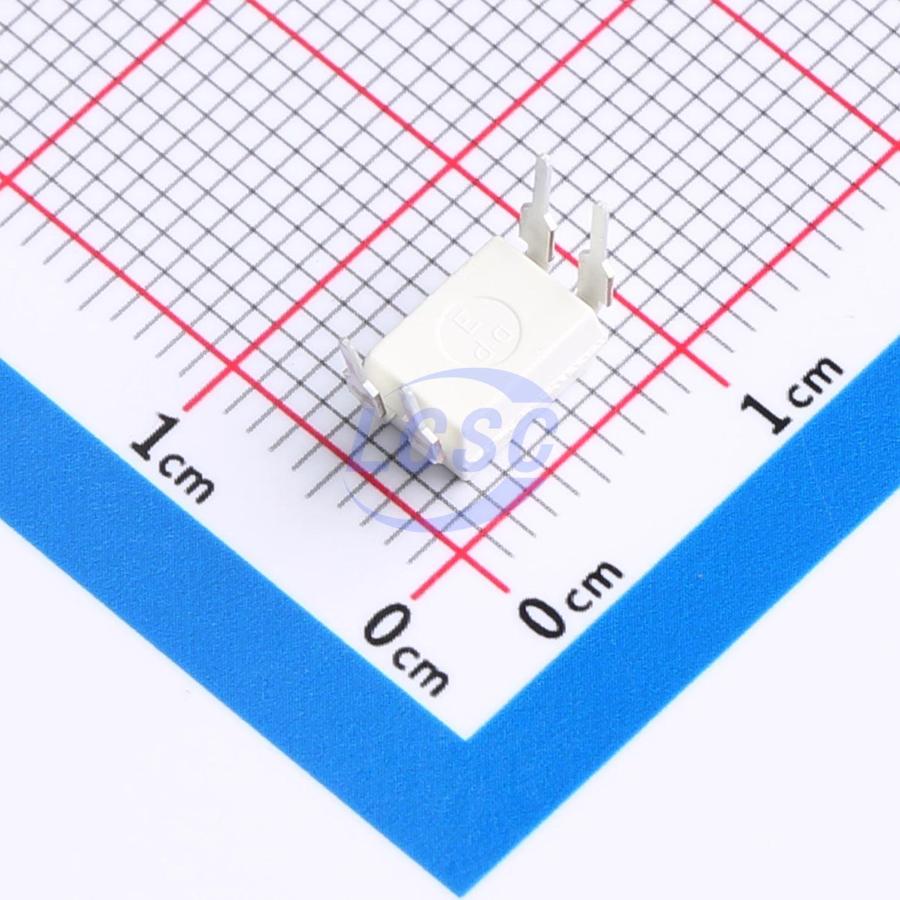

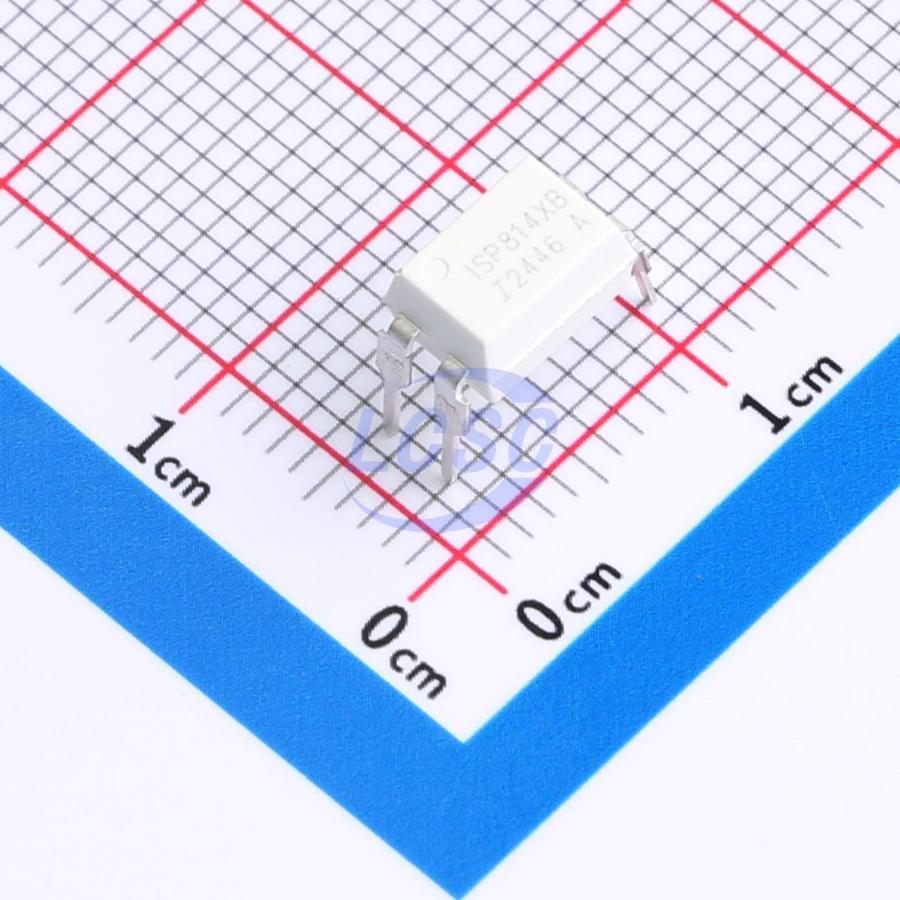

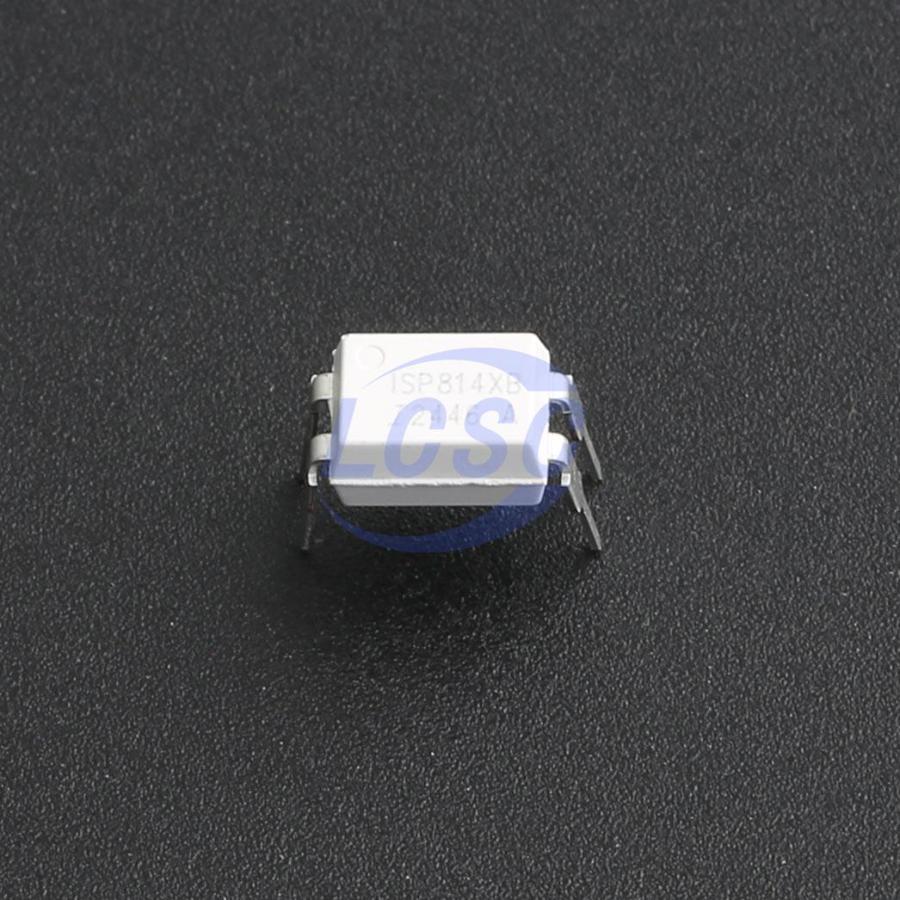

Manufacturer: ISOMICRON
Mfr. Part #: ISP814XB-AXW
Part Number: C46597926
Package: DIP-4
Description: 80V 5kV 50mA 200mV@20mA,1mA 6V 1.24V DC DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS
📦 945 in stock
Delivers By: Tuesday, November 18, 2025 *
945 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹23.74
5 - 49 Pieces
₹23.74
(0% off)
50 - 199 Pieces
₹18.77
(20% off)
200 - 499 Pieces
₹16.64
(29% off)
500 - 1,999 Pieces
₹13.98
(41% off)
2,000 - 4,999 Pieces
₹12.80
(46% off)
5,000+ Pieces
₹12.09
(49% off)
📦 Standard Packaging: 100/Piece
Products Specifications
Manufacturer
ISOMICRON
Package
DIP-4
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Operating Temperature
40℃~+110℃
Rise time
3us
Isolation Voltage(Vrms)
5kV
Output Current
50mA
Fall time
4us
Vce Saturation(VCE(sat))
200mV@20mA,1mA
Reverse Voltage
6V
Voltage - Forward(Vf)
1.24V
Forward Current(If)
60mA
Total Power Dissipation(Pd)
200mW
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
400%
Current Transfer Ratio (CTR) Minimum
80%
Output Type
Phototransistor
Input type
DC
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 100/Piece
