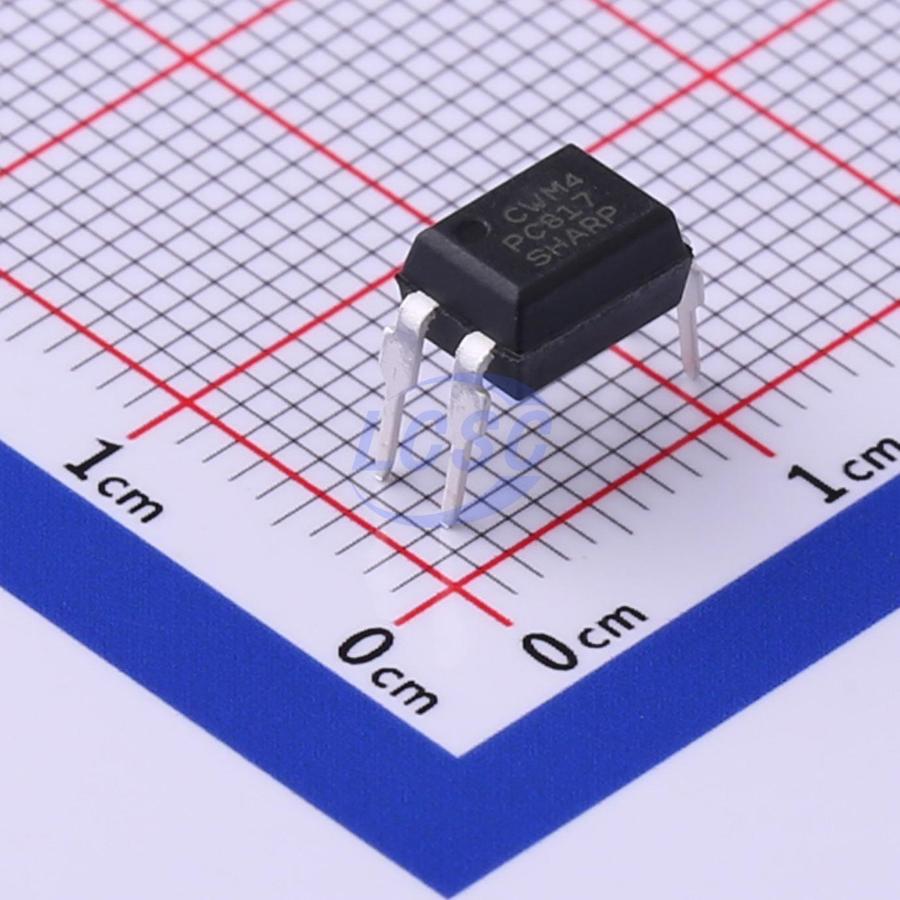

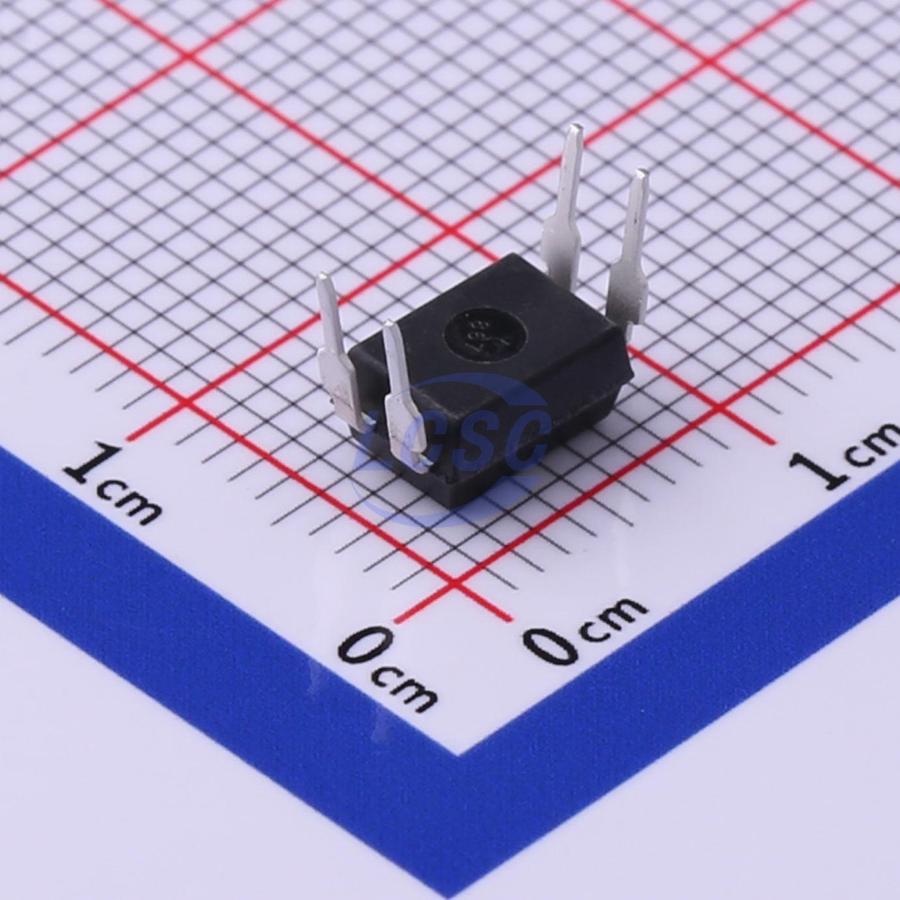

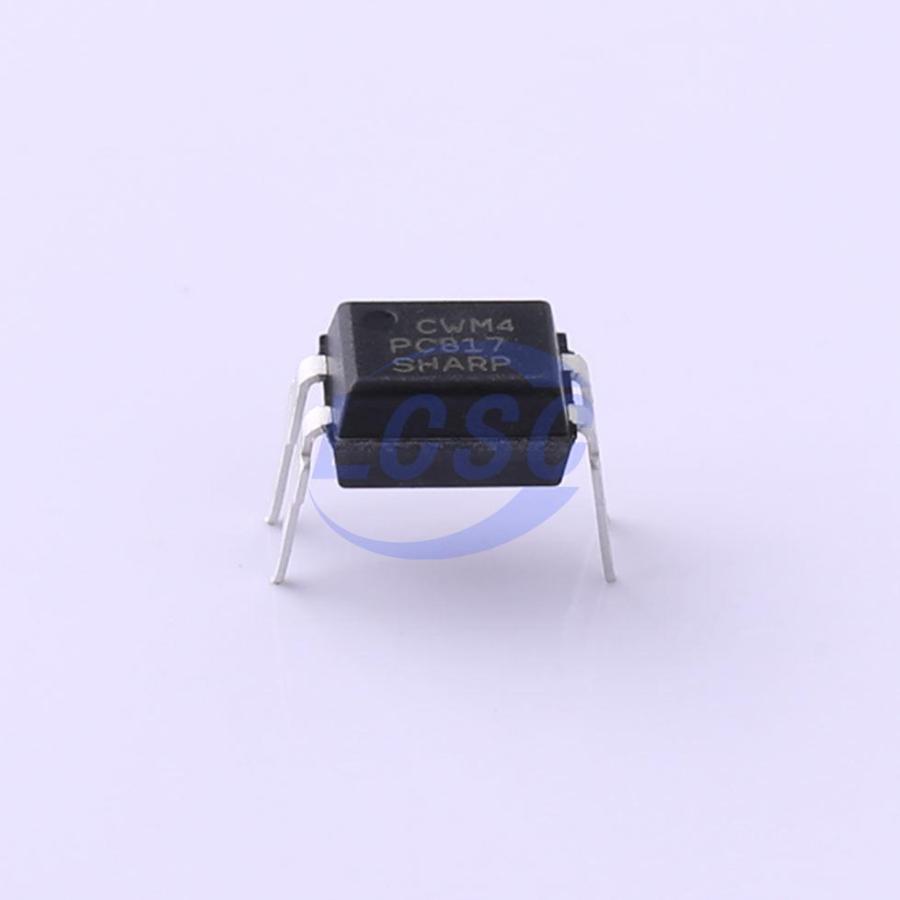

Manufacturer: Sharp Microelectronics
Mfr. Part #: PC817X3NSZ9F
Part Number: C96006
Package: DIP-4
Description: 80V 5kV 50mA 200mV@20mA,1mA 1 6V 1.2V DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS
📦 40770 in stock
Delivers By: Friday, November 14, 2025 *
40770 in stock
×
Total:
Bulk Pricing
1 - 4
Pieces
₹12.75
5 - 49 Pieces
₹12.75
(0% off)
50 - 199 Pieces
₹10.15
(20% off)
200 - 499 Pieces
₹8.00
(37% off)
500 - 1,999 Pieces
₹7.02
(44% off)
2,000 - 3,999 Pieces
₹6.24
(51% off)
4,000+ Pieces
₹5.85
(54% off)
📦 Standard Packaging: 100/Piece
Products Specifications
Manufacturer
Sharp Microelectronics
Package
DIP-4
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Isolation Voltage(Vrms)
5kV
Operating Temperature
-30℃~+100℃
Rise time
4us
Output Current
50mA
Fall time
3us
Vce Saturation(VCE(sat))
200mV@20mA,1mA
Number of Outputs
1
Reverse Voltage
6V
Voltage - Forward(Vf)
1.2V
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
600%
Current Transfer Ratio (CTR) Minimum
50%
Output Type
Phototransistor
Additional Information
Minimum Qty: 5
Multiple : 5
Standard Packaging: 100/Piece
