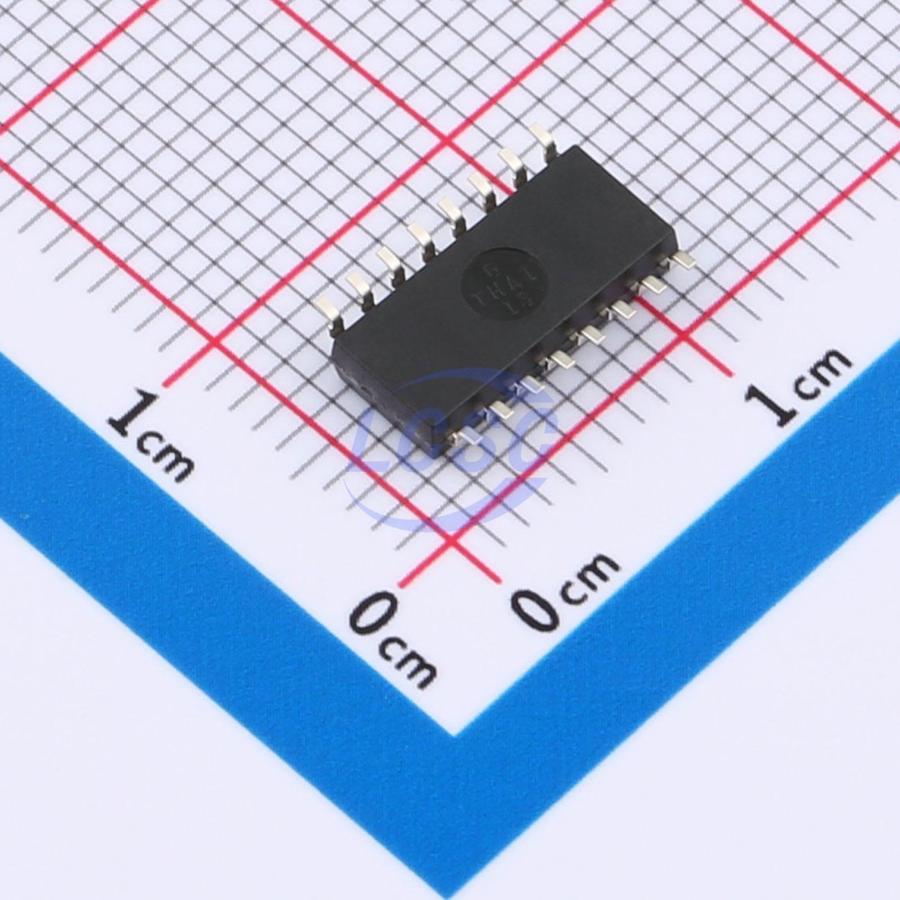

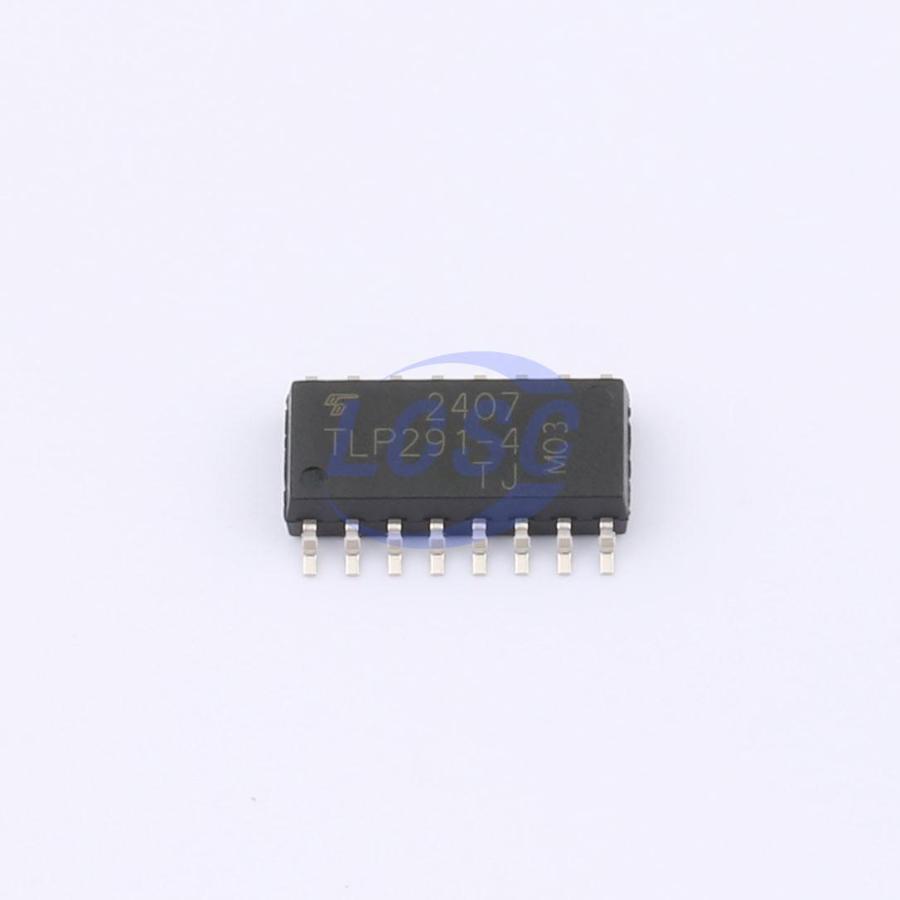

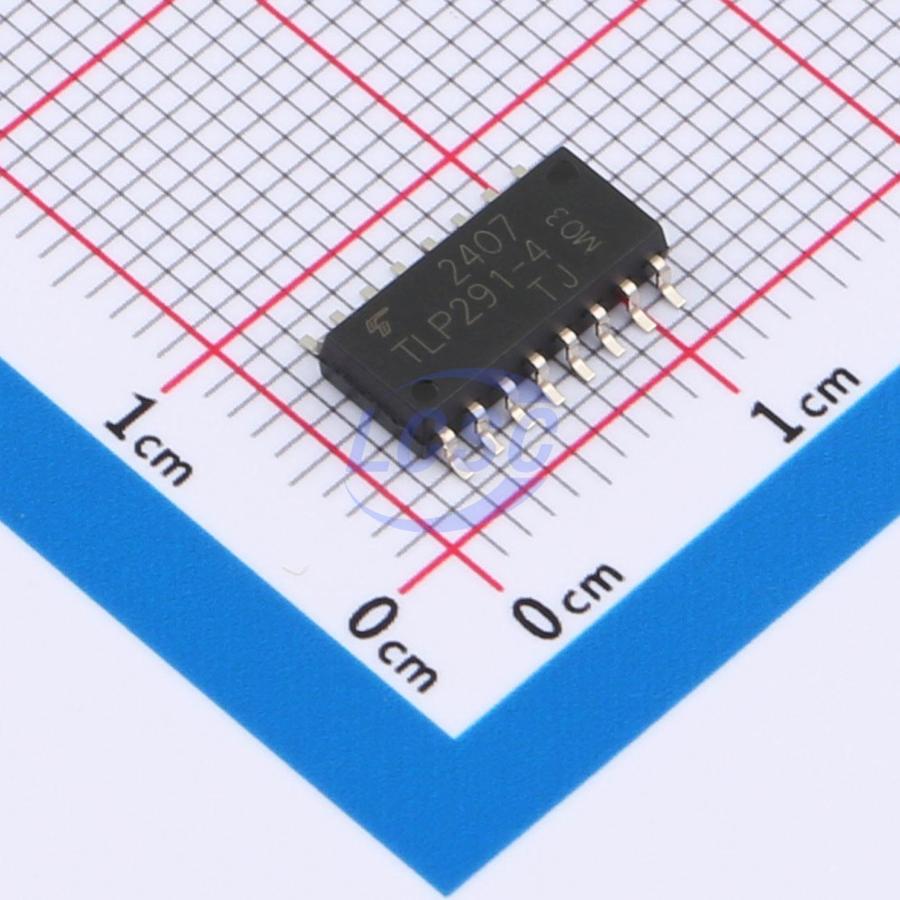

Manufacturer: TOSHIBA
Mfr. Part #: TLP291-4(E(T
Part Number: C22453298
Package: SOP-16
Description: 80V 50mA 2.5kV 400mV@8mA,2.4mA 4 5V 1.2V DC SOP-16 Transistor, Photovoltaic Output Optoisolators ROHS
📦 10 in stock
Delivers By: Thursday, November 13, 2025 *
10 in stock
×
Total:
Bulk Pricing
1 - 9
Pieces
₹89.04
10 - 49 Pieces
₹86.64
(2% off)
50 - 99 Pieces
₹85.21
(4% off)
100+ Pieces
₹83.54
(6% off)
📦 Standard Packaging: 50/Piece
Products Specifications
Manufacturer
TOSHIBA
Package
SOP-16
Category
Optoisolators/Transistor, Photovoltaic Output Optoisolators
Load Voltage
80V
Fall time
3us
Output Current
50mA
Operating Temperature
55℃~+110℃
Isolation Voltage(Vrms)
2.5kV
Rise time
2us
Vce Saturation(VCE(sat))
400mV@8mA,2.4mA
Number of Outputs
4
Reverse Voltage
5V
Voltage - Forward(Vf)
1.2V
Forward Current(If)
50mA
Total Power Dissipation(Pd)
170mW
Current Transfer Ratio (CTR) Maximum\u002FSaturation Value
400%
Current Transfer Ratio (CTR) Minimum
50%
Output Type
Phototransistor
Input type
DC
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 50/Piece
