Manufacturer: Infineon Technologies
Mfr. Part #: IGP30N60H3
Part Number: C520647

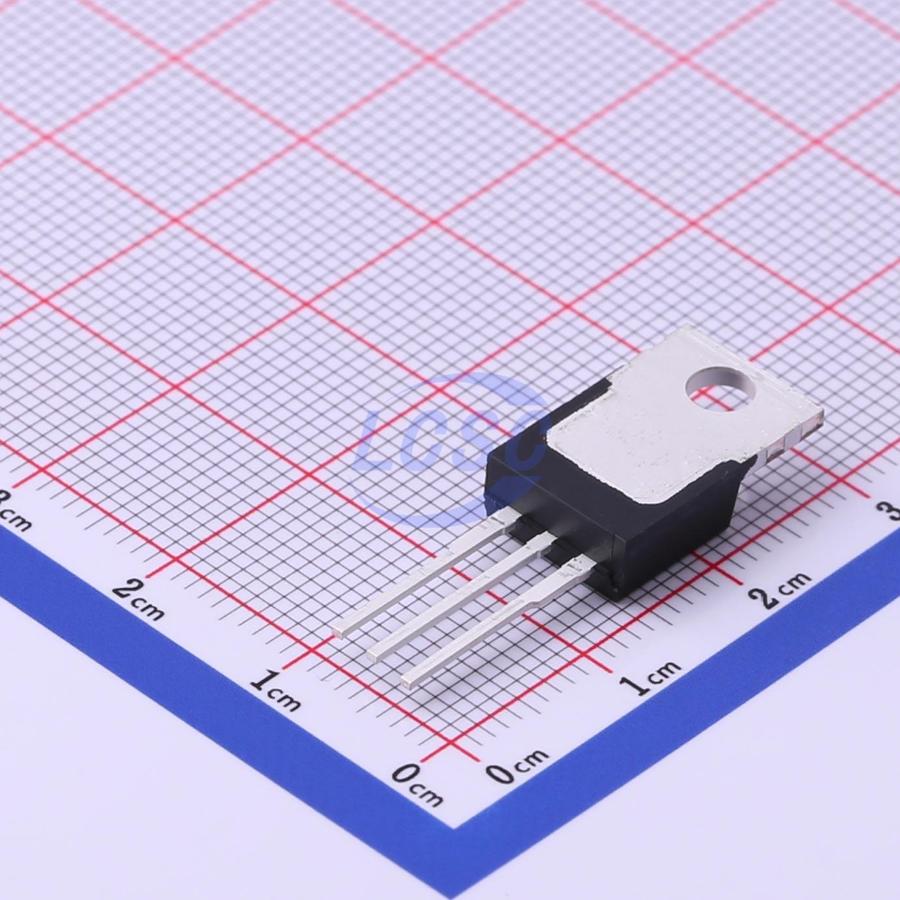

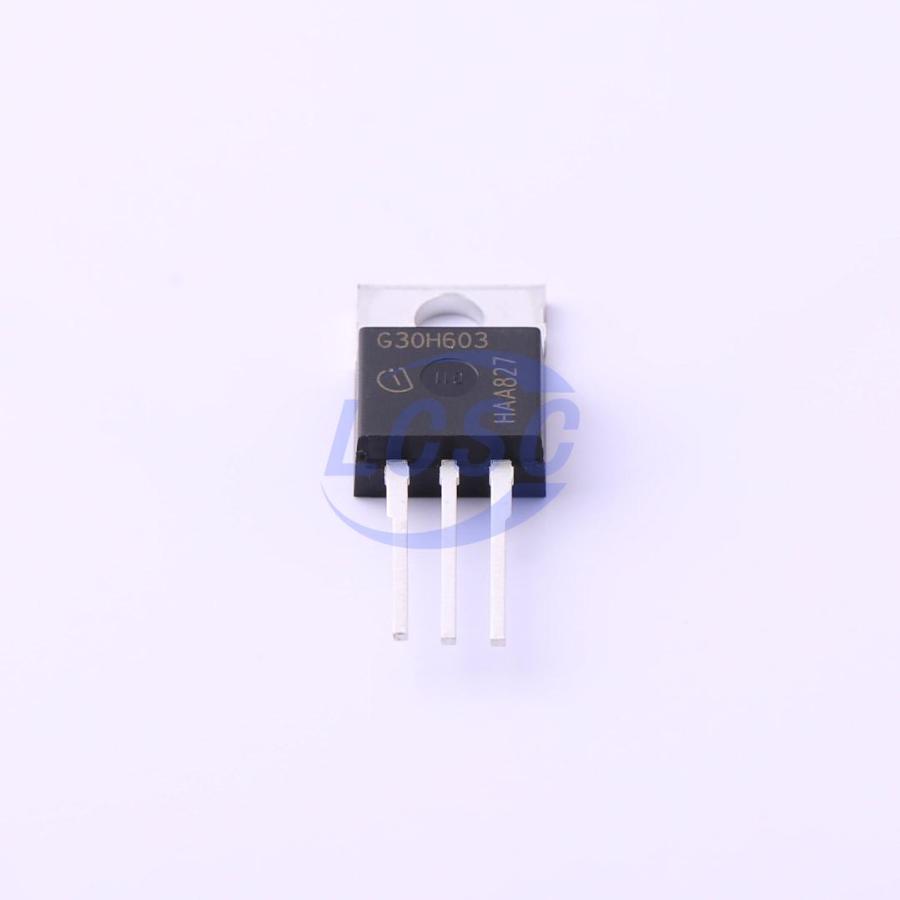

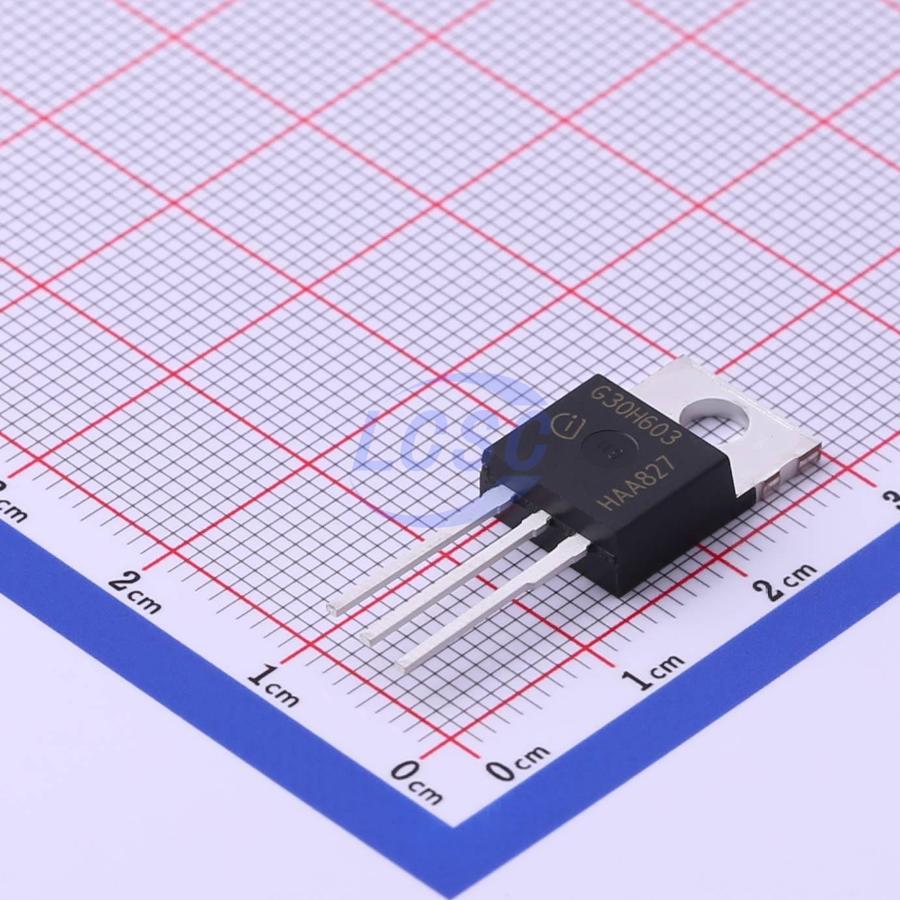

Package: TO-220
Description: 187W 60A 600V FS(Field Stop) TO-220 IGBT Transistors / Modules ROHS
Delivers By: Wednesday, March 25, 2026 *
Out of stock
📦 Standard Packaging: 50/Piece
Products Specifications
Td(off)
207ns
Pd - Power Dissipation
187W
Operating Temperature
-40℃~+175℃
Td(on)
18ns
Current - Collector(Ic)
60A
Collector-Emitter Breakdown Voltage (Vces)
600V
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
5.1V@430uA
Gate Charge(Qg)
165nC@30A,15V
Vce Saturation(VCE(sat))
1.95V@30A,15V
Switching Energy(Eoff)
440uJ
Turn-On Energy (Eon)
730uJ
Input Capacitance(Cies)
1.63nF@25V
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 50/Piece
