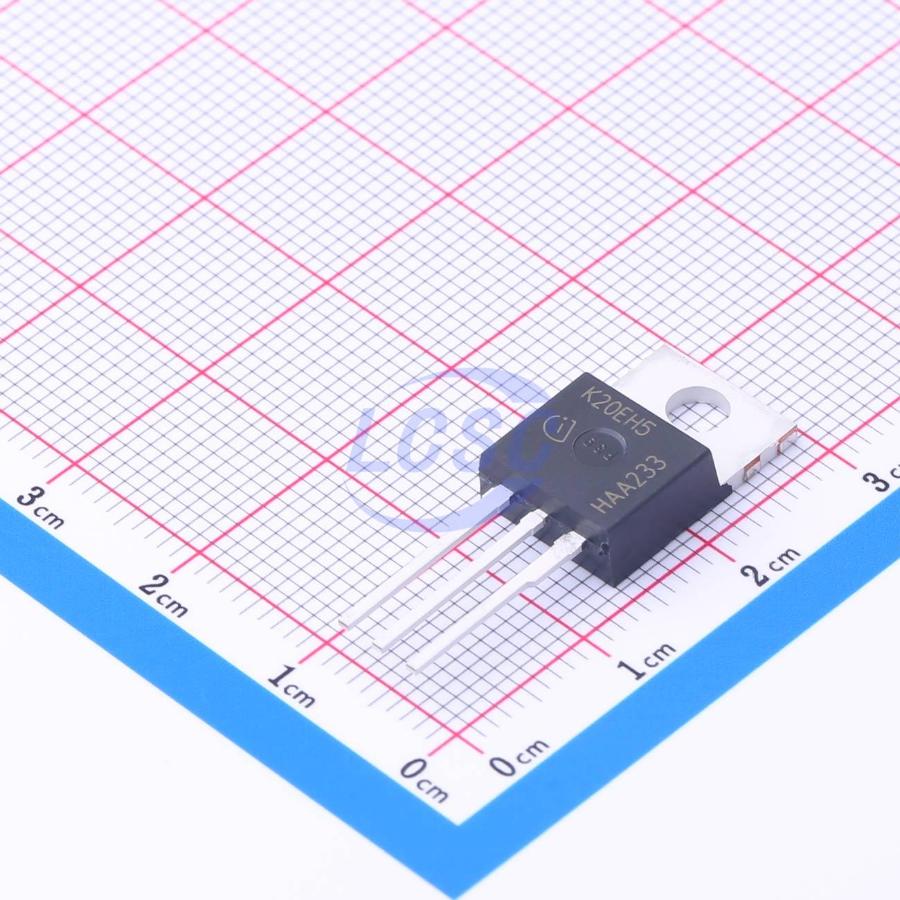

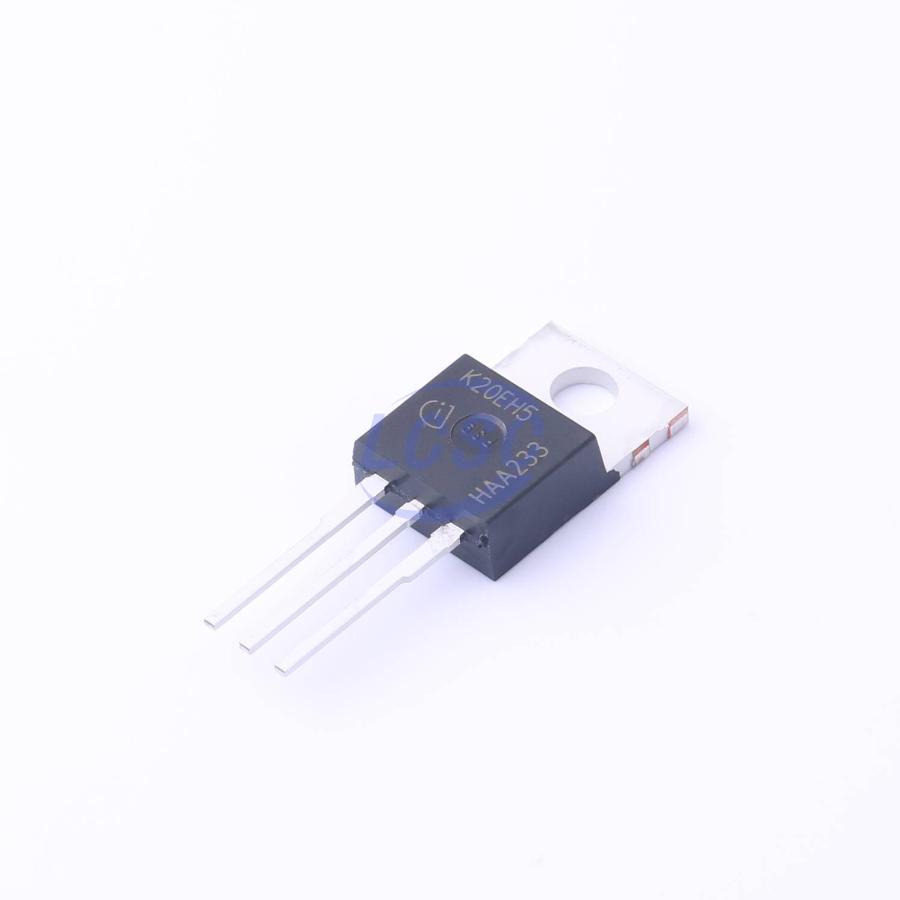

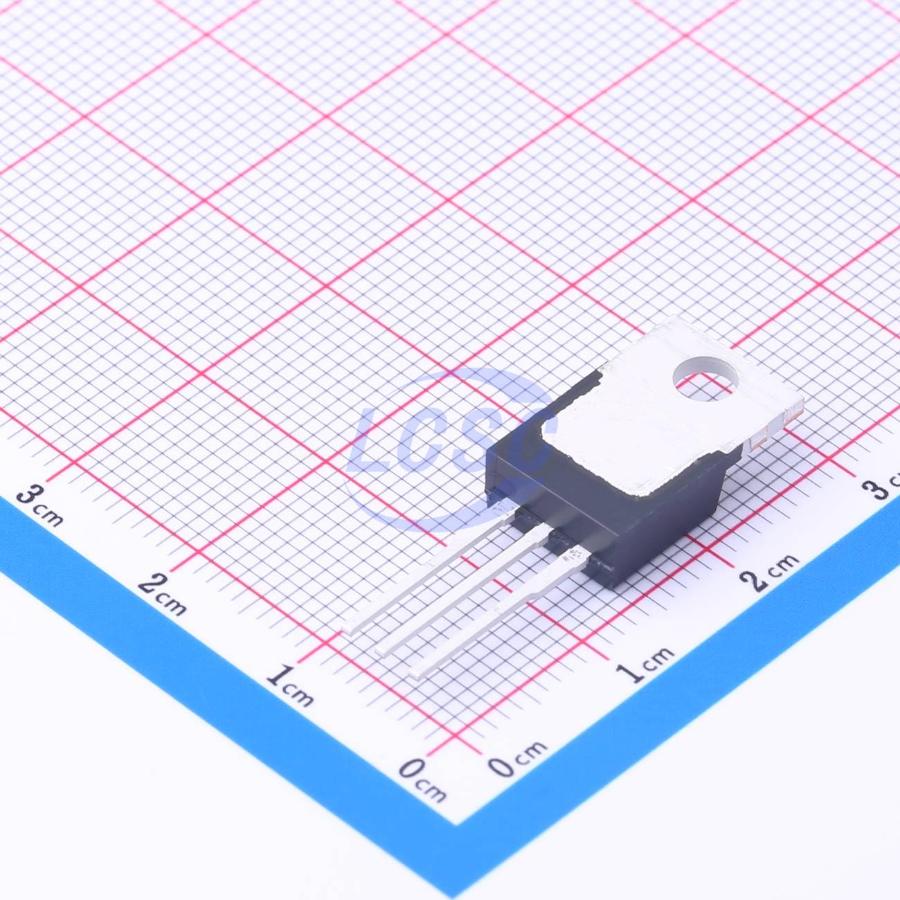

Manufacturer: Infineon Technologies
Mfr. Part #: IKP20N65H5
Part Number: C536195
Package: TO-220-3
Description: 125W 42A 650V TO-220-3 IGBT Transistors / Modules ROHS
Delivers By: Friday, March 27, 2026 *
Out of stock
📦 Standard Packaging: 500/Piece
Products Specifications
Td(off)
156ns
Pd - Power Dissipation
125W
Operating Temperature
-40℃~+175℃@(Tj)
Td(on)
18ns
Current - Collector(Ic)
42A
Collector-Emitter Breakdown Voltage (Vces)
650V
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
4V@200uA
Gate Charge(Qg)
48nC@20A,15V
Vce Saturation(VCE(sat))
1.65V@20A,15V
Reverse Recovery Time(trr)
52ns
Switching Energy(Eoff)
60uJ
Turn-On Energy (Eon)
170uJ
Voltage - Forward(Vf)
1.45V@10A
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 500/Piece
