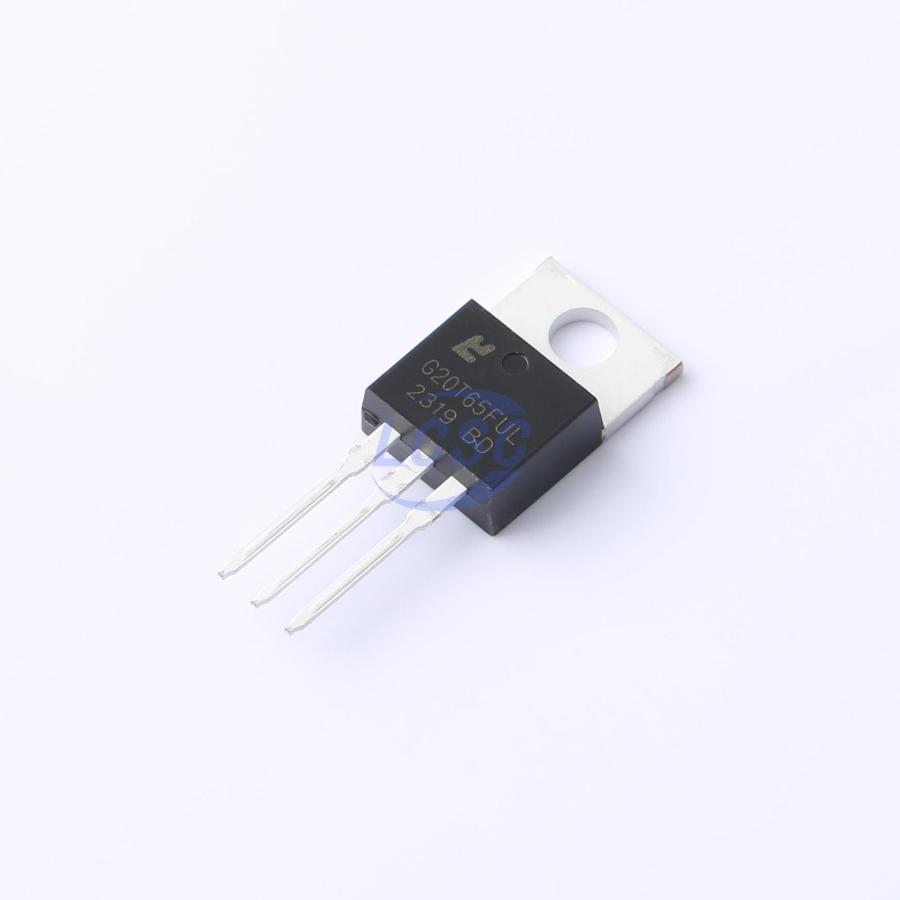

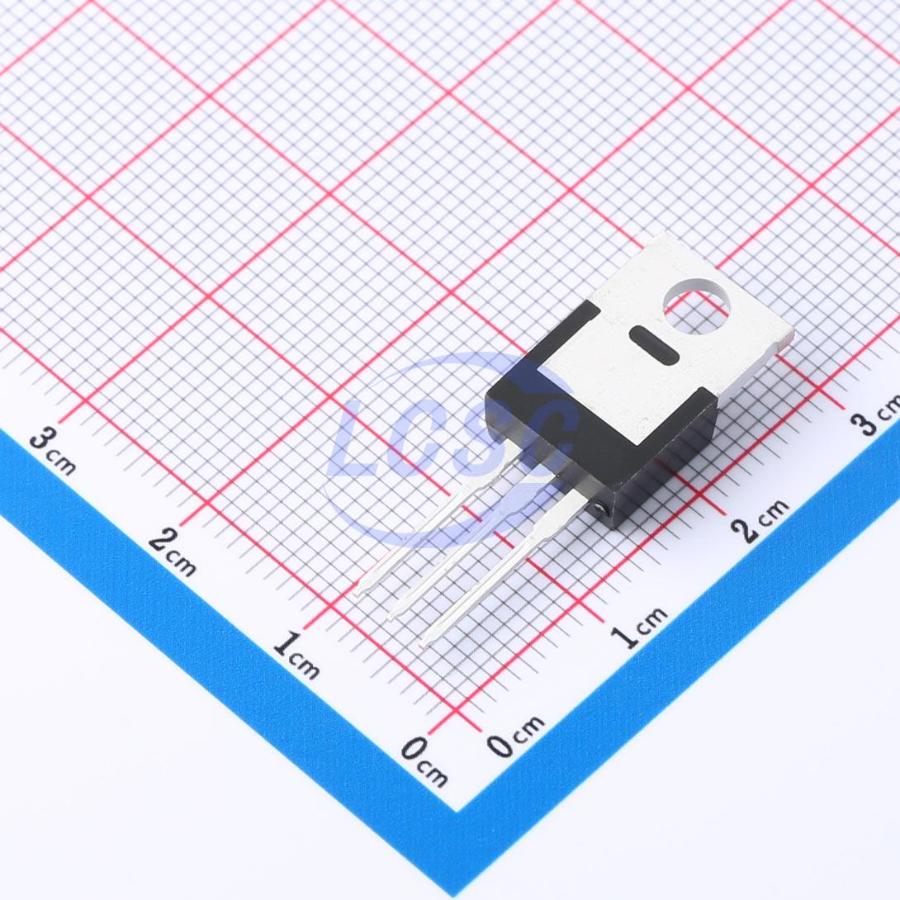

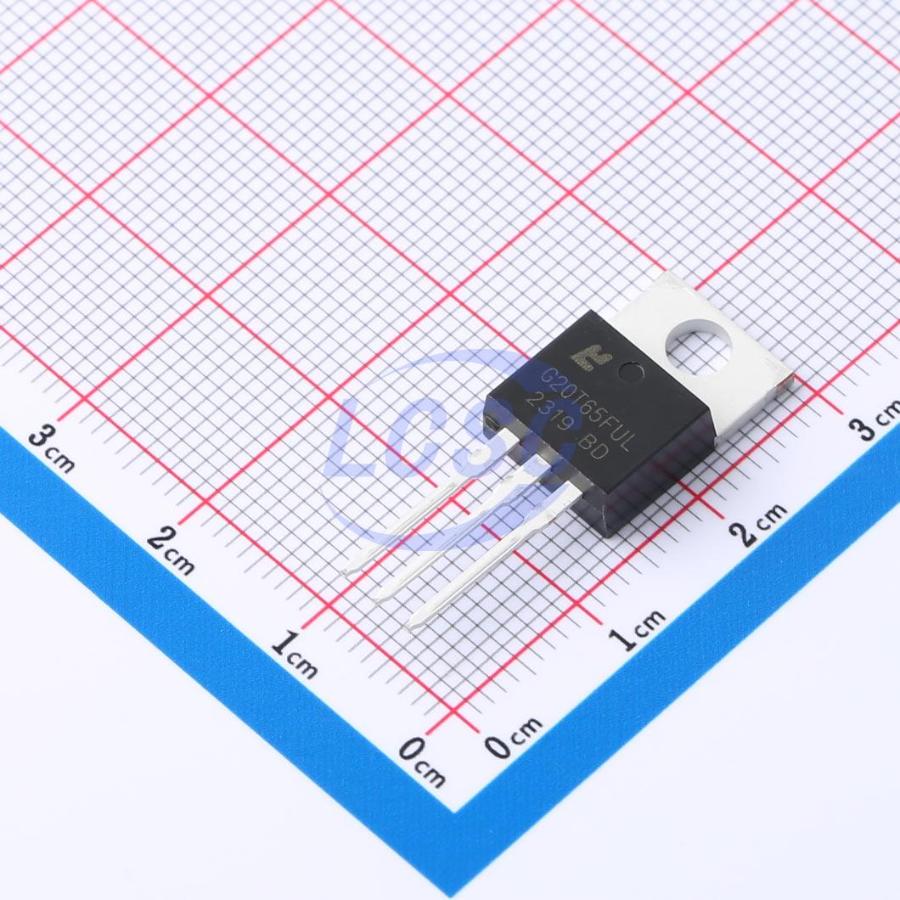

Manufacturer: Minos
Mfr. Part #: MLG20T65FUL
Part Number: C6719397
Package: TO-220
Description: 136W 20A 650V FS(Field Stop) TO-220 IGBT Transistors / Modules ROHS
Delivers By: Saturday, March 28, 2026 *
Out of stock
📦 Standard Packaging: 50/Piece
Products Specifications
Pd - Power Dissipation
136W
Td(off)
75ns
Td(on)
15ns
Current - Collector(Ic)
20A
Collector-Emitter Breakdown Voltage (Vces)
650V
Voltage - Forward(Vf)
1.6V@10A
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
5.8V@1mA
Gate Charge(Qg)
44nC@20A,15V
Vce Saturation(VCE(sat))
1.55V@20A,15V
Reverse Recovery Time(trr)
150ns
Switching Energy(Eoff)
270uJ
Turn-On Energy (Eon)
500uJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 50/Piece
Related Resources
- Datasheet
- EasyEDA Model
