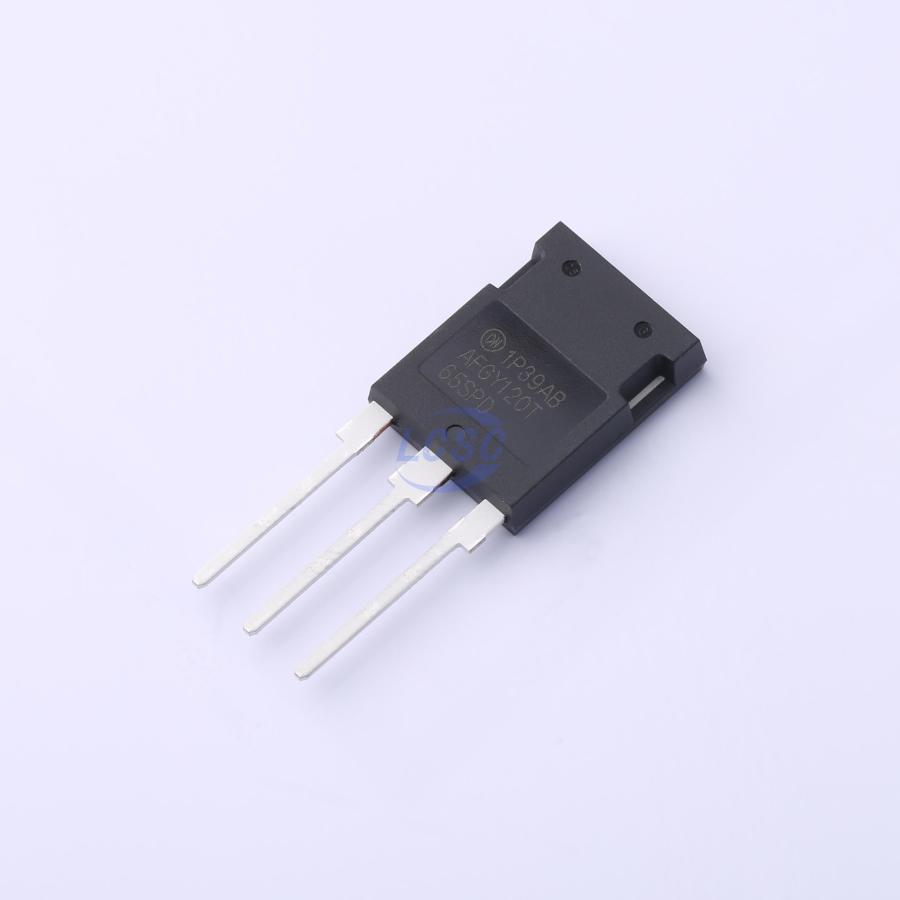

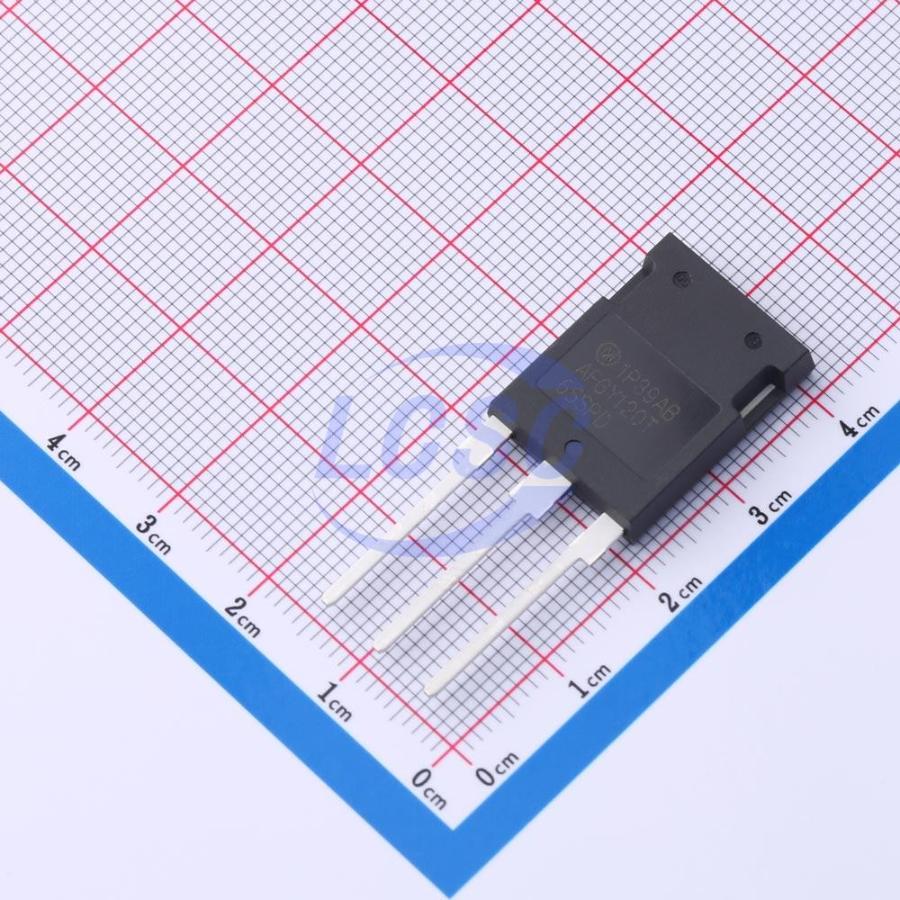

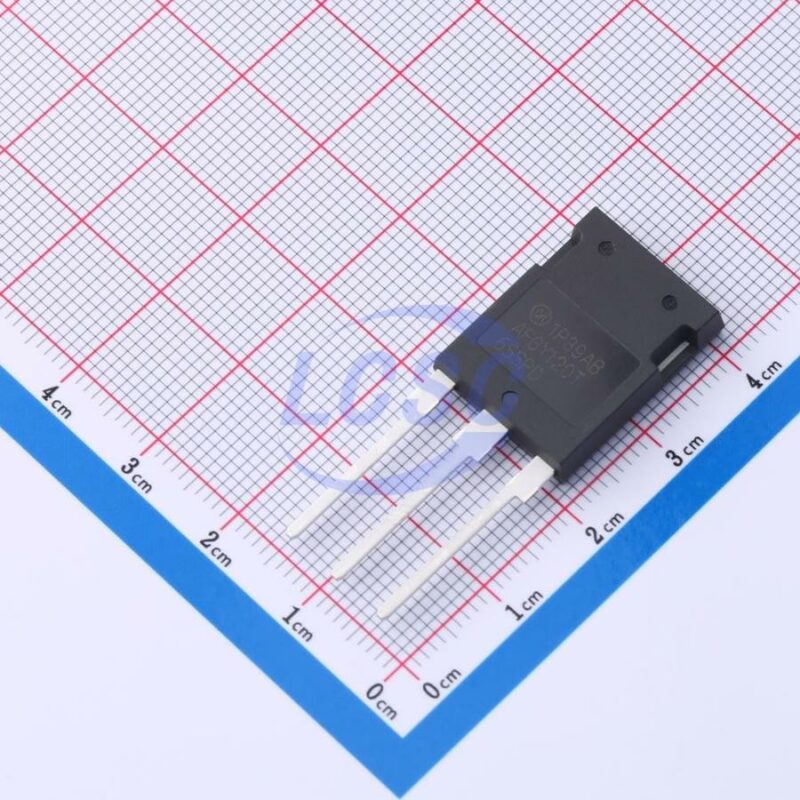

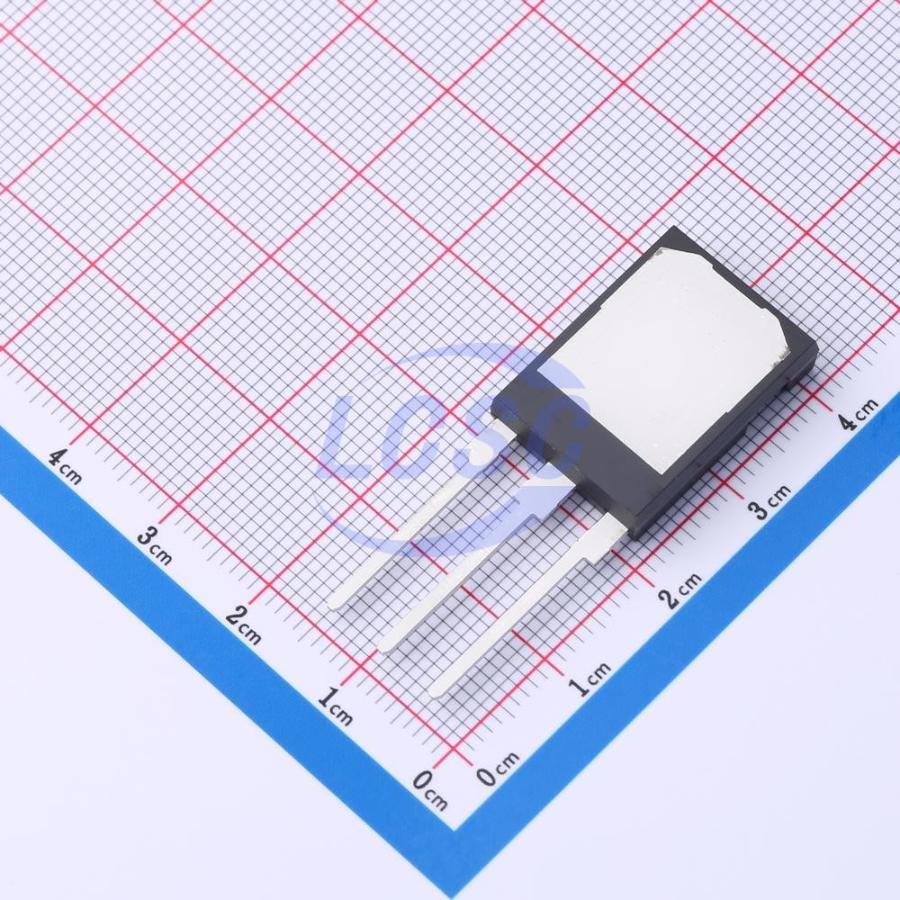

Manufacturer: onsemi
Mfr. Part #: AFGY120T65SPD
Part Number: C2902243
Package: TO-247-3
Description: 714W 160A 650V FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Saturday, March 28, 2026 *
Out of stock
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
80ns
Pd - Power Dissipation
714W
Operating Temperature
-55℃~+175℃@(Tj)
Td(on)
40ns
Current - Collector(Ic)
160A
Collector-Emitter Breakdown Voltage (Vces)
650V
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
2.05V@15V,120A
Gate Charge(Qg)
125nC
Reverse Recovery Time(trr)
107ns
Switching Energy(Eoff)
3.8mJ
Turn-On Energy (Eon)
6.6mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
