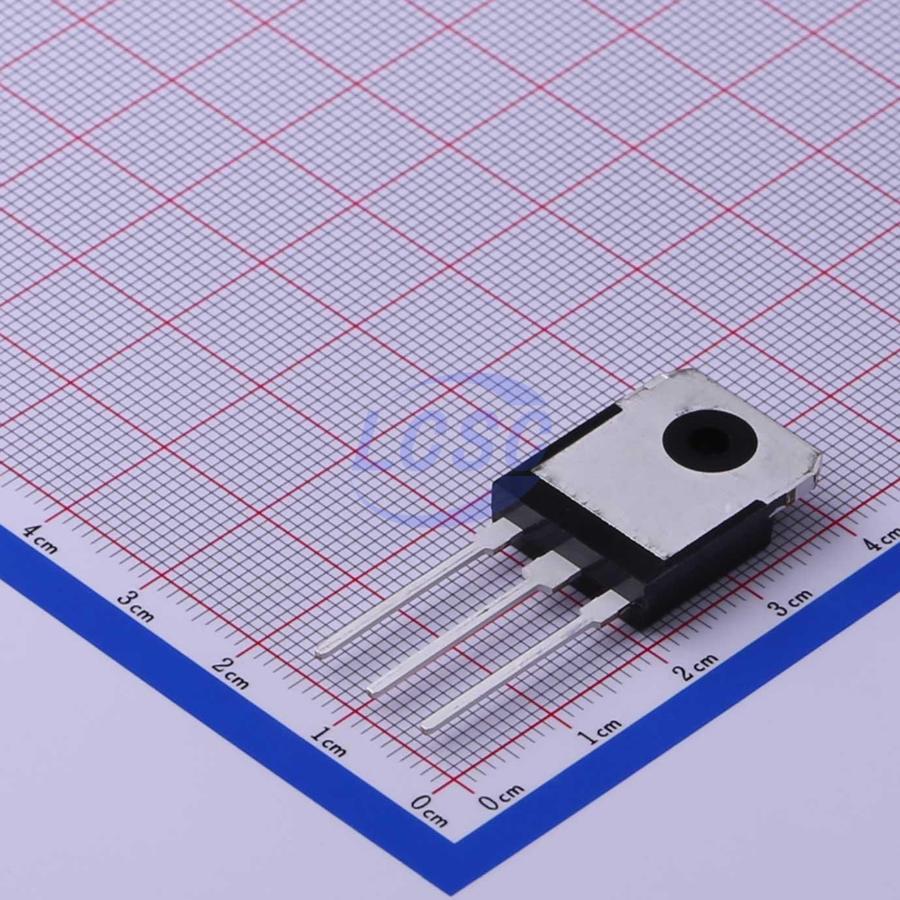

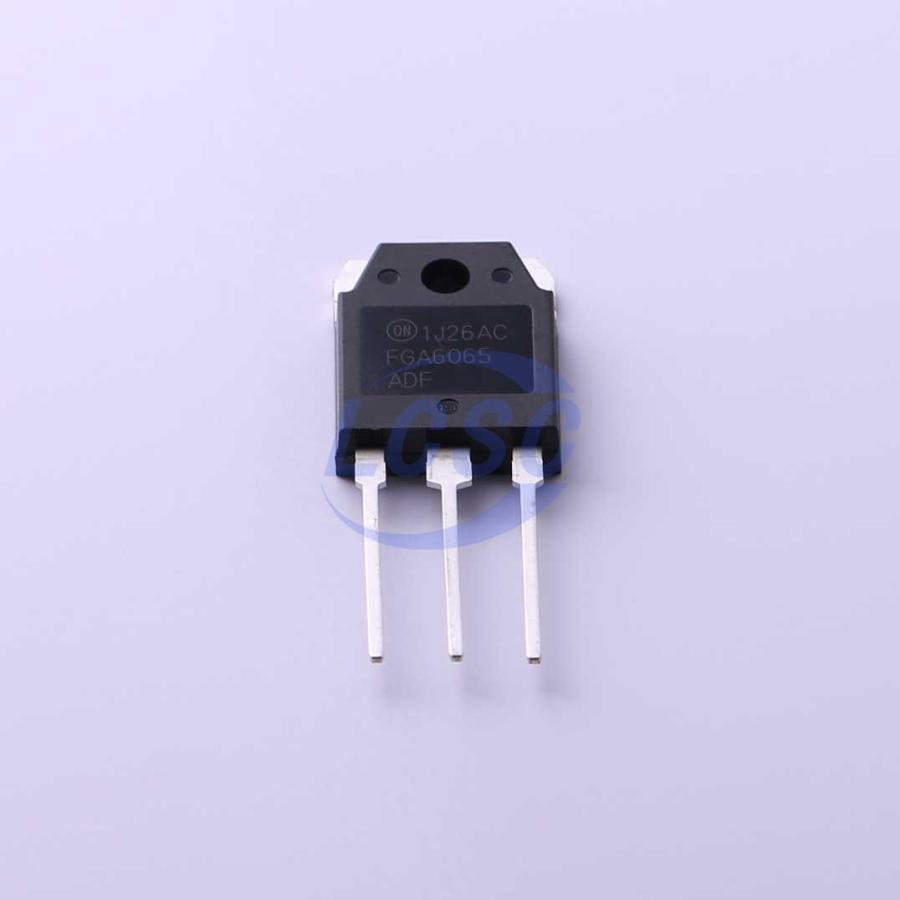

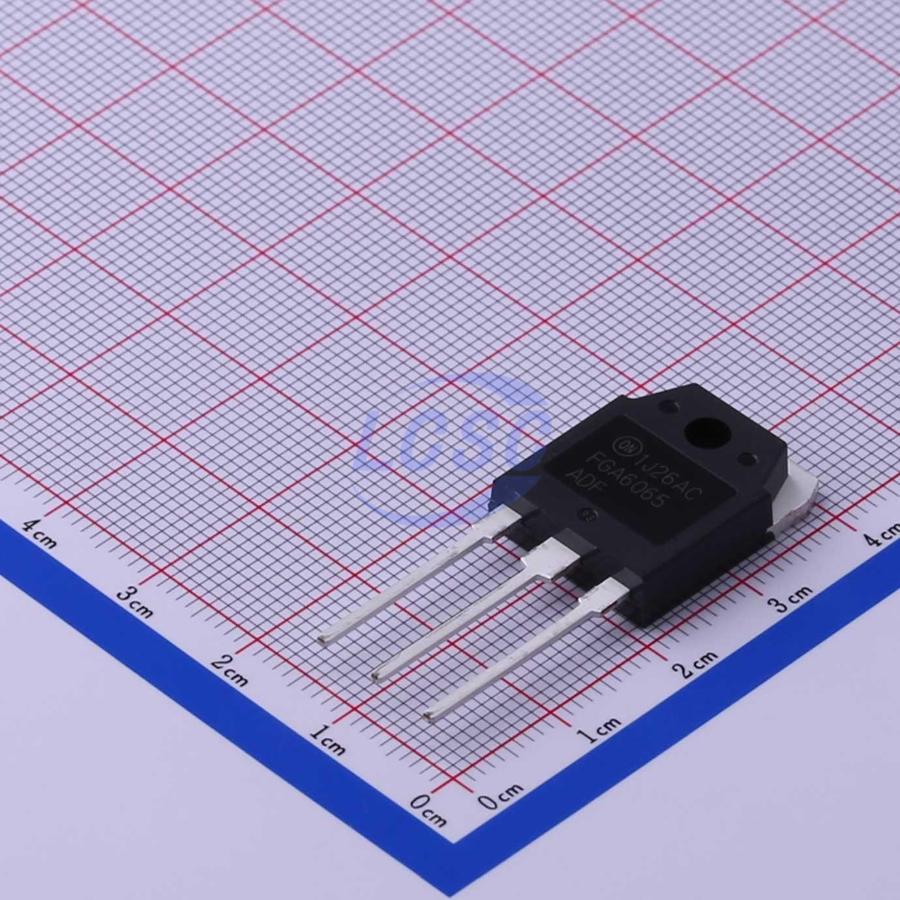

Manufacturer: onsemi
Mfr. Part #: FGA6065ADF
Part Number: C475764
Package: TO-3P-3
Description: 306W 120A 650V FS(Field Stop) TO-3P-3 IGBT Transistors / Modules ROHS
Delivers By: Friday, March 27, 2026 *
Out of stock
📦 Standard Packaging: 450/Piece
Products Specifications
Td(off)
71ns
Pd - Power Dissipation
306W
Td(on)
25.6ns
Current - Collector(Ic)
120A
Collector-Emitter Breakdown Voltage (Vces)
650V
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
2.3V@15V,60A
Gate Charge(Qg)
84nC
Reverse Recovery Time(trr)
110ns
Turn-On Energy (Eon)
2.46mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 450/Piece
