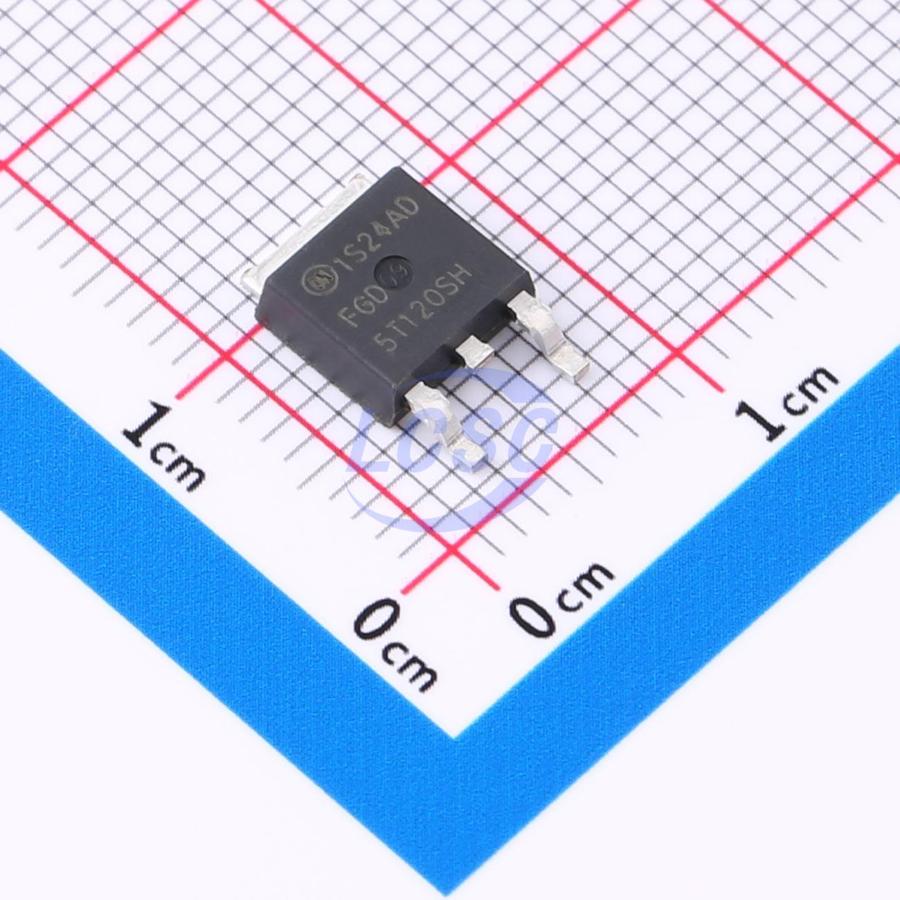

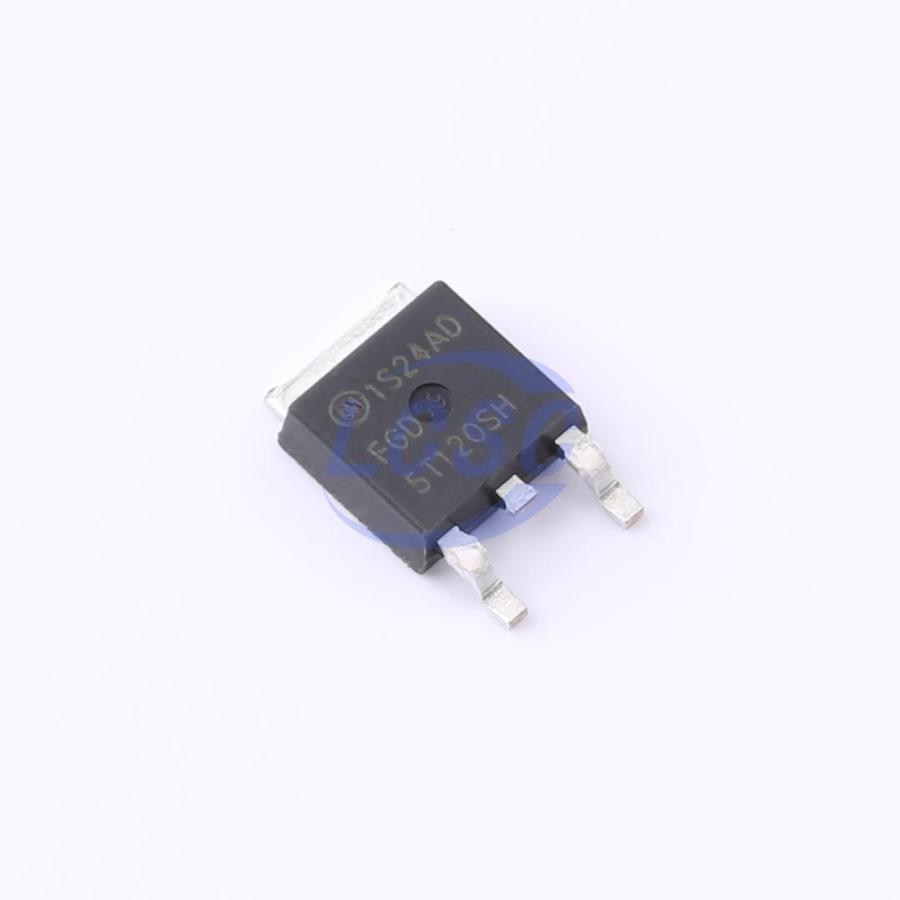

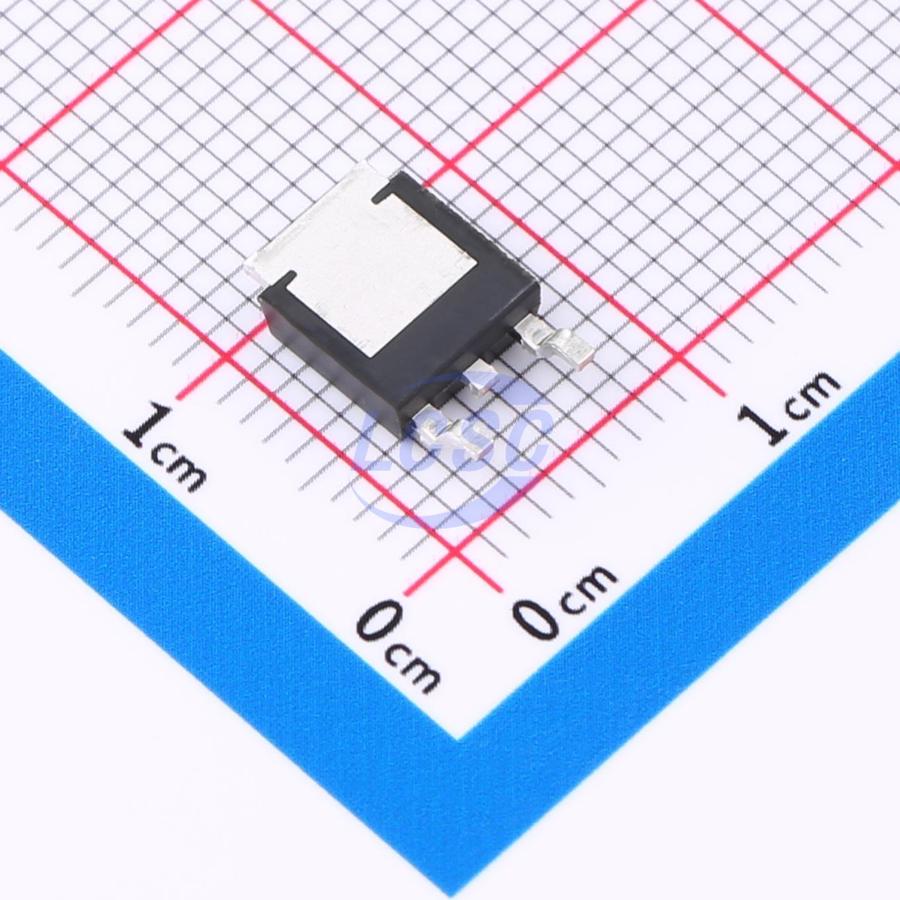

Manufacturer: onsemi
Mfr. Part #: FGD5T120SH
Part Number: C903665
Package: TO-252
Description: 69W 10A 1.2kV FS(Field Stop) TO-252 IGBT Transistors / Modules ROHS
Delivers By: Friday, March 27, 2026 *
Out of stock
📦 Standard Packaging: 2500/Piece
Products Specifications
Td(off)
24.8ns
Pd - Power Dissipation
69W
Td(on)
4.8ns
Operating Temperature
-55℃~+150℃@(Tj)
Current - Collector(Ic)
10A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
FS(Field Stop)
Gate Charge(Qg)
6.7nC
Switching Energy(Eoff)
94uJ
Turn-On Energy (Eon)
247uJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 2500/Piece
Related Resources
- Datasheet
- EasyEDA Model
