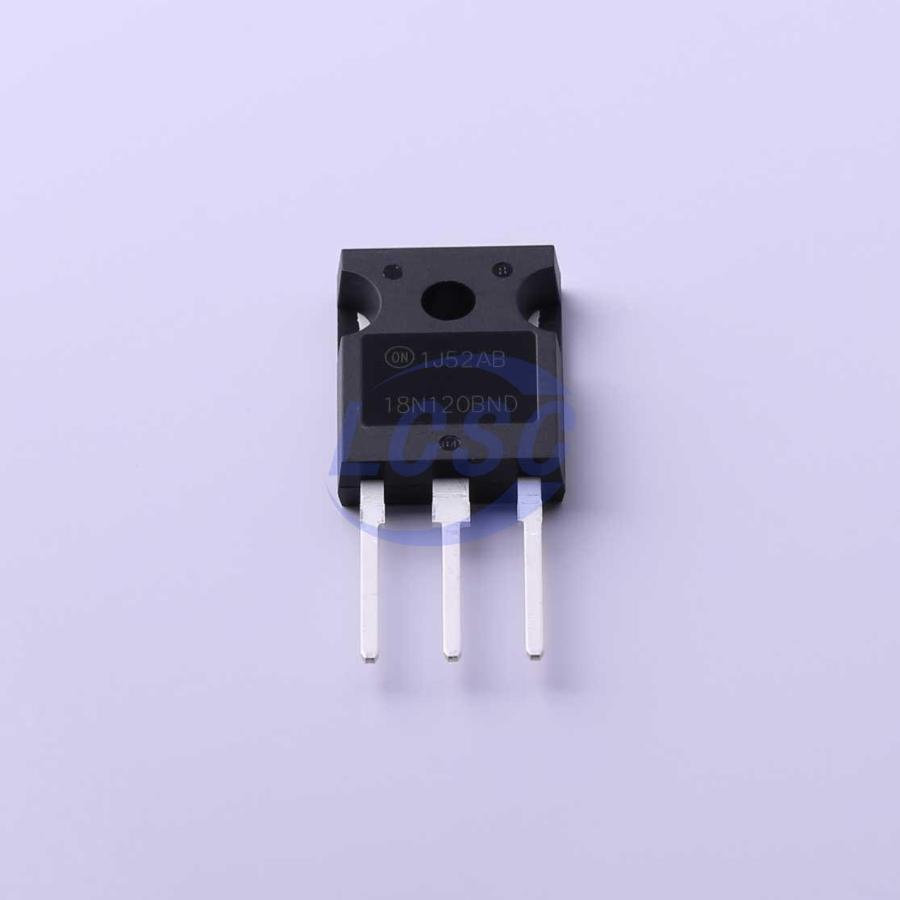

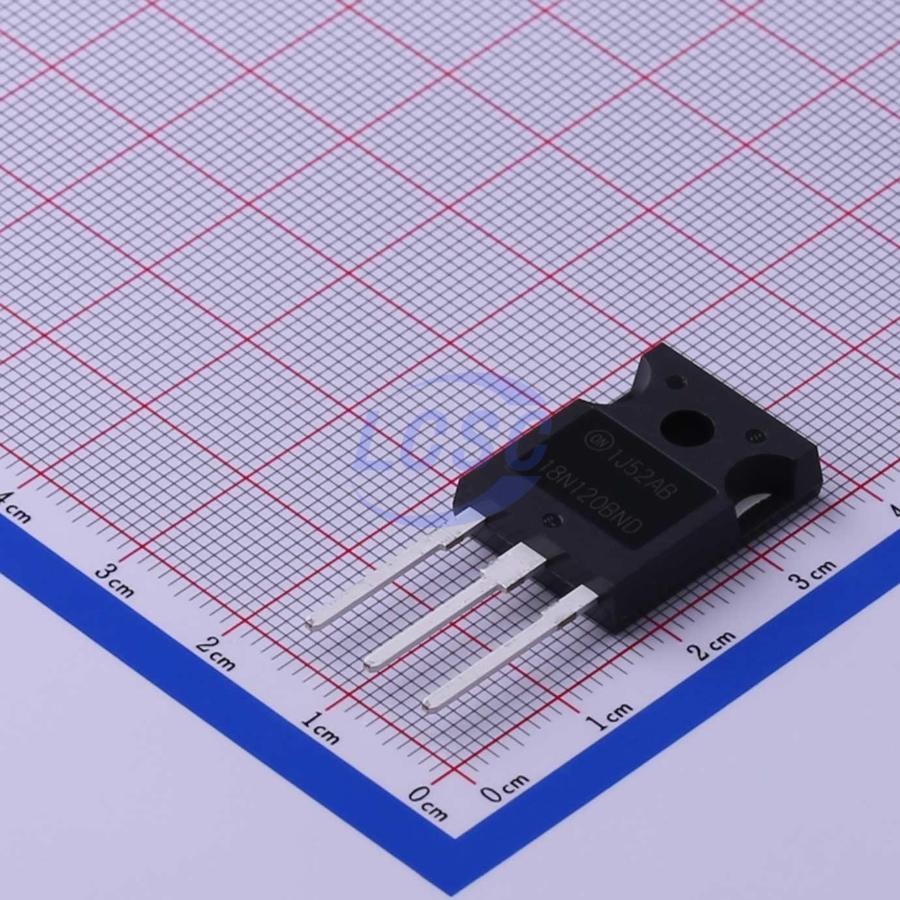

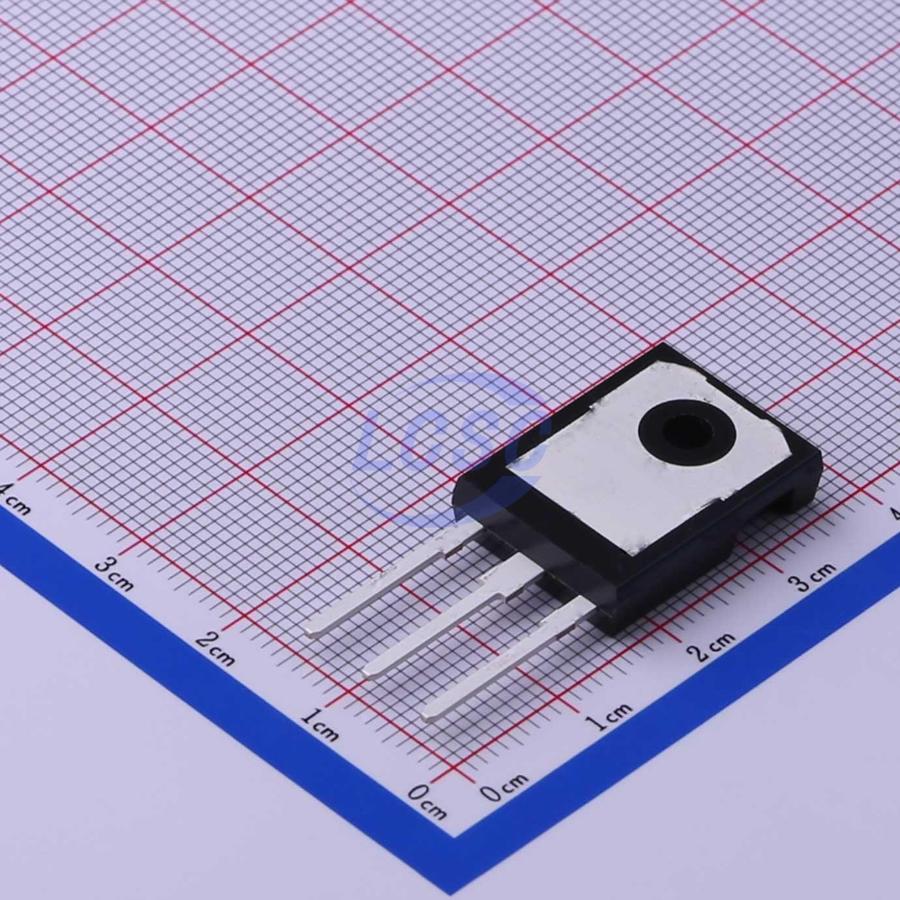

Manufacturer: onsemi
Mfr. Part #: HGTG18N120BND
Part Number: C462125
Package: TO-247-3
Description: 390W 54A 1.2kV NPT (non-penetrating type) TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Thursday, March 26, 2026 *
Out of stock
📦 Standard Packaging: 450/Piece
Products Specifications
Pd - Power Dissipation
390W
Td(off)
170ns
Td(on)
23ns
Current - Collector(Ic)
54A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
NPT (non-penetrating type)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
2.7V@15V,18A
Gate Charge(Qg)
165nC
Reverse Recovery Time(trr)
75ns
Switching Energy(Eoff)
1.8mJ
Turn-On Energy (Eon)
1.9mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 450/Piece
