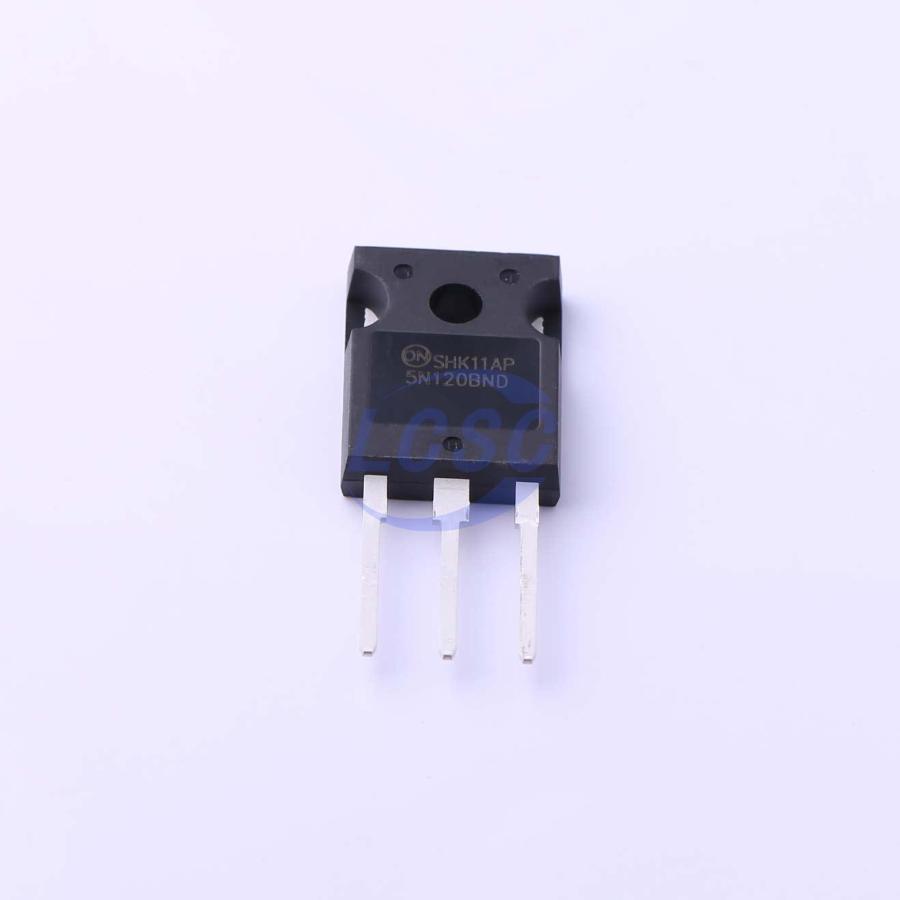

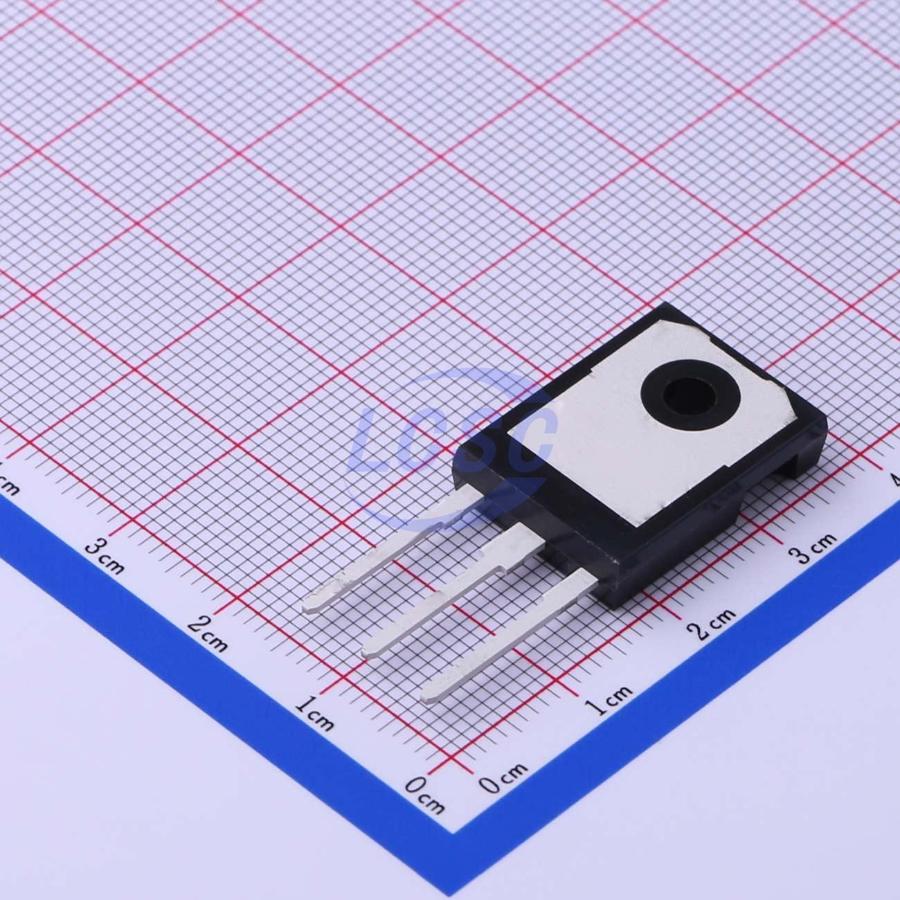

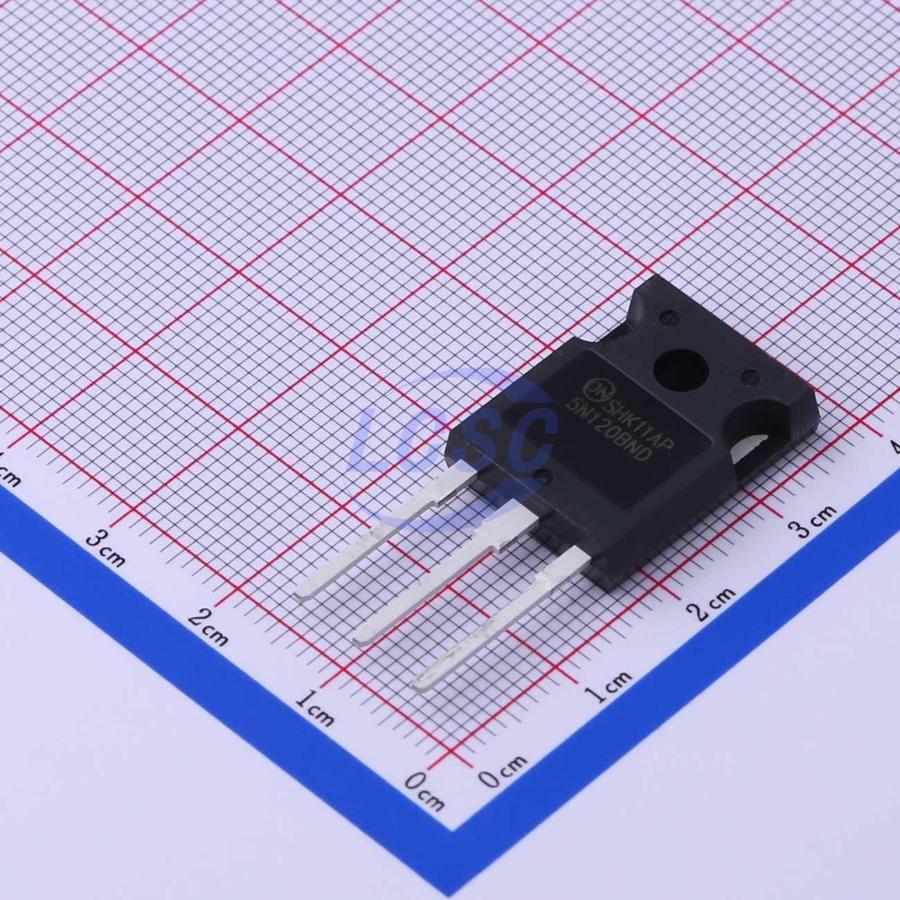

Manufacturer: onsemi
Mfr. Part #: HGTG5N120BND
Part Number: C442448
Package: TO-247-3
Description: 167W 21A 1.2kV NPT (non-penetrating type) TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Wednesday, March 25, 2026 *
Out of stock
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
160ns
Pd - Power Dissipation
167W
Td(on)
22ns
Operating Temperature
-55℃~+150℃@(Tj)
Current - Collector(Ic)
21A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
NPT (non-penetrating type)
Gate Charge(Qg)
53nC
Reverse Recovery Time(trr)
65ns
Switching Energy(Eoff)
390uJ
Turn-On Energy (Eon)
450uJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
Related Resources
- Datasheet
- EasyEDA Model
